Product Information :

Name :
Measurement - Light Arrays
Category :
  1. ไฟฟ้าและอิเล็กทรอนิกส์
Sub - Category :
  1. Datalogic Photoelectric Sensor
Brand :
Datalogic
Model :
DS1, DS2, DS3, S65-Z
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :

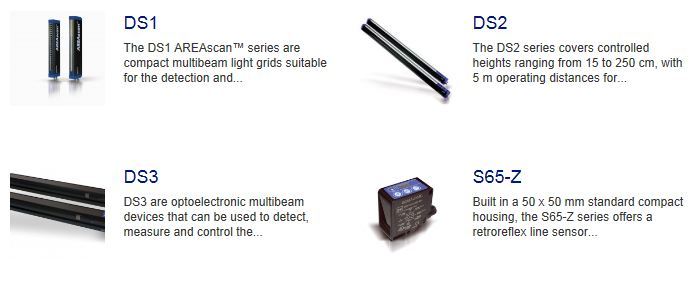

DS1 The DS1 AREAscan™ series are compact multibeam light grids suitable for the detection and... DS2 The DS2 series covers controlled heights ranging from 15 to 250 cm, with 5 m operating distances for... DS3 DS3 are optoelectronic multibeam devices that can be used to detect, measure and control the...View S65-Z Built in a 50 x 50 mm standard compact housing, the S65-Z series offers a retroreflex line sensor...

Product Detail :



Measurement - Light Arrays: DS1

Info

The DS1 AREAscan™ series are compact multibeam light grids suitable for the detection and measurement of objects with different shapes and dimensions. Different models are available with 100, 150 and 300 mm controlled height, 4 mm resolution and operating distance reaching 4 m. Versions with trimmer adjustment. The electronics is fully integrated and so no external drivers are required.

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Object dimension measurement
  • Shape or profile detection
  • Positioning, spacing, centering, stacking
  • Edge guiding
  • Object counting

Models

The product series offers the following models:

Ordering Codes

Description
957701120 DS1-LD-HR-010-JV LONG D HIGH RE H=100mm
957701130 DS1-LD-SR-010-JV LONG D STD RES H=100mm
957701140 DS1-LD-HR-015-JV LONG D HIGH RE H=150mm
957701150 DS1-LD-SR-015-JV LONG D STD RES H=150mm
957701160 DS1-LD-SR-030-JV LONG D STD RES H=300mm
957701170 DS1-SD-SR-010-JV SHORT D HIGH RE H=100mm
957701180 DS1-SD-SR-015-JV SHORT D HIGH RE H=150mm
957701190 DS1-SD-SR-030-JV SHORT D STD RES H=300mm
957701200 DS1-SD-HR-010-JV SHORT D STD RES H=100mm
957701210 DS1-SD-HR-015-JV SHORT D STD RES H=150mm
957701220 DS1-HD-SR-010-JV HIGH D STD RES H=100mm
957701230 DS1-HD-SR-015-JV HIGH D STD RES H=150mm
957701240 DS1-HD-SR-030-JV HIGH D STD RES H=300mm
957701250 DS1-HD-SR-010-JVA EXT LOW R H=100mm ADJ
957701260 DS1-HD-SR-015-JVA EXT LOW R H=150mm ADJ
957701270 DS1-HD-SR-030-JVA EXT LOW R H=300mm ADJ

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
DS1 areasensors datasheet e Datasheet 1 MB
DS1 areasensors datasheet i Datasheet 1 MB
DS1 areasensors manual rev D e Manuals 141 KB
DS1 areasensors manual rev D i Manuals 142 KB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
Product Guide Sensors Safet Measurementf Product Guides 2 MB



Measurement - Light Arrays: DS2

Info

The DS2 series covers controlled heights ranging from 15 to 250 cm, with 5 m operating distances for 6 mm resolution versions, or 10 m for 25 mm resolution versions. The measurement configuration can be set manually thanks to internal dip-switches, or using graphic interface from remote PC.
Both models with serial interface and ETHERNET protocol are available to transmits the measurement, the operating status control as well as the setting of the device

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Object detection and measurement on conveyor belt
  • Control of the correct material positioning (opaque and transparent) during functioning (plastic, metal, paper etc)
  • Loop control and positioning (also transparent material)
  • Detection of objects with different shapes in the food industry
  • Detection of objects in different positions (parallel beams)
  • Detection of slots and holes in different positions


Models

The product series offers the following models:

Ordering Codes

Description
957501000 DS2-05-07-060-JV LD HIGH RES H=600mm
957501010 DS2-05-07-090-JV LD HIGH RES H=900mm
957501020 DS2-05-07-120-JV LD HIGH RES H=1200mm
957501030 DS2-05-07-165-JV LD HIGH RES H=1650mm
957501040 DS2-05-07-015-JV LD HIGH RES H=150mm
957501050 DS2-05-07-030-JV LD HIGH RES H=300mm
957501060 DS2-05-07-045-JV LD HIGH RES H=450mm
957501070 DS2-05-07-075-JV LD HIGH RES H=750mm
957501080 DS2-05-07-105-JV LD HIGH RES H=1050mm
957501090 DS2-05-07-135-JV LD HIGH RES H=1350mm
957501100 DS2-05-07-150-JV LD HIGH RES H=1500mm
957501110 DS2-05-25-045-JV 25mm RES H=450mm
957501120 DS2-05-25-075-JV 25mm RES H=750mm
957501130 DS2-05-25-090-JV 25mm RES H=900mm
957501140 DS2-05-25-060-JV 25mm RES H=600mm
957501150 DS2-05-07-060-JE ETH HIGH RES H=600mm
957501160 DS2-05-07-075-JE ETH HIGH RES H=750mm
957501170 DS2-05-07-090-JE ETH HIGH RES H=900mm
957501180 DS2-05-07-120-JE ETH HIGH RES H=1200mm
957501190 DS2-05-07-150-JE ETH HIGH RES H=1500mm
957501200 DS2-05-07-165-JE ETH HIGH RES H=1650mm

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
DS2 areasensors datasheet i Datasheet 2 MB
DS2 areasensors manual rev E de Manuals 1 MB
DS2 areasensors manual rev E e Manuals 2 MB
DS2 areasensors manual rev E fr Manuals 1 MB
DS2 areasensors manual rev E i Manuals 1 MB
ds2 areasensors quickguide e Quick Manuals 53 KB
ds2 areasensors quickguide i Quick Manuals 55 KB
DS2 setup ethernet sw SW & Utilities 1 MB
DS2 setup standard sw SW & Utilities 2 MB
DS2ETH areasensors manual rev A e Manuals 1 MB
DS2ETH areasensors manual rev A i Manuals 1 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
Product Guide Sensors Safet Measurementf Product Guides 2 MB



Measurement - Light Arrays: DS3

Info

DS3 are optoelectronic multibeam devices that can be used to detect, measure and control the position of objects, also transparent and small.
Models with 150, 300, 450 or 600 mm detection field height are available, as well
as presenting 0.2 - 0.6 m or 0.6 - 1.5 m operating distances.
Internal dip-switches for configuration are available on all models, together with
the Teach-in setting button with Remote and self-calibration function

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Control of the correct material positioning (opaque and transparent) during functioning (plastic, metal, paper etc)
  • Detection of objects with different shapes in the food industry
  • Loop control and positioning (also transparent material
  • Detection of objects with different shapes in the food industry


Models

The product series offers the following models:

Ordering Codes

Description
957600100 DS3-SD-015 short distance
957600110 DS3-SD-030 short distance
957600120 DS3-LD-015 long distance
957600140 DS3-LD-030 long distance
957600150 DS3-SD-045 SHORT DISTANCE H=450mm
957600160 DS3-LD-045 LONG DISTANCE H=450mm
957600170 DS3-SD-060 SHORT DISTANCE H=600mm
957600180 DS3-LD-060 LONG DISTANCE H=600mm

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC1480 axial M12 4-pole shielded 3 m connector
95ACC1490 axial M12 4-pole shielded 5 m connector
95ACC1500 axial M12 4-pole shielded 10 m connector
95ACC1510 axial M12 8-pole shielded 3 m connector
95ACC1520 axial M12 8-pole shielded 5 m connector
95ACC1530 axial M12 8-pole shielded 10 m connector

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
DS3 areasensors datasheet e Datasheet 1 MB
DS3 areasensors datasheet f Datasheet 1,009 KB
DS3 areasensors datasheet g Datasheet 1 MB
DS3 areasensors datasheet i Datasheet 1 MB
DS3 areasensors manual rev G de Manuals 1 MB
DS3 areasensors manual rev G e Manuals 727 KB
DS3 areasensors manual rev G fr Manuals 1 MB
DS3 areasensors manual rev G i Manuals 764 KB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
Product Guide Sensors Safet Measurementf Product Guides 2 MB







Measurement - Light Arrays: S65-Z

Info

Built in a 50 x 50 mm standard compact housing, the S65-Z series offers a retroreflex line sensor for accurate measurements of the centre or edge position and width of objects. The detection is made on a reflecting tape, positioned behind the object, with a 150 mm maximum measurement field width and a 200 mm operating distance. Models with digital output, PNP or NPN, or with serial RS485 all provided with 4-20 mA analogue output proportional to the measurement

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Accurate measures of centre of the object;
  • Accurate measure of edges of objects;
  • Accurate measures of width of objects;

Models

The product series offers the following models:

Ordering Codes

Description
956251040 S65-PA-5-Z03-PPI line 4-20mA M12
956251050 S65-PA-5-Z03-NNI line 4-20mA M12
956251060 S65-PA-5-Z03-PPIZ line 4-20mA RS485 M12
956251070 S65-PA-5-Z03-NNIZ line 4-20mA RS485 M12

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC5330 fixing bracket 50 x 27 x 20 mm
95ACC5340 fixing bracket
95ACC2290 self-adhesive reflective tape 25 x 900 mm
95ACC2390 20x175 mm reflector with 47x190 mm support
  Refer also to Accessories for Sensors
95ACC2230 M12 8-pole unshielded axial 3 m connector
95ACC2240 M12 8-pole unshielded axial 5 m connector
95ACC2250 M12 8-pole unshielded axial 10 m connector

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
Product Guide Sensors Safet Measurementf Product Guides 2 MB
S65-Z linesensors datasheet e Datasheet 788 KB
S65-Z linesensors datasheet f Datasheet 782 KB
S65-Z linesensors datasheet g Datasheet 789 KB
S65-Z linesensors datasheet i Datasheet 783 KB
S65Z linesensors manual rev E de Manuals 328 KB
S65Z linesensors manual rev E e Manuals 326 KB
S65Z linesensors manual rev E fr Manuals 332 KB
S65Z linesensors manual rev E i Manuals 320 KB
