Miniature Sensor
Category :
  1. ไฟฟ้าและอิเล็กทรอนิกส์
Sub - Category :
  1. Datalogic Photoelectric Sensor
Brand :
Datalogic
Model :
S8 INOX, S8 SHINY, S3Z, S8, Small, S41, S40, S3
Product Type :
  1. สินค้า, ผลิตภัณฑ์

Product Detail :

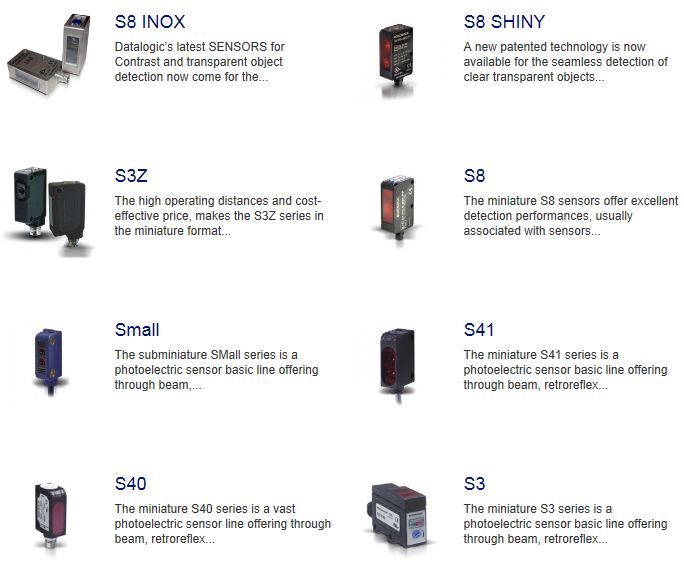

S8 INOX

Info

The sensors have been designed for frequent wash downs with a corrosion-resistant AISI316L stainless steel case which is IP69K rated.
The contrast version is the ideal solution to discriminate fine contrast differences known as print registration marks at very high speeds whilst the clear object polarized retro has been designed to resist typical detection difficulties associated with accurately detecting the position of extremely transparent objects typically seen in the FOOD and BEVERAGE and PHARMACEUTICAL industries.

One for ALL concept means one shape with standard fi xing holes with models suitable for solving virtually any application, allowing both the OEM and END USER to reduce and standardize the components used giving a real advantage in the development of their automated machines and production lines.

Features & Benefits

W model
• Discriminates fi ne contrast differences with RGB emission (intelligently selects red, green or blue emission to give maximum discrimination)
• High speed detection at 50
• Coaxial optical system design provides stable detection of moving objects to eliminate false detections
• IP69K degree of protection with AISI316L stainless steel housing resists the effects of detergents, disinfectants and high-temperature, high-pressure wash down

T model
• Detects extremely transparent materials like fine plastic fi lms, glass or PET bottles
• Coaxial optical system design provides stable detection of moving objects to eliminate false detections
• Auto-adaptive function to improve the reliability the detection even when the sensor face or refl ector is contaminated
• IP69K degree of protection with AISI316L stainless steel housing resists the effects of detergents, disinfectants and high-temperature, high-pressure wash down

Applications

• Food and Pharma
• Beverage and Bottling
• Packing lines

Models

The product series offers the following models:

Ordering Codes

Description
950801300 S8-MR-5-T53-PP
950801310 S8-MR-5-T53-NN
950801320 S8-MR-5-T50-PH
950801330 S8-MR-5-T50-NH
950801340 S8-MR-5-W03-PP
950801350 S8-MR-5-W03-NN
950801360 S8-MR-5-W00-PH
950801370 S8-MR-5-W00-NH

Accessories

The product series offers the following accessories:

Ordering Codes

Description
95ACC1470 ST-5072
95A151220 R4K

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
S8 inox datasheet d Datasheet 503 KB
S8 inox datasheet e Datasheet 1 MB
S8 INOX LASER miniaturesensors manual Rev00 eng Manuals 183 KB
S8 INOX LASER miniaturesensors manual Rev00 ita Manuals 179 KB
S8 INOX LED miniaturesensors manual Rev00 deu Manuals 158 KB
S8 INOX LED miniaturesensors manual Rev00 eng Manuals 159 KB
S8 INOX LED miniaturesensors manual Rev00 fra Manuals 162 KB


S8 Shiny

Info

A new patented technology is now available for the seamless detection of
clear transparent objects by means of a photoelectric sensor with background suppression optic function. Glass or plastic clear objects such as
bottles, vials, packaging films, etc. can be easily detected in diffuse mode even in presence of shiny and reflective backgrounds. This breakthrough
technology offers many improvements with respect to previous systems based on polarized retro-reflex photoelectric or even ultrasonic sensors:

  • No prismatic reflector: no need to have the clear object passing between sensor and reflector therefore reducing installation time and costs.
  • Less mechanical constraints: the detection can be made from either the side or from the top with no need to screen or modify any metal parts of the machine.
  • Highest depth of field: the clear object can move or float in any position between its background and the sensor without any need to adjust the detection threshold.
Take a look at the S8 presentation

Features & Benefits

  • 50 to 150mm operating range with fine mechanical adjustment
  • High resolution
  • Bright visible red Laser light emission with 5mm spot at maximum distance
  • Fast response time: 1ms with a switching frequency of 500Hz.

Applications

This product series has been developed to satisfy to requirements of the following reference applications:

  • Food & Pharma
  • Beverage & Bottling
  • Packaging lines
Do you want to know more?
Take a look at our white paper!

Models

The product series offers the following models:

Ordering Codes

Description
950801380 S8-PH-5-M53-PP BGS Shiny clear laser 15 cm

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC1470 ST-5072 fixing bracket

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
S8M53 miniaturesensors manual revA Manuals 411 KB
S8M53 miniaturesensors manual revA eng Manuals 416 KB
S8M53_SHINY miniaturesensors datasheet e.pdf Datasheet 1 MB



S3Z

Info

The high operating distances and cost-effective price, makes the S3Z series in the miniature format with dimensions and standard fi xing affirmed in the market, in particular in Far-East.

Different models are available: 15m through beam, 4m polarised retrorefl ex, 2m polarized for transparent, 70 cm diffuse proximity, narrow beam from 50 to 150mm and 5 to 30cm background suppression model with multi-turn mechanical trimmer setting.

Also available LASER models class I: 30m through beam, 10m polarised retrorefl ex and 40 to 300mm background suppression.

Versions with NPN or PNP output, with dark or light operating mode and with cable or M8 connection are available. The plastic housing is completely overprinted, guaranteeing maximum mechanical protection also in presence of frequent washing.

Features & Benefits

• Complete range of optic function LED or LASER emission
• 2m polarized for transparent detection
• 40-300 mm background suppression with both LASER or LED technology emission
• 1m long diffused, 15 cm diffused narrow beam
• 4 m polarised retrorefl ex or 10m LASER model
• 15 m through beam or 30m Laser model
• Standard 3 wire output confi guration
• IP67 mechanical protection
• Interference prevention allows two units to be mounted side by side

Applications

This product series has been developed to satisfy to requirements of the following reference applications:

  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Automatic warehouses

Models

The product series offers the following models:

Ordering Codes

Description
95B010000 S3Z-PR-2-C11-PL DIF-PROX PNP LIGHT CABLE
95B010010 S3Z-PR-5-C11-PL DIF-PROX PNP LIGHT CONN
95B010020 S3Z-PR-2-C11-PD DIF-PROX PNP DARK CABLE
95B010030 S3Z-PR-5-C11-PD DIF-PROX PNP DARK CONN
95B010040 S3Z-PR-2-C01-PL FOC PROX PNP LIGHT CABLE
95B010050 S3Z-PR-5-C01-PL FOC PROX PNP LIGHT CONN
95B010060 S3Z-PR-2-C01-PD FOC PROX PNP DARK CABLE
95B010070 S3Z-PR-5-C01-PD FOC PROX PNP DARK CONN
95B010080 S3Z-PR-2-B01-PL RRX-POL PNP LIGHT CABLE
95B010090 S3Z-PR-5-B01-PL RRX-POL PNP LIGHT CONN
95B010100 S3Z-PR-2-B01-PD RRX-POL PNP DARK CABLE
95B010110 S3Z-PR-5-B01-PD RRX-POL PNP DARK CONN
95B010120 S3Z-PR-2-FG01-PL RX/TX PNP LIGHT CABLE
95B010130 S3Z-PR-5-FG01-PL RX/TX PNP LIGHT CONN
95B010140 S3Z-PR-2-FG01-PD RX/TX PNP DARK CABLE
95B010150 S3Z-PR-5-FG01-PD RX/TX PNP DARK CONN
95B010160 S3Z-PR-2-C11-NL DIF-PROX NPN LIGHT CABLE
95B010170 S3Z-PR-5-C11-NL DIF-PROX NPN LIGHT CONN
95B010180 S3Z-PR-2-C11-ND DIF-PROX NPN DARK CABLE
95B010190 S3Z-PR-5-C11-ND DIF-PROX NPN DARK CONN
95B010200 S3Z-PR-2-C01-NL FOC PROX NPN LIGHT CABLE
95B010210 S3Z-PR-5-C01-NL FOC PROX NPN LIGHT CONN
95B010220 S3Z-PR-2-C01-ND FOC PROX NPN DARK CABLE
95B010230 S3Z-PR-5-C01-ND FOC PROX NPN DARK CONN
95B010240 S3Z-PR-2-B01-NL RRX-POL NPN LIGHT CABLE
95B010250 S3Z-PR-5-B01-NL RRX-POL NPN LIGHT CONN
95B010260 S3Z-PR-2-B01-ND RRX-POL NPN DARK CABLE
95B010270 S3Z-PR-5-B01-ND RRX-POL NPN DARK CONN
95B010280 S3Z-PR-2-FG01-NL RX/TX NPN LIGHT CABLE
95B010290 S3Z-PR-5-FG01-NL RX/TX NPN LIGHT CONN
95B010300 S3Z-PR-2-FG01-ND RX/TX NPN DARK CABLE
95B010310 S3Z-PR-5-FG01-ND RX/TX NPN DARK CONN
95B010320 S3Z-PR-2-M01-NL BGD-SUPP NPN LIGHT CABLE
95B010330 S3Z-PR-2-M01-PL BGD-SUPP PNP LIGHT CABLE
95B010340 S3Z-PR-5-M01-NL BGD-SUPP NPN LIGHT CONN
95B010350 S3Z-PR-5-M01-PL BGD-SUPP PNP LIGHT CONN
95B010390 S3Z-PR-2-T51-ND RRX TRANSP NPN DARK CABL
95B010380 S3Z-PR-2-T51-PD RRX TRANSP PNP DARK CABL
95B010370 S3Z-PR-5-T51-ND RRX TRANSP NPN DARK M8
95B010360 S3Z-PR-5-T51-PD RRX TRANSP PNP DARK M8
95B010440 S3Z-PH-2-B01-PP PNP DARK LIGHT
95B010460 S3Z-PH-5-B01-PP PNP DARK LIGHT
95B010450 S3Z-PH-2-B01-NN NPN DARK LIGHT
95B010470 S3Z-PH-5-B01-NN NPN DARK LIGHT
95B010480 S3Z-PH-2-M01-PP PNP DARK LIGHT
95B010500 S3Z-PH-5-M01-PP PNP DARK LIGHT
95B010490 S3Z-PH-2-M01-NN NPN DARK LIGHT
95B010510 S3Z-PH-5-M01-NN NPN DARK LIGHT
95B010520 S3Z-PH-2-FG01-PP PNP DARK LIGHT
95B010540 S3Z-PH-5-FG01-PP PNP DARK LIGHT
95B010530 S3Z-PH-2-FG01-NN NPN DARK LIGHT
95B010550 S3Z-PH-5-FG01-NN NPN DARK LIGHT

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC2270 ST-5039 L-SHAPE BRACKET S3Z
95ACC2280 ST-5040 PROTECTIVE BRACKET S3Z
95ACC2370 ST-5046 2-SIDES PROTECTIVE BRACKET S3Z
95ACC2470 S3Z-SLIT1Ø 0,5 mm slit for thourgh beam
95ACC2480 S3Z-SLIT2 Ø 1 mm slit for thourgh beam
95ACC2490 S3Z-SLIT3 Ø 2 mm slit for thourgh beam
95ACC2500 S3Z-SLIT4 0,5x18 mm slit for thourgh bea
95ACC2510 S3Z-SLIT5 1x18 mm slit for thourgh beam
95ACC2520 S3Z-SLIT6 2x18 mm slit for thourgh beam

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
S3Z Laser miniaturesensors manual rev00 eng Manuals 91 KB
S3Z Laser miniaturesensors manual rev00 it Manuals 91 KB
S3Z miniaturesensors datasheet e Datasheet 3 MB
S3Z miniaturesensors datasheet i Datasheet 3 MB
S3Z miniaturesensors manual rev C e Manuals 54 KB
S3Z miniaturesensors manual rev C i Manuals 54 KB





S8

Info

The miniature S8 sensors offer excellent detection performances, usually associated with sensors that have larger dimensions and higher prices. The S8 series is able to solve the most critical sensor applications, a solution for packaging lines, food and beverage industries, automotive, test and assembling machines and electronic plants. Laser models with coaxial polarized retroreflex and background suppression are available. Base models with LED emission are also offered featuring polarized retroreflex, diffuse proximity, background suppression, coaxial polarized retroreflex for transparents and RGB contrast sensors.

Features & Benefits

  • Wide range: suitable for all the industrial applications
  • Laser models: high detection repeatability for a precise reading
  • Pig-tail M12 4-pole or M8 4-pole connection: flexible connection system to meet customer applications

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Packaging lines
  • Wrapping machines
  • Bottling transportation lines
  • Automotive industry
  • Electronics & solar industry

Models

The product series offers the following models:

Ordering Codes

Description
950801000 S8-PH-5-B51-PP RRX Laser 10m, PNP, M8
950801010 S8-PH-5-B51-NN RRX Laser 10m, NPN, M8
950801020 S8-PH-5-M01-PP BGS Laser 20cm, PNP, M8
950801030 S8-PH-5-M01-NN BGS Laser 20cm, NPN, M8
950801040 S8-PR-5-T51-PP RRX, TRA, 1m, PNP, M8
950801050 S8-PR-5-T51-NN RRX, TRA, 1m, NPN, M8
950801060 S8-PR-5-W03-PP CONTRAST, RGB, PNP, M8
950801070 S8-PR-5-W03-NN CONTRAST, RGB, NPN, M8
950801080 S8-PH-3-B51-PP RRX Laser 10m, PNP, pig-tail M12
950801090 S8-PH-3-B51-NN RRX Laser 10m, NPN, pig-tail M12
950801100 S8-PH-3-M01-PP BGS Laser 20cm, PNP, pig-tail M12
950801110 S8-PH-3-M01-NN BGS Laser 20cm, pig-tail M12
950801120 S8-PR-3-T51-PP RRX, TRA, 1m, PNP, pig-tail M12
950801130 S8-PR-3-T51-NN RRX, TRA, 1m, NPN, pig-tail M12
950801140 S8-PR-3-W03-PP CONTRAST, RGB, PNP, pig-tail M12
950801150 S8-PR-3-W03-NN CONTRAST, RGB, NPN pig-tail M12
950801160 S8-PR-5-B01-PP LED RRX 5M, PNP, M8
950801170 S8-PR-5-B01-NN LED RRX 5M, NPN, M8
950801180 S8-PR-3-B01-PP LED RRX 5M, PNP, PIG-T. M12
950801190 S8-PR-3-B01-NN LED RRX 5M, NPN, PIG-T. M12
950801200 S8-PR-5-M01-PP LED BGS 30CM, PNP, M8
950801210 S8-PR-5-M01-NN LED BGS 30CM, NPN, M8
950801220 S8-PR-3-M01-PP LED BGS 30CM, PNP, PIG-T. M12
950801230 S8-PR-3-M01-NN LED BGS 30CM, NPN, PIG-T. M12
950801240 S8-PR-5-C01-PP LED PROX 45CM PNP M8
950801260 S8-PR-5-C01-NN LED PROX 45CM NPN M8
950801250 S8-PR-3-C01-PP LED PROX 45CM PNP PIG M12
950801270 S8-PR-3-C01-NN LED PROX 45CM NPN PIG M12
950801280 S8-PR-5-T53-PP RRX TRA 2M PNP M8 AUTO
950801290 S8-PR-5-T53-NN RRX TRA 2M NPN M8 AUTO

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC1470 ST-5072 FIXING BRAKET S8

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
S8 miniaturesensors datasheet e.pdf Datasheet 2 MB
S8 miniaturesensors datasheet f Datasheet 131 KB
S8 miniaturesensors datasheet g Datasheet 196 KB
S8 miniaturesensors datasheet i.pdf Datasheet 2 MB
S8 miniaturesensors leaflet e Leaflets 1 MB
S8 miniaturesensors leaflet f Leaflets 1 MB
S8 miniaturesensors leaflet g Leaflets 3 MB
S8 miniaturesensors leaflet i Leaflets 1 MB
S8 miniaturesensors leaflet s Leaflets 1 MB
S8 sensors iges 2D/3D/IGES 6 MB
S8-W M8 miniaturesensors iges 2D/3D/IGES 3 MB
S8-W Pigtail miniaturesensors iges 2D/3D/IGES 3 MB
S8LB miniaturesensors manual rev D de Manuals 152 KB
S8LB miniaturesensors manual rev D e Manuals 185 KB
S8LB miniaturesensors manual rev D fr Manuals 153 KB
S8LB miniaturesensors manual rev D it Manuals 150 KB
S8LED miniaturesensors manual revC deu Manuals 188 KB
S8LED miniaturesensors manual revC eng Manuals 190 KB
S8LED miniaturesensors manual revC fra Manuals 188 KB
S8LED miniaturesensors manual revC ita Manuals 188 KB
S8LM miniaturesensors manual revD deu Manuals 210 KB
S8LM miniaturesensors manual revD eng Manuals 308 KB
S8LM miniaturesensors manual revD fra Manuals 214 KB
S8LM miniaturesensors manual revD ita Manuals 225 KB
S8T53 miniaturesensors manual rev B de Manuals 492 KB
S8T53 miniaturesensors manual rev B e Manuals 488 KB
S8T53 miniaturesensors manual rev B fr Manuals 492 KB
S8T53 miniaturesensors manual rev B i Manuals 492 KB
S8WT miniaturesensors manual rev E de Manuals 133 KB
S8WT miniaturesensors manual rev E e Manuals 136 KB
S8WT miniaturesensors manual rev E fr Manuals 141 KB
S8WT miniaturesensors manual rev E i Manuals 133 KB




Small

Info

The subminiature SMall series is a photoelectric sensor basic line offering through beam, retroreflex polarized and accurate fixed focus proximity models able to guarantee very precise detection, with red LED emission to simplify installation procedures, suitable for applications with reduced spaces.

Features & Benefits

  • Good reading performance: high detection repeatability especially for the fixed focus models
  • Basic line: suitable for the main industrial applications
  • Miniature housing: suitable for applications with reduced space

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Automatic warehouses

Models

The product series offers the following models:

Ordering Codes

Description
95B000000 SM-PR-2-D30-PP FOC-PROX 50MM PNP CABLE
95B000010 SM-PR-2-D30-NN FOC-PROX 50MM NPN CABLE
95B000020 SM-PR-2-D00-PP FOC-PROX 15MM PNP CABLE
95B000030 SM-PR-2-D00-NN FOC-PROX 15MM NPN CABLE
95B000040 SM-PR-2-D20-PP FOC-PROX 30MM PNP CABLE
95B000050 SM-PR-2-D20-NN FOC-PROX 30MM NPN CABLE
95B000060 SM-PR-2-A00-PP RRX 1,5M PNP CABLE
95B000070 SM-PR-2-A00-NN RRX 1,5M NPN CABLE
95B000080 SM-PR-2-B00-PP RRX-POL 1M PNP CABLE
95B000090 SM-PR-2-B00-NN RRX-POL 1M NPN CABLE
95B000120 SM-PR-2-F00-PP RECEIVER 2M PNP CABLE
95B000130 SM-PR-2-F00-NN RECEIVER 2M NPN CABLE
95B000140 SM-PR-2-D10-PP FOC-PROX 20MM PNP CABLE
95B000150 SM-PR-2-D10-NN FOC-PROX 20MM NPN CABLE
95B000160 SM-PR-2-G00-XG EMITTER 2M CABLE

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC6650 ST-5049 RIGHT ANGLE BRACKET SM

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
SMall miniaturesensors manual rev B eng ita Manuals 74 KB
SMALL submiminiaturesensors datasheet e Datasheet 116 KB
SMALL submiminiaturesensors datasheet f Datasheet 107 KB
SMALL submiminiaturesensors datasheet g Datasheet 108 KB
SMALL submiminiaturesensors datasheet i Datasheet 106 KB


S41

Info

The miniature S41 series is a photoelectric sensor basic line offering through beam, retroreflex polarized and proximity models with both red or IR LED emission, also available with or without trimmer adjustment and M8 4-poles or 2m cable connection.

Features & Benefits

  • Performance/price ratio: most cost-effective detection solution
  • Basic line: suitable for the main industrial applications
  • Cable or M8 4-pole connection: flexible connection system able to meet customer applications

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Automatic warehouses

Models

The product series offers the following models:

Ordering Codes

Description
950701000 S41-2-B-P RRX POL 2,5m PNP NO-NC CABLE
950701010 S41-2-C-P DIFFUSE 35cm PNP NO-NC CABLE
950701020 S41-2-D-P FOC-PROXI 10cmPNP NO-NC CABLE
950701030 S41-2-F-P RECEIVER 6m PNP NO-NC CABLE
950701040 S41-2-G EMITTER 6m CABLE 10-30Vdc
950701045 S41-2-H NARROW-BEAM CABLE
950701050 S41-5-B-P RRX POL 2,5m PNP NO-NC M8
950701060 S41-5-C-P DIFFUSE 35cm PNP NO-NC M8
950701070 S41-5-D-P FOC-PROXI 10cmPNP NO-NC M8
950701080 S41-5-F-P RECEIVER 6m PNP NO-NC M8
950701090 S41-5-G EMITTER 6m CONN M8 10-30Vdc
950701095 S41-5-H NARROW-BEAM CONN M8
950701100 S41-2-P-P RRX POL 2,5M PNP NO-NC CABLE
950701110 S41-5-P-P RRX POL 2,5M PNP NO-NC M8
950701120 S41-5-C-N DIFFUSE 35cm NPN NO-NC M8
950701130 S41-2-T-P RRX-TRANS 80cmPNP NO-NC CABLE
950701140 S41-5-T-P RRX-TRANS 80cmPNP NO-NC M8
950701150 S41-2-B-N RRX POL 2,5m NPN NO-NC CABLE
950701160 S41-2-C-N DIFFUSE 35cm NPN NO-NC CABLE
950701170 S41-2-D-N FOC-PROXI 10cmNPN NO-NC CABLE
950701180 S41-2-F-N RECEIVER 6m NPN NO-NC CABLE
950701190 S41-2-P-N RRX POL 2,5M NPN NO-NC CABLE
950701200 S41-2-T-N RRX-TRANS 80cmNPN NO-NC CABLE
950701210 S41-5-B-N RRX POL 2,5m NPN NO-NC M8
950701230 S41-5-D-N FOC-PROXI 10cmNPN NO-NC M8
950701240 S41-5-F-N RECEIVER 6m NPN NO-NC M8
950701250 S41-5-P-N RRX POL 2,5M NPN NO-NC M8
950701260 S41-5-T-N RRX-TRANS 80cmNPN NO-NC M8

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC1300 ST-505 fixing bracket S3/40/41/TEN/TEC

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
S41 miniaturesensors datasheet e Datasheet 90 KB
S41 miniaturesensors datasheet f Datasheet 87 KB
S41 miniaturesensors datasheet g Datasheet 92 KB
S41 miniaturesensors datasheet i Datasheet 86 KB
S41 miniaturesensors manual rev F de Manuals 49 KB
S41 miniaturesensors manual rev F e Manuals 49 KB
S41 miniaturesensors manual rev F fr Manuals 49 KB
S41 miniaturesensors manual rev F i Manuals 49 KB



S40

Info

The miniature S40 series is a vast photoelectric sensor line offering through beam, retroreflex polarized and proximity models with both red LED and red laser emission, teach-in setting available also in a REMOTE mode, laser models are able to guarantee high repeatability of detection due to a very collimated spot associated with high switching frequency.

Features & Benefits

  • Wide range: suitable for all the industrial applications
  • Laser models: high detection repeatability for a precise reading
  • Cable or M8 4-pole connection: flexible connection system able to meet customer applications

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Automatic warehouses

Models

The product series offers the following models:

Ordering Codes

Description
950401240 S40-PH-5-B03-NH laser rrx-pol npn no M8
950401250 S40-PH-5-B03-PH laser rrx-pol pnp no M8
950401260 S40-PH-5-C03-NH laser dif-prox npn no M8
950401270 S40-PH-5-C03-PH laser dif-prox pnp no M8
950401280 S40-PH-5-M03-NH laser bgd-supp npn no M8
950401290 S40-PH-5-M03-PH laser bgd-supp pnp no M8
950401300 S40-PR-2-B03-PH rrx-pol pnp no cable
950401310 S40-PR-2-C03-PH dif-prox pnp no cable
950401320 S40-PR-2-M03-PH bgd-supp pnp no cable
950401330 S40-PR-2-A03-PH rrx pnp no cable
950401340 S40-PR-2-FG3-PH thru beam pnp cable
950401350 S40-PR-2-T03-PH rrx-tran pnp no cable
950401360 S40-PR-2-B03-NH rrx-pol npn no cable
950401370 S40-PR-2-C03-NH dif-prox npn no cable
950401380 S40-PR-2-M03-NH bgd-supp npn no cable
950401390 S40-PR-2-A03-NH rrx npn no cable
950401400 S40-PR-2-FG3-NH thru beam npn cable
950401410 S40-PR-2-T03-NH rrx-tran npn no cable
950401420 S40-PR-5-B03-PH rrx-pol pnp no M8
950401430 S40-PR-5-C03-PH dif-prox pnp no M8
950401440 S40-PR-5-M03-PH bgd-supp pnp no M8
950401450 S40-PR-5-A03-PH rrx pnp no M8
950401460 S40-PR-5-FG3-PH thru beam pnp M8
950401470 S40-PR-5-T03-PH rrx-tran pnp no M8
950401480 S40-PR-5-B03-NH rrx-pol npn no M8
950401490 S40-PR-5-C03-NH dif-prox npn no M8
950401500 S40-PR-5-M03-NH bgd-supp npn no M8
950401510 S40-PR-5-A03-NH rrx npn no M8
950401520 S40-PR-5-FG3-NH thru beam npn M8
950401530 S40-PR-5-T03-NH rrx-tran npn no M8
950401540 S40-PH-2-M03-PH laser bgd-supp pnp cable

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC1300 ST-505 fixing bracket S3/40/41/TEN/TEC

Download

Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
S40 miniaturesensors datasheet e Datasheet 110 KB
S40 miniaturesensors datasheet f Datasheet 111 KB
S40 miniaturesensors datasheet g Datasheet 108 KB
S40 miniaturesensors datasheet i Datasheet 110 KB
S40 miniaturesensors manual rev B e Manuals 45 KB
S40 miniaturesensors manual rev B i Manuals 46 KB
S40PH-B03 miniaturesensors manual rev C e Manuals 83 KB
S40PH-B03 miniaturesensors manual rev C i Manuals 82 KB
S40PH-C03 miniaturesensors manual rev C e Manuals 85 KB
S40PH-C03 miniaturesensors manual rev C i Manuals 88 KB
S40PH-M03 miniaturesensors manual rev C e Manuals 78 KB
S40PH-M03 miniaturesensors manual rev C i Manuals 78 KB





S3

Info

The miniature S3 series is a photoelectric sensor basic line offering through beam, retroreflex polarized and proximity models with both red or IR LED emission, also available in radial or axial version with trimmer adjustment, M8 4-pole or 2m cable connection.

Features & Benefits

  • Basic line: suitable for the main industrial applications
  • Radial or axial optic: adaptability to the mechanical part of the plant
  • Cable or M8 4-pole connection: flexible connection system to meet customer applications

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Automatic warehouses

Models

The product series offers the following models:

Ordering Codes

Description
S936130000 S3-S-G5 EMITTER
S936130001 S3-R-G5 EMITTER
S936200000 S3-S-F5 RECEIVER
S936200001 S3-R-F5 RECEIVER
S936330000 S3-S-A2,5 RRX
S936330001 S3-R-A2,5 RRX
S936330008 S3-S-T0,8 RRX
S936330009 S3-R-T0,8 RRX
S936420000 S3-S-B2 RRX.POL
S936420001 S3-R-B2 RRX.POL
S936530000 S3-S-C50 PROX
S936530001 S3-R-C50 PROX
S936530004 S3-S-C10 PROX
S936530005 S3-R-C10 PROX
S936620000 S3-S-D12 FF.PROX
S936620001 S3-R-D12 FF.PROX
S936820000 S3-S-E1 FO.
S936820001 S3-R-E1 FO.
S939130900 S3T-S-G5 EMITTER
S939130901 S3T-R-G5 EMITTER
S939200200 S3T-S-F5 RECEIVER
S939200201 S3T-R-F5 RECEIVER
S939330200 S3T-S-A2,5 PNP-RRX. M8 CONN.
S939330201 S3T-R-A2,5 PNP-RRX. M8 CONN.
S939330208 S3T-S-T0,8 PNP-RRX. M8 CONN
S939330209 S3T-R-T0,8 PNP-RRX. M8 CONN.
S939420200 S3T-S-B2 PNP-RRX.POL M8 CONN.
S939420201 S3T-R-B2 PNP-RRX.POL M8 CONN.
S939530200 S3T-S-C50 PNP-PROX M8 CONN.
S939530201 S3T-R-C50 PNP-PROX M8 CONN.
S939620200 S3T-S-D12 PNP-FF. PROX M8 CONN.
S939620201 S3T-R-D12 PNP-FF. PROX M8 CONN.
S939730200 S3T-S-C10 PNP-PROX M8 CONN.
S939730201 S3T-R-C10 PNP-PROX M8 CONN.
S939820200 S3T-S-E1 PNP-FO. M8 CONN.
S939820201 S3T-R-E1 PNP-FO. M8 CONN.

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC1300 ST-505 fixing bracket S3/40/41/TEN/TEC

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
S3 miniaturesensors datasheet e Datasheet 611 KB
S3 miniaturesensors datasheet f Datasheet 617 KB
S3 miniaturesensors datasheet g Datasheet 668 KB
S3 miniaturesensors datasheet i Datasheet 609 KB
S3 miniaturesensors manual rev C de Manuals 59 KB
S3 miniaturesensors manual rev C e Manuals 62 KB
S3 miniaturesensors manual rev C fr Manuals 58 KB
S3 miniaturesensors manual rev C i Manuals 62 KB
S3 miniaturesensors manual rev C sp Manuals 63 KB











Other Product In Group "Datalogic Photoelectric Sensor (11)"

Measurement - Ultrasonic Sensors
Tubular Sensor
Slot Sensors
Proximity Switches
Measurement - Light Arrays
Measurement - Distance Sensors
Maxi Sensors
Luminescense Sensors
Compact Sensor
Colour Sensor
Area Sensors
View All
