Product Information :

Name :
Tubular Sensor
Category :
  1. ไฟฟ้าและอิเล็กทรอนิกส์
Sub - Category :
  1. Datalogic Photoelectric Sensor
Brand :
Datlogic
Model :

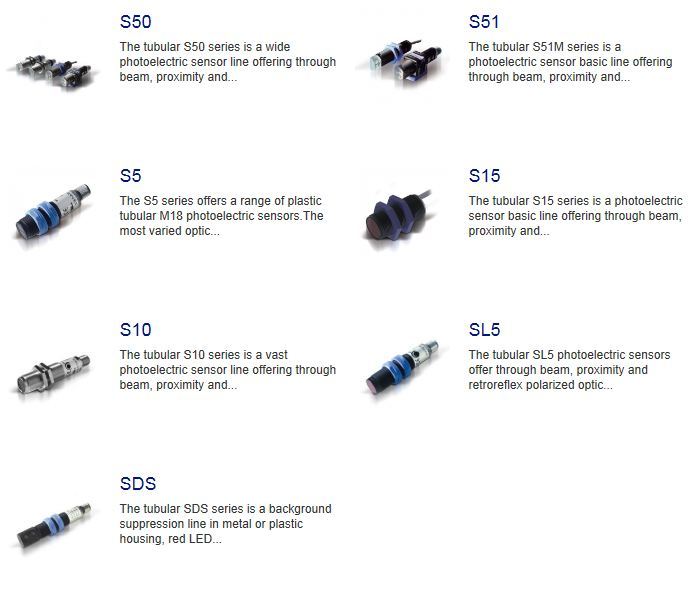

S50, S51, S5, S15, S10, SL5, SDS
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
S50 The tubular S50 series is a wide photoelectric sensor line offering through beam, proximity and... S51 The tubular S51M series is a photoelectric sensor basic line offering through beam, proximity and... S5 The S5 series offers a range of plastic tubular M18 photoelectric sensors.The most varied optic... S15 The tubular S15 series is a photoelectric sensor basic line offering through beam, proximity and... S10 The tubular S10 series is a vast photoelectric sensor line offering through beam, proximity and... SL5 The tubular SL5 photoelectric sensors offer through beam, proximity and retroreflex polarized optic... SDS The tubular SDS series is a background suppression line in metal or plastic housing, red LED...

Product Detail :

           S50 Series

Info

The tubular S50 series is a wide photoelectric sensor line offering through beam, proximity and retroreflex polarized optic functions, available with both LED and laser emission models, radial and axial optics, 2m cable or M12 4-pole connection in plastic housing. Available in DC version offering excellent solutions for all industrial applications, presenting a flat plastic housing with 2 fixing holes to guarantee excellent mounting flexibility.

Features & Benefits

  • Wide range: suitable for all the industrial applications
  • Laser models: high detection repeatability for a precise reading
  • Cable or M12 4-pole connection: flexible connection to meet customer applications
  • Axial or radial optics: adaptability to the mechanical part of the plant

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Ceramics working machines
  • Automatic warehouses

Models

The product series offers the following models:

Ordering Codes

Description
952001000 S50-PA-5-M03-PP bgd-supp pnp no-nc M12
952001010 S50-PA-2-B01-PP rrx-pol pnp no-nc cable
952001020 S50-PA-5-B01-PP rrx-pol pnp no-nc M12
952001030 S50-PR-2-B01-PP rrx-pol pnp no-nc cable
952001040 S50-PR-5-B01-PP rrx-pol pnp no-nc M12
952001050 S50-PA-2-C01-PP dif-prox pnp no-nc cable
952001060 S50-PA-5-C01-PP dif-prox pnp no-nc M12
952001070 S50-PR-2-C01-PP dif-prox pnp no-nc cab
952001080 S50-PR-5-C01-PP dif-prox pnp no-nc M12
952001090 S50-PA-2-D00-PP foc-prox pnp no-nc cable
952001100 S50-PA-5-D00-PP foc-prox pnp no-nc M12
952001110 S50-PR-2-D00-PP foc-prox pnp no-nc
952001120 S50-PR-5-D00-PP foc-prox pnp no-nc M12
952001130 S50-PA-2-E01-PP opt-fibr pnp no-nc cable
952001140 S50-PA-5-E01-PP opt-fibr pnp no-nc M12
952001150 S50-PA-2-F01-PP receiver pnp no-nc cable
952001160 S50-PA-5-F01-PP receiver pnp no-nc M12
952001170 S50-PR-2-F01-PP rec.pnp no-nc cab
952001180 S50-PR-5-F01-PP receiver pnp no-nc M12
952001190 S50-PA-2-G00-XG emitter cable
952001200 S50-PA-5-G00-XG emitter M12
952001210 S50-PR-2-G00-XG emitter cable
952001220 S50-PR-5-G00-XG emitter M12
952001230 S50-PA-2-M03-PP bgd-supp pnp no-nc cable
952001240 S50-PA-2-C10-PP dif-prox pnp no-nc cable
952001250 S50-PA-5-C10-PP dif-prox pnp no-nc M12
952001260 S50-PA-2-T01-PP rrx-tran pnp no-nc cable
952001270 S50-PA-5-T01-PP rrx-tran pnp no-nc M12
952001280 S50-PR-2-T01-PP rrx-tran pnp no-nc cb
952001290 S50-PR-5-T01-PP rrx-tran pnp no-nc M12
952001300 S50-PA-2-U03-PP luminesc pnp no-nc cable
952001310 S50-PA-5-U03-PP luminesc pnp no-nc M12
952001320 S50-PA-2-W03-PP contrast pnp no-nc cable
952001330 S50-PA-5-W03-PP contrast pnp no-nc M12
952001340 S50-PA-2-Y00-VK distance 0-10V cable
952001350 S50-PA-5-Y00-VK distance 0-10V M12
952001360 S50-PL-2-B01-PP rrx-pol pnp no-nc cable
952001370 S50-PL-5-B01-PP rrx-pol pnp no-nc M12
952001380 S50-PL-2-C01-PP dif-prox pnp no-nc cable
952001390 S50-PL-5-C01-PP dif-prox pnp no-nc M12
952001400 S50-PL-2-F01-PP receiver pnp no-nc cable
952001410 S50-PL-5-F01-PP receiver pnp no-nc M12
952001420 S50-PL-2-G00-XG emitter cable
952001430 S50-PL-5-G00-XG emitter M12
952001440 S50-PA-2-N03-PP b/f-supp pnp no-nc cable
952001450 S50-PA-5-N03-PP b/f-supp pnp no-nc M12
952001480 S50-PR-5-C10-PP dif-prox pno no-nc M12
952001490 S50-PR-2-C10-PP dif-prox pno no-nc cb
952001500 S50-PA-5-B01-NN rrx-pol npn no-nc M12
952001510 S50-PA-5-C01-NN dif-prox npn no-nc M12
952001520 S50-PA-5-C10-NN dif-prox npn no-nc M12
952001530 S50-PA-5-D00-NN foc-prox npn no-nc M12
952001540 S50-PA-5-E01-NN opt-fibr npn no-nc M12
952001550 S50-PA-5-F01-NN receiver npn no-nc M12
952001560 S50-PA-5-M03-NN bgd-supp npn no-nc M12
952001570 S50-PA-5-N03-NN b/f-supp npn no-nc M12
952001580 S50-PA-5-T01-NN rrx-tran npn no-nc M12
952001590 S50-PA-5-U03-NN luminesc npn no-nc M12
952001600 S50-PA-5-W03-NN contrast npn no-nc M12
952001610 S50-PA-2-B01-NN rrx-pol npn no-nc cable
952001620 S50-PA-2-C01-NN dif-prox npn no-nc cable
952001630 S50-PA-2-C10-NN dif-prox npn no-nc cable
952001640 S50-PA-2-D00-NN foc-prox npn no-nc cable
952001650 S50-PA-2-E01-NN opt-fibr npn no-nc cable
952001660 S50-PA-2-F01-NN receiver npn no-nc cable
952001670 S50-PA-2-M03-NN bgd-supp npn no-nc cable
952001680 S50-PA-2-N03-NN b/f-supp npn no-nc cable
952001690 S50-PA-2-T01-NN rrx-tran npn no-nc cable
952001700 S50-PA-2-U03-NN luminesc npn no-nc cable
952001710 S50-PA-2-W03-NN contrast npn no-nc cable
952001720 S50-PR-5-B01-NN rrx-pol npn no-nc M12
952001730 S50-PR-5-C01-NN dif-prox npn no-nc M12
952001740 S50-PR-5-C10-NN dif-prox npn no-nc M12
952001750 S50-PR-5-D00-NN foc-prox npn no-nc M12
952001760 S50-PR-5-F01-NN receiver npn no-nc M12
952001770 S50-PR-5-T01-NN rrx-tran npn no-nc M12
952001780 S50-PR-2-B01-NN rrx-pol npn no-nc cb
952001790 S50-PR-2-C01-NN dif-prox npn no-nc cb
952001800 S50-PR-2-C10-NN dif-prox npn no-nc cb
952001810 S50-PR-2-D00-NN foc-prox npn no-nc cb
952001820 S50-PR-2-F01-NN receiver npn no-nc cb
952001830 S50-PR-2-T01-NN rrx-tran npn no-nc cb
952001840 S50-PL-5-B01-NN rrx-pol npn no-nc M12
952001850 S50-PL-5-C01-NN dif-prox npn no-nc M12
952001860 S50-PL-5-F01-NN receiver npn no-nc M12
952001870 S50-PL-2-B01-NN rrx-pol npn no-nc cable
952001880 S50-PL-2-C01-NN dif-prox npn no-nc cable
952001890 S50-PL-2-F01-NN receiver npn no-nc cable
952001900 S50-PS-2-M03-NN bgd-supp npn no-nc cable
952001910 S50-PS-2-M03-PP bgd-supp pnp no-nc cable
952001920 S50-PS-5-M03-NN bgd-supp npn no-nc M12
952001930 S50-PS-5-M03-PP bgd-supp pnp no-nc M12
952001940 S50-PH-2-B01-PP rrx-pol pnp no-nc cable
952001950 S50-PH-2-B01-NN rrx-pol npn no-nc cable
952001960 S50-PH-5-B01-PP rrx-pol pnp no-nc M12
952001970 S50-PH-5-B01-NN rrx-pol npn no-nc M12
952001980 S50-PH-2-C01-PP dif-prox pnp no-nc cable
952001990 S50-PH-2-C01-NN dif-prox npn no-nc cable
952002000 S50-PH-5-C01-PP dif-prox pnp no-nc M12
952002010 S50-PH-5-C01-NN dif-prox npn no-nc M12
952002020 S50-PH-2-F01-PP receiver pnp no-nc cable
952002030 S50-PH-2-F01-NN receiver npn no-nc cable
952002040 S50-PH-5-F01-PP receiver pnp no-nc M12
952002050 S50-PH-5-F01-NN receiver npn no-nc M12
952002060 S50-PH-2-G00-XG emitter cable
952002070 S50-PH-5-G00-XG emitter M12
952002080 S50-PA-2-A00-PP rrx pnp no-nc cable
952002090 S50-PA-2-A00-NN rrx npn no-nc cable
952002100 S50-PA-5-A00-PP rrx pnp no-nc M12
952002110 S50-PA-5-A00-NN rrx npn no-nc M12
952002160 S50-PA-2-C21-PP dif-prox pnp no-nc cable
952002170 S50-PA-2-C21-NN dif-prox npn no-nc cable
952002180 S50-PA-5-C21-PP dif-prox pnp no-nc M12
952002190 S50-PA-5-C21-NN dif-prox npn no-nc M12

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
895000006 SWING-18
95ACC1370 SP-40 MOUNTING BRACKET TUBOLAR
95ACC1380 MICRO-18 M18 support w.micrometric adju
95ACC5220 JOINT-18
G5000001 MEK-PROOF PROTECTION
G602000008 PLASTIC FIX.NUTS (100pcs)
95ACC5270 PLASTIC NUT
95ACC2380 PLASTIC NUTS S51 (100pcs)
95ACC5230 ST-5010 FIXING BRACKET S50
95ACC5240 ST-5011 fixing bracket short S50/S51
95ACC5250 ST-5012 fixing bracket long S50/S51
95ACC5260 ST-5013 ROUND-18 S50/S51
95ACC5270 ST-5017 fixing bracket st.profile S50/S51
95ACC5300 EASY-IN S50 EASY-IN SUPPORT
G602000017 METAL FIXING NUT

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
S50 tubularsensors datasheet e Datasheet 3 MB
S50 tubularsensors datasheet f Datasheet 3 MB
S50 tubularsensors datasheet g Datasheet 3 MB
S50 tubularsensors datasheet i Datasheet 3 MB
S50 x H tubularsensors manual rev F de Manuals 113 KB
S50 x H tubularsensors manual rev F e Manuals 114 KB
S50 x H tubularsensors manual rev F fr Manuals 115 KB
S50 x H tubularsensors manual rev F i Manuals 115 KB
S50 x L tubularsensors manual rev G de Manuals 104 KB
S50 x L tubularsensors manual rev G e Manuals 107 KB
S50 x L tubularsensors manual rev G fr Manuals 107 KB
S50 x L tubularsensors manual rev G i Manuals 104 KB
S50MN tubularsensors manual rev H de Manuals 105 KB
S50MN tubularsensors manual rev H e Manuals 103 KB
S50MN tubularsensors manual rev H fr Manuals 102 KB
S50MN tubularsensors manual rev H i Manuals 103 KB
S50Plastic tubularsensors manual rev I de Manuals 119 KB
S50Plastic tubularsensors manual rev I e Manuals 119 KB
S50Plastic tubularsensors manual rev I fr Manuals 120 KB
S50Plastic tubularsensors manual rev I i Manuals 120 KB
S50U tubularsensors manual rev H de Manuals 106 KB
S50U tubularsensors manual rev H e Manuals 108 KB
S50U tubularsensors manual rev H fr Manuals 107 KB
S50U tubularsensors manual rev H i Manuals 107 KB
S50W tubularsensors manual rev G de Manuals 100 KB
S50W tubularsensors manual rev G e Manuals 99 KB
S50W tubularsensors manual rev G fr Manuals 99 KB
S50W tubularsensors manual rev G i Manuals 99 KB
S50x S tubularsensors manual rev E de Manuals 104 KB
S50x S tubularsensors manual rev E e Manuals 106 KB
S50x S tubularsensors manual rev E fr Manuals 104 KB
S50x S tubularsensors manual rev E i Manuals 102 KB

S51

Info

The tubular S51 series is a photoelectric sensor basic line offering through beam, proximity and retroreflex polarized optic functions with LED emission, radial and axial optics, 2m cable or M12 4-pole connection. Also available in DC version with both metal or plastic housing. The plastic version offers flat housing with 2 fixing holes to guarantee high mounting flexibility.

Features & Benefits

  • Performance/price ratio: most cost-effective detection solution
  • Wide range: suitable for all the industrial applications
  • Axial or radial optics: adaptability to the mechanical part of the plant

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Ceramics working machines
  • Automatic warehouses

Models

The product series offers the following models:

Ordering Codes

Description
952701001 S51-PA-2-A00-PK rrx pnp-no cable
952701011 S51-PA-2-B01-PK rrx-pol pnp-no cable
952701021 S51-PA-2-C01-PK dif-prox pnp-no cable
952701031 S51-PA-2-C10-PK dif-prox pnp-no cable
952701051 S51-PA-2-F00-PK receiver pnp-no cable
952701061 S51-PA-2-G00-XG emitter cable
952701071 S51-PA-2-A00-NK rrx npn-no cable
952701081 S51-PA-2-B01-NK rrx-pol npn-no cable
952701091 S51-PA-2-C01-NK dif-prox npn-no cable
952701101 S51-PA-2-C10-NK dif-prox npn-no cable
952701121 S51-PA-2-F00-NK receiver npn-no cable
952701131 S51-PR-2-A00-PK rrx pnp-no cable
952701141 S51-PR-2-B01-PK rrx-pol pnp-no cable
952701151 S51-PR-2-C01-PK dif-prox pnp-no cable
952701161 S51-PR-2-C10-PK dif-prox pnp-no cable
952701181 S51-PR-2-F00-PK receiver pnp-no cable
952701191 S51-PR-2-G00-XG emitter cable
952701201 S51-PR-2-A00-NK rrx npn-no cable
952701211 S51-PR-2-B01-NK rrx-pol npn-no cable
952701221 S51-PR-2-C01-NK dif-prox npn-no cable
952701231 S51-PR-2-C10-NK dif-prox npn-no cable
952701251 S51-PR-2-F00-NK receiver npn-no cable
952701261 S51-PA-5-A00-PK rrx pnp-no M12
952701271 S51-PA-5-B01-PK rrx-pol pnp-no M12
952701281 S51-PA-5-C01-PK dif-prox pnp-no M12
952701291 S51-PA-5-C10-PK dif-prox pnp-no M12
952701311 S51-PA-5-F00-PK receiver pnp-no M12
952701321 S51-PA-5-G00-XG emitter M12
952701331 S51-PA-5-A00-NK rrx npn-no M12
952701341 S51-PA-5-B01-NK rrx-pol npn-no M12
952701351 S51-PA-5-C01-NK dif-prox npn-no M12
952701361 S51-PA-5-C10-NK dif-prox npn-no M12
952701381 S51-PA-5-F00-NK receiver npn-no M12
952701391 S51-PR-5-A00-PK rrx pnp-no M12
952701401 S51-PR-5-B01-PK rrx-pol pnp-no M12
952701411 S51-PR-5-C01-PK dif-prox pnp-no M12
952701421 S51-PR-5-C10-PK dif-prox pnp-no M12
952701441 S51-PR-5-F00-PK receiver pnp-no M12
952701451 S51-PR-5-G00-XG emitter M12
952701461 S51-PR-5-A00-NK rrx npn-no M12
952701471 S51-PR-5-B01-NK rrx-pol npn-no M12
952701481 S51-PR-5-C01-NK dif-prox npn-no M12
952701491 S51-PR-5-C10-NK dif-prox npn-no M12
952701511 S51-PR-5-F00-NK receiver npn-no M12
952701521 S51-MA-5-C10-PK DIF-PROX PNP-NO M12
952701531 S51-MA-5-A00-PK RRX PNP-NO M12
952701541 S51-MA-2-A00-PK rrx pnp-no cable
952701551 S51-MA-2-B01-PK rrx-pol pnp-no cable
952701561 S51-MA-2-C01-PK dif-prox pnp-no cable
952701571 S51-MA-2-C10-PK dif-prox pnp-no cable
952701581 S51-MA-2-F00-PK receiver pnp-no cable
952701591 S51-MA-2-G00-XG emitter cable
952701601 S51-MA-2-A00-NK rrx npn-no cable
952701611 S51-MA-2-B01-NK rrx-pol npn-no cable
952701621 S51-MA-2-C01-NK dif-prox npn-no cable
952701631 S51-MA-2-C10-NK dif-prox npn-no cable
952701641 S51-MA-2-F00-NK receiver npn-no cable
952701651 S51-MR-2-A00-PK rrx pnp-no cable
952701661 S51-MR-2-B01-PK rrx-pol pnp-no cable
952701671 S51-MR-2-C01-PK dif-prox pnp-no cable
952701681 S51-MR-2-C10-PK dif-prox pnp-no cable
952701691 S51-MR-2-F00-PK receiver pnp-no cable
952701701 S51-MR-2-G00-XG emitter cable
952701711 S51-MR-2-A00-NK rrx npn-no cable
952701721 S51-MR-2-B01-NK rrx-pol npn-no cable
952701731 S51-MR-2-C01-NK dif-prox npn-no cable
952701741 S51-MR-2-C10-NK dif-prox npn-no cable
952701751 S51-MR-2-F00-NK receiver npn-no cable
952701761 S51-MA-5-B01-PK rrx-pol pnp-no M12
952701771 S51-MA-5-C01-PK dif-prox pnp-no M12
952701781 S51-MA-5-F00-PK receiver pnp-no M12
952701791 S51-MA-5-G00-XG emitter M12
952701801 S51-MA-5-A00-NK rrx npn-no M12
952701811 S51-MA-5-B01-NK rrx-pol npn-no M12
952701821 S51-MA-5-C01-NK dif-prox npn-no M12
952701831 S51-MA-5-C10-NK dif-prox npn-no M12
952701841 S51-MA-5-F00-NK receiver npn-no M12
952701851 S51-MR-5-A00-PK rrx pnp-no M12
952701861 S51-MR-5-B01-PK rrx-pol pnp-no M12
952701871 S51-MR-5-C01-PK dif-prox pnp-no M12
952701881 S51-MR-5-C10-PK dif-prox pnp-no M12
952701891 S51-MR-5-F00-PK receiver pnp-no M12
952701901 S51-MR-5-G00-XG emitter M12
952701911 S51-MR-5-A00-NK rrx npn-no M12
952701921 S51-MR-5-B01-NK rrx-pol npn-no M12
952701931 S51-MR-5-C01-NK dif-prox npn-no M12
952701941 S51-MR-5-C10-NK dif-prox npn-no M12
952701951 S51-MR-5-F00-NK receiver npn-no M12
952701961 S51-MA-5-C20-PK PROX-NAR-BEAM PNP-NO M12

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
895000006 SWING-18
95ACC1370 SP-40 MOUNTING BRACKET TUBOLAR
95ACC1380 MICRO-18 M18 support w.micrometric adju
95ACC5220 JOINT-18
G5000001 MEK-PROOF PROTECTION
G602000008 PLASTIC FIX.NUTS (100pcs)
95ACC5270 PLASTIC NUT
95ACC2380 PLASTIC NUTS S51 (100pcs)
95ACC5230 ST-5010 FIXING BRACKET S50
95ACC5240 ST-5011 fixing bracket short S50/S51
95ACC5250 ST-5012 fixing bracket long S50/S51
95ACC5260 ST-5013 ROUND-18 S50/S51
95ACC5270 ST-5017 fixing bracket st.profile S50/S51
95ACC5300 EASY-IN S50 EASY-IN SUPPORT
G602000017 METAL FIXING NUT

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
S51 tubularsensors datasheet e Datasheet 236 KB
S51 tubularsensors datasheet f Datasheet 257 KB
S51 tubularsensors datasheet g Datasheet 845 KB
S51 tubularsensors datasheet i Datasheet 235 KB
S51Metal tubularsensors manual rev G de Manuals 75 KB
S51Metal tubularsensors manual rev G e Manuals 75 KB
S51Metal tubularsensors manual rev G fr Manuals 82 KB
S51Metal tubularsensors manual rev G i Manuals 78 KB
S51Plastic tubularsensors manual rev C de Manuals 107 KB
S51Plastic tubularsensors manual rev C e Manuals 106 KB
S51Plastic tubularsensors manual rev C fr Manuals 108 KB
S51Plastic tubularsensors manual rev C i Manuals 106 KB

S5

Info

The S5 series offers a range of plastic tubular M18 photoelectric sensors.The most varied optic functions can be chosen amongst the fixed focus 15 mm and 50 mm or diffuse proximity models with short, medium or long operating distances reaching 60 cm; the 4 m retroreflex, 3 m polarised retroreflex and 1 m for detection of transparent materials; the 12 m through beam and models with fibre-optic connection. Different versions with either axial or radial optics are available. The series offers connector or cable connection, 3 wire Vac versions or 4 wire Vdc versions with complete configuration of the NPN/PNP output and dark/light mode.A red LED indicating the output status is visible on the bottom side of the sensor.
The versions with trimmer adjustment present also a green LED signalling the switching stability according to the received signal’s intensity.The rugged ABS housing always guarantees IP67 protection.

Features & Benefits

  • Wide range: suitable for all the industrial applications
  • AC or DC version: application adaptability
  • Axial or radial optics: adaptability to the mechanical part of the plant

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Ceramics working machines
  • Automatic warehouses

Models

The product series offers the following models:

Ordering Codes

Models
952051640 S5-5-C60-30
952051650 S5-5-C60-32
952051660 S5-5-C60-35
952051670 S5-5-C60-37
952051680 S5-5-T1-30
952051690 S5-5-T1-32
G5110000 S5-1-G8-00 EMITTER 15/264VAC
G5110005 S5-1-G8-05 EMITTER 15/264VAC
G5110110 S5-1-F8-10 RECEIVER 15/264VAC
G5110115 S5-1-F8-15 RECEIVER 15/264VAC
G5110120 S5-1-F8-20 RECEIVER 15/264VAC
G5110125 S5-1-F8-25 RECEIVER 15/264VAC
G5110210 S5-1-A2-10 RRX 15/264VAC
G5110215 S5-1-A2-15 RRX 15/264VAC
G5110220 S5-1-A2-20 RRX 15/264VAC
G5110225 S5-1-A2-25 RRX 15/264VAC
G5110410 S5-1-D15-10 FF.PROX 15/264VAC
G5110420 S5-1-D15-20 FF.PROX 15/264VAC
952051940 S5-5-D50-92 FF.PROX 50MM M12 PNP NO
G5110510 S5-1-C8-10 PROX 15/264VAC
G5110515 S5-1-C8-15 PROX 15/264VAC
G5110520 S5-1-C8-20 PROX 15/264VAC
G5110525 S5-1-C8-25 PROX 15/264VAC
G5110610 S5-1-C30-10 PROX 15/264VAC
G5110615 S5-1-C30-15 PROX 15/264VAC
G5110620 S5-1-C30-20 PROX 15/264VAC
G5110625 S5-1-C30-25 PROX 15/264VAC
G5210000 S5-5-G12-00 EMITTER 10/30VDC
G5210002 S5-5-G12-02 EMITTER 10/30VDC
G5210005 S5-5-G8-05 EMITTER 10/30VDC
G5210007 S5-5-G8-07 EMITTER 10/30VDC
G5210130 S5-5-F12-30 RECEIVER 10/30VDC
G5210132 S5-5-F12-32 RECEIVER 10/30VDC
G5210135 S5-5-F8-35 RECEIVER 10/30VDC
G5210137 S5-5-F8-37 RECEIVER 10/30VDC
G5210230 S5-5-A4-30 RRX 10/30VDC
G5210232 S5-5-A4-32 RRX 10/30VDC
G5210235 S5-5-A4-35 RRX 10/30VDC
G5210237 S5-5-A4-37 RRX 10/30VDC
G5210262 S5-5-A4-62 RRX 10/30VDC
G5210282 S5-5-A4-82 RRX 10/30VDC
G5210287 S5-5-A4-87 RRX 10/30VDC
G5210292 S5-5-A4-92 RRX 10/30VDC
G5210430 S5-5-D15-30 FF.PROX 10/30VDC
G5210432 S5-5-D15-32 FF.PROX 10/30VDC
G5210435 S5-5-D15-35 FF.PROX 10/30VDC
G5210437 S5-5-D15-37 FF.PROX M12 10/30VDC
G5210530 S5-5-C10-30 PROX 10/30VDC
G5210532 S5-5-C10-32 PROX 10/30VDC
G5210535 S5-5-C10-35 PROX 10/30VDC
G5210537 S5-5-C10-37 PROX 10/30VDC
G5210630 S5-5-C35-30 PROX 10/30VDC
G5210632 S5-5-C35-32 PROX 10/30VDC
G5210635 S5-5-C35-35 PROX 10/30VDC
G5210637 S5-5-C35-37 PROX 10/30VDC
G5210692 S5-5-C35-92 PROX 10/30VDC
G5210730 S5-5-B3-30 RRX.POL 10/30VDC
G5210732 S5-5-B3-32 RRX.POL 10/30VDC
G5210735 S5-5-B3-35 RRX.POL 10/30VDC
G5210737 S5-5-B3-37 RRX.POL 10/30VDC
G5210830 S5-5-E1-30 R.P.FO. 10/30VDC
G5210832 S5-5-E1-32 R.P.FO. 10/30VDC
G5210972 S5-5-L2-72 FF.PROX 10/30VDC
G5210992 S5-5-L2-92 FF.PROX 10/30VDC

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Models
895000006 SWING-18
95ACC1370 SP-40 MOUNTING BRACKET TUBOLAR
95ACC1380 MICRO-18 M18 support w.micrometric adju
95ACC5220 JOINT-18
G5000001 MEK-PROOF PROTECTION
G602000008 PLASTIC FIX.NUTS (100pcs)
95ACC5270 PLASTIC NUT


Download


     S15

Info

The tubular S15 series is a photoelectric sensor basic line offering through beam, proximity and retroreflex polarized optic functions without sensitivity adjustment, also available with 2m cable or pig-tail M12 4-pole connection, short plastic housing, only 40mm, suitable for reduced-space applications, IP69K mechanical protection.

Features & Benefits

  • Performance/price ratio: most cost-effective detection solution
  • Short housing: suitable for applications with reduced space
  • IP69K mechanical protection: excellent reliability under harsh use condition or in case of washing with high pressure water jets
  • Cable or pig-tail M12 4-pole configuration: adaptability to the mechanical part of the plant

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Ceramics working machines
  • Automatic warehouses

Models

The product series offers the following models:
Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
S5 tubularsensors datasheet e Datasheet 1 MB
S5 tubularsensors datasheet i.pdf Datasheet 1 MB
S5 tubularsensors manual rev G de Manuals 61 KB
S5 tubularsensors manual rev G e Manuals 61 KB
S5 tubularsensors manual rev G es Manuals 61 KB
S5 tubularsensors manual rev G fr Manuals 61 KB
S5 tubularsensors manual rev G i Manuals 62 KB

Ordering Codes

Description
952301000 S15-PA-2-A00-PK RRX PNP-NO CABLE
952301010 S15-PA-2-B00-PK RRX POL PNP-NO CABLE
952301020 S15-PA-2-C10-PK DIF PROX PNP-NO CABLE
952301030 S15-PA-2-C00-PK DIF PROX PNP-NO CABLE
952301040 S15-PA-2-F00-PK RECEIVER PNP-NO CABLE
952301050 S15-PA-2-A00-NK RRX NPN-NO CABLE
952301060 S15-PA-2-B00-NK RRX POL NPN-NO CABLE
952301070 S15-PA-2-C10-NK DIF PROX NPN-NO CABLE
952301080 S15-PA-2-C00-NK DIF PROX NPN-NO CABLE
952301090 S15-PA-2-F00-NK RECEIVER NPN-NO CABLE
952301100 S15-PA-2-G00-XG EMITTER CABLE
952301110 S15-PA-3-A00-PK RRX PNP-NO pig-tail M12
952301120 S15-PA-3-B00-PK RRX POL PNP-NO pig-tail M12
952301130 S15-PA-3-C10-PK� DIF PROX PNP-NO pig-tail M12
952301140 S15-PA-3-C00-PK DIF PROX PNP-NO pig-tail M12
952301150 S15-PA-3-F00-PK RECEIVER PNP-NO pig-tail M12
952301160 S15-PA-3-A00-NK RRX NPN-NO pig-tail M12
952301170 S15-PA-3-B00-NK RRX NPN-NO pig-tail M12
952301180 S15-PA-3-C10-NK DIF PROX NPN-NO pig-tail M12
952301190 S15-PA-3-C00-NK DIF PROX NPN-NO pig-tail M12
952301200 S15-PA-3-F00-NK DIF PROX NPN-NO pig-tail M12
952301210 S15-PA-3-G00-XG EMITTER pig-tail M12

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
895000006 SWING-18
95ACC1370 SP-40 MOUNTING BRACKET TUBOLAR
95ACC1380 MICRO-18 M18 support w.micrometric adju
95ACC5220 JOINT-18
G5000001 MEK-PROOF PROTECTION
G602000008 PLASTIC FIX.NUTS (100pcs)
95ACC2630 PLASTIC NUT


Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
Product Guide Sensors Safet Measurementf Product Guides 2 MB
S15 tubularsensors datasheet e Datasheet 1 MB
S15 tubularsensors datasheet f Datasheet 262 KB
S15 tubularsensors datasheet i Datasheet 1 MB
S15 tubularsensors leaflet e Leaflets 681 KB
S15 tubularsensors leaflet f Leaflets 800 KB
S15 tubularsensors leaflet g Leaflets 2 MB
S15 tubularsensors leaflet i Leaflets 726 KB
S15 tubularsensors leaflet s Leaflets 776 KB
S15 tubularsensors manual rev B e Manuals 57 KB
S15 tubularsensors manual rev B i Manuals 57 KB



S10

Info

The tubular S10 series is a vast photoelectric sensor line offering through beam, proximity and retroreflex polarized optic functions, available with LED emission and axial optics, 2m cable or M12 4-pole connection in metal housing. Also available in stainless steel AISI316L housing with IP69K mechanical protection suitable for food applications, DC version 3 wires: PNP or NPN, DARK or LIGHT mode.

Features & Benefits

  • Metal housing: excellent reliability under harsh use conditions
  • IP69K mechanical protection: excellent reliability under harsh use conditions or in case of washing with high pressure water jets
  • Stainless steel AISI916L: suitable to all food industry requirements

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Ceramics working machines
  • Automatic warehouses

Models

The product series offers the following models:

Ordering Codes

Models
952101440 S10-NA-5-A01-PD RRX PNP M12
952101450 S10-NA-5-A01-PL RRX PNP M12
952101460 S10-NA-5-B01-ND RRX-POL NPN M12
952101470 S10-NA-5-B01-NL RRX-POL NPN M12
952101480 S10-NA-5-B01-PD RRX-POL PNP M12
952101490 S10-NA-5-B01-PL RRX-POL PNP M12
952101500 S10-NA-5-T01-ND RRX-TRAN NPN M12
952101510 S10-NA-5-T01-NL RRX-TRAN NPN M12
952101520 S10-NA-5-T01-PD RRX-TRAN PNP M12
952101530 S10-NA-5-T01-PL RRX-TRAN PNP M12
952101540 S10-NA-5-C01-ND DIF-PROX NPN M12
952101550 S10-NA-5-C01-NL DIF-PROX NPN M12
952101560 S10-NA-5-C01-PD DIF-PROX PNP M12
952101570 S10-NA-5-C01-PL DIF-PROX PNP M12
952101580 S10-NA-5-C11-ND PROX NPN M12
952101590 S10-NA-5-C11-NL PROX NPN M12
952101600 S10-NA-5-C11-PD PROX PNP M12
952101610 S10-NA-5-C11-PL PROX PNP M12
952101620 S10-NA-5-C21-ND DIF-PROX NPN M12
952101630 S10-NA-5-C21-NL DIF-PROX NPN M12
952101640 S10-NA-5-C21-PD DIF-PROX PNP M12
952101650 S10-NA-5-C21-PL DIF-PROX PNP M12
952101660 S10-NA-5-D01-NL FOC-PROX NPN M12
952101670 S10-NA-5-D01-PL FOC-PROX PNP M12
952101680 S10-NA-5-F01-ND RECEIVER NPN M12
952101690 S10-NA-5-F01-NL RECEIVER NPN M12
952101700 S10-NA-5-F01-PD RECEIVER PNP M12
952101710 S10-NA-5-F01-PL RECEIVER PNP M12
952101720 S10-NA-5-G00-XF EMITTER M12
952101730 S10-NA-5-G00-XE EMITTER M12

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Models
895000006 SWING-18
95ACC1370 SP-40 MOUNTING BRACKET TUBOLAR
95ACC1380 MICRO-18 M18 support w.micrometric adju
95ACC5220 JOINT-18
G5000001 MEK-PROOF PROTECTION
G602000008 PLASTIC FIX.NUTS (100pcs)
95ACC5270 PLASTIC NUT

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
S10 tubularsensors datasheet e Datasheet 821 KB
S10 tubularsensors datasheet f Datasheet 753 KB
S10 tubularsensors datasheet i Datasheet 825 KB
S10 tubularsensors leaflet e Leaflets 3 MB
S10 tubularsensors leaflet i Leaflets 3 MB
S10 tubularsensors manual rev B de Manuals 43 KB
S10 tubularsensors manual rev B e Manuals 100 KB
S10 tubularsensors manual rev B fr Manuals 43 KB
S10 tubularsensors manual rev B i Manuals 43 KB



SL5

Info

The tubular SL5 photoelectric sensors offer through beam, proximity and retroreflex polarized optic functions with red laser emission, 2m cable or M12 4-pole connection in plastic housing, guaranteeing high detection repeatability.

Features & Benefits

  • Laser emission: high detection repeatability for a precise reading
  • Visible emission: easy and fast installation
  • Trimmer adjustment: application adaptability

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Ceramics working machines
  • Automatic warehouses

Models

The product series offers the following models:

Ordering Codes

Description
952501000 SL5-5-C-92 PROX 35cm PNP LIGHT M12
952501010 SL5-5-B-82 RRX POL12m PNP DARK M12
952501020 SL5-5-F-82 RECEIV.60m PNP DARK M12
952501030 SL5-5-G-82 LASER EMITTER60m M12
952501050 SL5-5-F-92 LASER RECEI.60m PNP LIGHT M12
952501080 SL5-5-B-92 RRX POL12m PNP LIGHT M12
952501090 SL5-5-C-82 LASER PROX 35cm PNP DARK M12
952501130 SL5-5-F-92-ST4 REC 40m PNP LIGHT M12
952501140 SL5-5-G-82-ST4 LASER EMI 40m M12
952501150 SL5-5-G-83-ST4 LASER CLASSE 2

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
895000006 SWING-18
95ACC1370 SP-40 MOUNTING BRACKET TUBOLAR
95ACC1380 MICRO-18 M18 support w.micrometric adju
95ACC5220 JOINT-18
G5000001 MEK-PROOF PROTECTION
G602000008 PLASTIC FIX.NUTS (100pcs)
95ACC5270 PLASTIC NUT


Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
SL5 tubularsensors datasheet e Datasheet 120 KB
SL5 tubularsensors datasheet f Datasheet 122 KB
SL5 tubularsensors datasheet g Datasheet 539 KB
SL5 tubularsensors datasheet i Datasheet 120 KB
SL5 tubularsensors manual rev D de Manuals 44 KB
SL5 tubularsensors manual rev D e Manuals 44 KB
SL5 tubularsensors manual rev D fr Manuals 45 KB
SL5 tubularsensors manual rev D i Manuals 45 KB



SDS

Info

The tubular SDS series is a background suppression line in metal or plastic housing, red LED emission, radial and axial optics, 2m cable or M12 4-pole connection, offering excellent reading performances independently from the object color due to triangulation technology, with distance adjustment setting.

Features & Benefits

  • Low Black/White difference: high detection reliability and precise reading
  • Metal or plastic housing: suitable for all the industrial applications
  • Axial or radial optics: adaptability to the mechanical part of the plant

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Automatic machines
  • Packaging lines
  • Transportation lines
  • Ceramics working machines
  • Automatic warehouses

Models

The product series offers the following models:

Ordering Codes

Description
952201400 SDS5-5-M10-75
952201410 SDS5-5-M10-95
952201420 SDS5-5-M10-77
952201430 SDS5-5-M10-97
952201440 SDS5-5-M10-70
952201450 SDS5-5-M10-90
952201460 SDS5-5-M10-72
952201470 SDS5-5-M10-92
962411000 SDS10-5-M12-30
962411010 SDS10-5-M12-32
962411020 SDS10-5-M12-35
962411030 SDS10-5-M12-37

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
895000006 SWING-18
95ACC1370 SP-40 MOUNTING BRACKET TUBOLAR
95ACC1380 MICRO-18 M18 support w.micrometric adju
95ACC5220 JOINT-18
G5000001 MEK-PROOF PROTECTION
G602000008 PLASTIC FIX.NUTS (100pcs)
95ACC5270 PLASTIC NUT
895000006 SWING-18
95ACC1370 SP-40 MOUNTING BRACKET TUBOLAR
95ACC1380 MICRO-18 M18 support w.micrometric adju
95ACC5220 JOINT-18
G5000001 MEK-PROOF PROTECTION
G602000008 PLASTIC FIX.NUTS (100pcs)
95ACC5270 PLASTIC NUT

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
SDS tubularsensors datasheet e Datasheet 222 KB
SDS tubularsensors datasheet f Datasheet 111 KB
SDS tubularsensors datasheet G Datasheet 216 KB
SDS tubularsensors datasheet i Datasheet 222 KB
SDS10 tubularsensors manual rev D e Manuals 114 KB
SDS10 tubularsensors manual rev D i Manuals 115 KB
SDS5 tubularsensors manual rev D de Manuals 88 KB
SDS5 tubularsensors manual rev D e Manuals 54 KB
SDS5 tubularsensors manual rev D fr Manuals 52 KB
SDS5 tubularsensors manual rev D i Manuals 54 KB

สนใจติดต่อขอรายละเอียดเพิ่มเติมได้ที่
บริษัท น่ำแซอินเตอร์เทรดดิ้ง จำกัด
Tel : 0-2223-2271-3,0-2226-5667-8
Fax : 0-2225-5546,0-2224-8071
E-mail : info@namsae.co.th, nitcoplus@hotmail.co.th, namsae@y7mail.com, nitco@y7mail.com, namsae@outlook.co.th, nitco@outlook.co.th
Website : http://www.namsae.co.th, http://www.nitco.co.th ,http://www.namsaeinter.com,http://www.namsaeonline.com
Facebook: http://www.facebook.com/namsaefanpage



Other Product In Group "Datalogic Photoelectric Sensor (11)"

Measurement - Ultrasonic Sensors
Slot Sensors
Proximity Switches
Miniature Sensor
Measurement - Light Arrays
Measurement - Distance Sensors
Maxi Sensors
Luminescense Sensors
Compact Sensor
Colour Sensor
Area Sensors
View All
