Product Information :

Name :
Measurement - Ultrasonic Sensors
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Datalogic Photoelectric Sensor
Brand :
Datalogic, Datasensing
Model :
US18, US30, US50
Product Type :
  1. เครื่องมือ, เครื่องจักรและอุปกรณ์
  2. สินค้า, ผลิตภัณฑ์
Short Description :

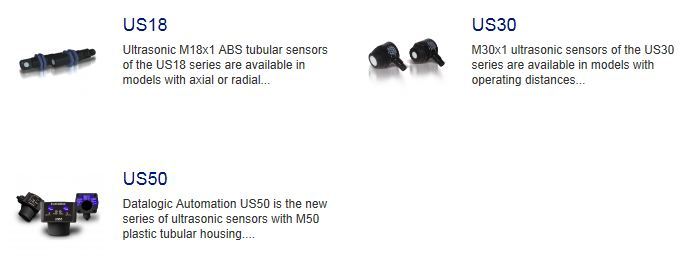

US18 Ultrasonic M18x1 ABS tubular sensors of the US18 series are available in models with axial or radial... US30 M30x1 ultrasonic sensors of the US30 series are available in models with operating distances... US50 Datalogic Automation US50 is the new series of ultrasonic sensors with M50 plastic tubular housing....

Product Detail :



Ultrasonic Sensors: US18

Info

Ultrasonic M18x1 ABS tubular sensors of the US18 series are available in models with axial or radial acoustic emission and with discrete bipolar output (1 NPN and 1 PNP) or with 4-20 mA or 0-10 V analogue output. The extremely reduced blind zone and the unequalled 5 ms response speed are only two of the many features that are worth highlighting.
The sensors are easily configured through the Teach-in function, while the operating status is visibly signalled by 2 bi-coloured LEDs.

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Bottle detection
  • Transparent loop control
  • Liquid level control

Models

The product series offers the following models:

Ordering Codes

Description
95B040000 US18-PA-5-N03-OH STRAIGHT BARREL NPN/PNP
95B040010 US18-PR-5-N03-OH RIGHT ANGLE B. NPN/PNP
95B040020 US18-PA-5-N03-IH STRAIGHT BARREL 4-20 mA
95B040030 US18-PR-5-N03-IH RIGHT ANGLE B. 4-20 mA
95B040040 US18-PA-5-N03-VH STRAIGHT BARREL 0-10 V
95B040050 US18-PR-5-N03-VH RIGHT ANGLE B. 0-10 V

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
Product Guide Sensors Safet Measurementf Product Guides 2 MB
us18 datasheet w e Datasheet 1 MB
US18analog ultrasonicsensors manual rev C e Manuals 140 KB
US18analog ultrasonicsensors manual rev C i Manuals 149 KB
US18digital ultrasonicsensors manual rev C e Manuals 137 KB
US18digital ultrasonicsensors manual rev C i Manuals 140 KB



Ultrasonic Sensors: US30

Info

M30x1 ultrasonic sensors of the US30 series are available in models with operating distances reaching 200 cm either with bipolar digital output (1 NPN and 1 PNP) or with 4-20 mA or 0-10 V analogue output. The sensors can be easily configured using the Teach-in function, while the operating status is visibly signalled by 3 LEDs. The temperature compensation function corrects the sound speed changes due to temperature variations, so the sensor precision remains unchanged in all situations

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Food machines
  • Packaging and packing machines, material handling
  • Automatic warehouses
  • Level control
  • Metal, paper and wood working machines
  • Automotive


Models

The product series offers the following models:

Ordering Codes

Description
95B040060 US30-PR-5-N13-IH right angle b.1m, 4-20 mA
95B040070 US30-PR-5-N13-VH right angle b. 0-10 V
95B040080 US30-PR-5-N23-IH RIGHT ANGLE B., 2m, 4-20 mA
95B040090 US30-PR-5-N23-VH RIGHT ANGLE B., 2m, 0-10 V
95B040100 US30-PR-5-N13-OH RIGHT ANGLE B., 1m, PNP/NPN
95B040110 US30-PR-5-N23-OH RIGHT ANGLE B., 2m, PNP/NPN

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
Product Guide Sensors Safet Measurementf Product Guides 2 MB
us30 datasheet w e Datasheet 2 MB
US30analog ultrasonicsensors manual rev B e Manuals 170 KB
US30analog ultrasonicsensors manual rev B i Manuals 178 KB
US30Digital ultrasonicsensors manual rev B e Manuals 209 KB
US30Digital ultrasonicsensors manual rev B i Manuals 209 KB



Ultrasonic Sensors: US50

Info

Datalogic Automation US50 is the new series of ultrasonic sensors with M50 plastic tubular housing. All models are provided with a radial emitting head and offer the following versions:
  • Digital bipolar PNP/NPN NO/NC configurable output;
  • Analogue 0-10V / 4-20mA configurable output.
Operating distance from 200mm to 8m makes US50 ideal solution for all industrial applications where the target must be detected or measured really far away from the sensor.

Features & Benefits

  • Features ultrasonic dead-zone of only 2.5% of the total range: 75% less than comparable products
  • Available in analog or discrete dc models: maximum flexibility
  • Features a completely sealed, shock-resistant housing : ideal for monitoring levels of liquids as well as solids
  • Narrow sensing beam: capability to detect targets at long range within confined areas—such as a storage tank—without interference from the tank walls
  • Compensates for temperature: greatest sensing accuracy
  • Push-button and remote TEACH-mode programming: simple setup.

Applications

  • Ceramics
  • Beverage & Bottling
  • Transportation lines
  • Packaging lines

Models

The product series offers the following models:

Ordering Codes

Description
95B040120 US50-PR-5-N43-OH RIGHT ANGLE B.PNP/NPN
95B040130 US50-PR-5-N43-IVH RIGHT ANGLE B. AN. OUT

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC7820 ST-30SC US50 MOUNT. BRACKET ASSY
95ACC7830 ST-30MM US50 STAINLESS STEEL BRACKET

Download

Catalogo Generale sensori, sicurezza e visione i Catalogues 25 MB
General Catalogue sensors, safety and vision e Catalogues 25 MB
Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
Product Guide Sensors Safet Measurementf Product Guides 2 MB
us50 datasheet w e Datasheet 2 MB
US50analog ultrasonicsensors manual rev00 e Manuals 179 KB
US50analog ultrasonicsensors manual rev00 i Manuals 155 KB
US50digital ultrasonicsensors manual rev00 e Manuals 208 KB
US50digital ultrasonicsensors manual rev00 i Manuals 183 KB
