E-Catalog > Web Guide Controllers > Polaris DP-30 Web Guide Controller
Product Detail :

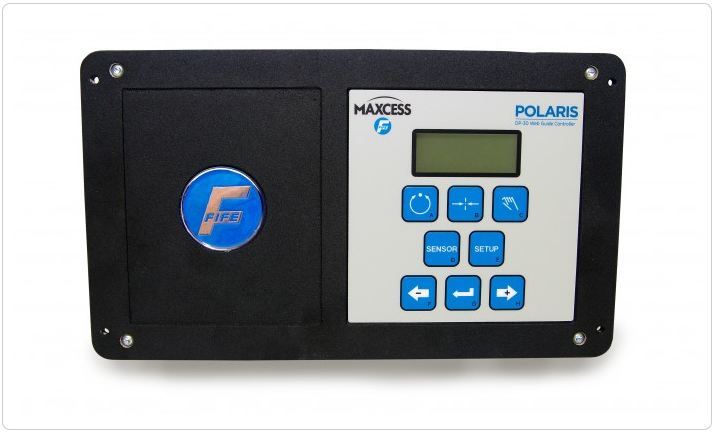

Built for demanding web guiding applications, the Polaris DP-30 provides reliable, accurate control of web alignment via a simple, easy-to-operate interface. The advanced setup features of this controller automatically determine and set guide polarity, guide point, and system gain.
The Polaris DP-30 is the perfect way to introduce new technology and ease of operation to your existing line. Fife makes it easy to update your existing CDP-01 Web Guide Controllers with this new technology by keeping the same cabling, mounting dimensions and bolt pattern, and by offering convenient retrofit packages. Available for both electromechanical and electrohydraulic operations, the Polaris DP-30 can be configured for line, edge, or center guiding applications.
Key Features:
-
Form, fit, and improved functionality
Drop-in replacement for CDP-01
User-friendly keypad – intuitive for end users or internal operators
Backlit LCD readout – easy to understand and operate
Auto setup – configures controller for optimal performance
Intuitive menu layout – less confusion for operators / less potential downtime
High dynamic response
Specifications:
-
Weight: 3.5 kg (7.75 lbs)
Universal Input Power: 90 VAC to 264 VAC
Input Line Frequency: 47 to 63 Hz
Power Consumption: 180 VA
Internal Fuse: 3.15 Amps
Maximum Actuator Output: 80 W
Max Lockout Valve Output: 39 W at 24 V or 48 V
Motor Current Capacity: 2.6 Amps
Protection Class: IP54
Current Source Output: +/- 50 mA for Hydraulic Servo Valve
Supply to Accessories: +12 V +/-5%, 600 mA, -12 V +/-5%, 150 mA
Parallel I/O: Six Digital Inputs Referenced to Group, (24 V max, 6 mA), and Two Open Collector Outputs, (30 V max, 55 mA)
Servo Center: Analog Inductive Type
Operating Temperature: 0° to 50° C (32° to 122° F)
