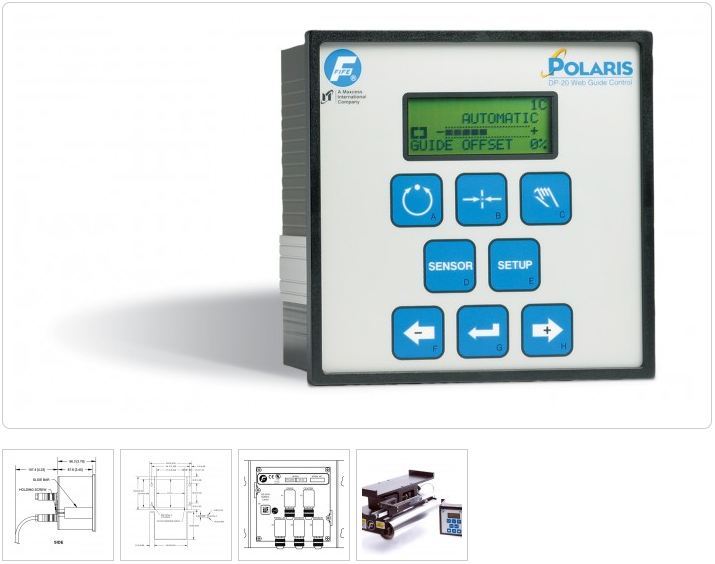

E-Catalog > Web Guide Controllers > Polaris DP-20 Web Guide Controller
Product Detail :
Now you can have better web guide control that’s easier to use, with the same level of performance that you’ve grown accustomed to with Fife. Polaris is simple and easy to operate, with only eight keys and the ability to display four lines of text in a package that is flexible and easy to mount. Simply put, this is the easiest and most intuitive controller we’ve ever created. That’s why we named it for the guiding star, Polaris. It's just one more way we're helping you run faster, smarter and better.
Key Features:
-
User-friendly keypad — eliminates confusion for end users or internal operators
LCD readout — ease of use for the operator, less potential downtime
Intuitive menu layout — less confusion for operators / less potential downtime
Auto setup — no guessing on optimal performance settings, quick setups
Parallel input — easy discrete (hard-wired) connectivity to PLC
High dynamic response
Easily replaces most models of the CDP-01, with no cabling to change
Small form factor 144 mm x 144 mm x 103 mm (5.67 inches x 5.67 inches x 4.06 inches)
Easily integrated into a machine panel (bezel mount)
Specifications:
-
Certification: UL / cUL / CE Protection class: IP-54 Weight: 1.6 kg (3.5 lbs) Operating ambient temperature: 0 to 50 degrees C (32 to 122 degrees F) Power consumption: 130 VA Input line frequency: 47-63 Hz Maximum actuator output: 39 W at 30 V Parallel port: 6 digital inputs, 2 open collector outputs Universal input line voltage range: 100 VAC -10% to 240 VAC +10% Sensor input: 2 independent edge sensors or 1 line guide sensor (SE-26A or SE-46B)
Max input ±20 mA, 0 to 10 mA (preferred)Supply to accessories: +12 V ±5%, 400 mA, -12 V ±5%, 150 mA Internal fuse: 3.15 A Servo center: Analog inductive Keypad layout: Membrane Keys 8 Basic Functions Auto, manual, servo-center Sensor key selections Left edge, right edge, center line, line guide Setup keys Auto setup, transparence setup (opacity), guide point adjustment,
system and servo-center gain adjustmentJog left (- key), jog right (+ key) Enter key to complete function / setup or manual key to cancel
