Product Information :

Name :
Safety - Photocells
Category :
  1. ไฟฟ้าและอิเล็กทรอนิกส์
Sub - Category :
  1. Safety Sensors
Brand :
Datalogic
Model :
S5-SG-ST2, S5-SG-ST4, S300-SG-ST2, S300-SG-ST4
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :

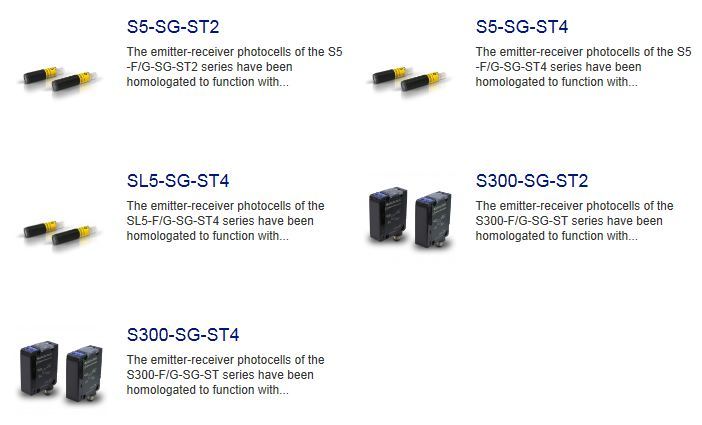

S5-SG-ST2 The emitter-receiver photocells of the S5-F/G-SG-ST2 series have been homologated to function with... S5-SG-ST4 The emitter-receiver photocells of the S5-F/G-SG-ST4 series have been homologated to function with... SL5-SG-ST4 The emitter-receiver photocells of the SL5-F/G-SG-ST4 series have been homologated to function with...View S300-SG-ST2 The emitter-receiver photocells of the S300-F/G-SG-ST series have been homologated to function with... S300-SG-ST4 The emitter-receiver photocells of the S300-F/G-SG-ST series have been homologated to function with...

Product Detail :



Safety - Photocells: S5-SG-ST2

Info

The emitter-receiver photocells of the S5-F/G-SG-ST2 series have been homologated to function with the control units of the SG-BWS series that together form a Type 2 safety system conforming with the EN 954-1 and EN ISO 13849-1 Standards. The particular characteristics of these photocells, immediately identified by the yellow data label, mainly consist in the effective aperture beam angle and in the presence of the test input, according to the IEC 61496-2 Standard and infrared emission reaching 8m.

Features & Benefits

  • Wide range: suitable for all the industrial applications
  • Tubular versions : to improve installation capability and to adapt the sensor to the mechanical parts of the machine
  • Excellent operating distance: to guarantee high application flexibility

Applications

This product series has been developed to satisfy to requirements of the following reference applications:

  • Automatic warehouse
  • Machines for food packaging
  • Robots
  • Automatic assembling lines
  • Machines for PCB production

Models

The product series offers the following models:

Ordering Codes

Description
952051870 S5-5-G8-62-SG-ST2 EMITTER 10/30VDC
952051890 S5-5-F8-92-SG-ST2 RECEIVER 10/30VDC
952051870 S5-5-G8-62-SG-ST2 EMITTER, 10/30Vdc, Type 2
952051890 S5-5-F8-92-SG-ST2 RECEIVER, 10/30Vdc. Type 2

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
895000006 SWING-18
95ACC1370 SP-40 MOUNTING BRACKET TUBOLAR
95ACC1380 MICRO-18 M18 support w.micrometric adju
95ACC1900 SE-DM 150 deviating mirror h=150mm
95ACC5220 JOINT-18
95ASE1120 CS-A1-02-U-03 4-pole M12 cable (axial) 3 m
95ASE1130 CS-A1-02-U-05 4-pole M12 cable (axial) 5 m
95ASE1140 CS-A1-02-U-10 4-pole M12 cable (axial) 5 m
95ASE1150 CS-A1-02-U-15 4-pole M12 cable (axial) 15 m
95ASE1160 CS-A1-02-U-25 4-pole M12 cable (axial) 25 m

Download

Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
S5-SG safetyphotocells manual rev B de Manuals 513 KB
S5-SG safetyphotocells manual rev B e Manuals 512 KB
S5-SG safetyphotocells manual rev B es Manuals 515 KB
S5-SG safetyphotocells manual rev B fr Manuals 577 KB
S5-SG safetyphotocells manual rev B i Manuals 565 KB



Safety - Photocells: S5-SG-ST4

Info

The emitter-receiver photocells of the S5-F/G-SG-ST4 series have been homologated to function with the control units of the SG-BWS series that together form a Type 4 safety system conforming with the EN 954-1 and EN ISO 13849-1 Standards. The particular characteristics of these photocells, immediately identified by the yellow data label, mainly consist in the effective aperture beam angle and in the presence of the test input, according to the IEC 61496-2 Standard and infrared emission reaching 8m.

Features & Benefits

  • Wide range: suitable for all the industrial applications
  • Tubular versions : to improve installation capability and to adapt the sensor to the mechanical parts of the machine
  • Excellent operating distance: to guarantee high application flexibility

Applications

This product series has been developed to satisfy to requirements of the following reference applications:

  • Automatic warehouse
  • Machines for food packaging
  • Robots
  • Automatic assembling lines
  • Machines for PCB production

Models

The product series offers the following models:

Ordering Codes

Description
952051910 S5-5-G8-62-SG-ST4 EMITTER 10/30VDC
952051930 S5-5-F8-92-SG-ST4 RECEIVER 10/30VDC

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
895000006 SWING-18
95ACC1370 SP-40 MOUNTING BRACKET TUBOLAR
95ACC1380 MICRO-18 M18 support w.micrometric adju
95ACC1900 SE-DM 150 deviating mirror h=150mm
95ACC5220 JOINT-18
95ASE1120 CS-A1-02-U-03 4-pole M12 cable (axial) 3 m
95ASE1130 CS-A1-02-U-05 4-pole M12 cable (axial) 5 m
95ASE1140 CS-A1-02-U-10 4-pole M12 cable (axial) 5 m
95ASE1150 CS-A1-02-U-15 4-pole M12 cable (axial) 15 m
95ASE1160 CS-A1-02-U-25 4-pole M12 cable (axial) 25 m

Download

Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
S5-SG safetyphotocells manual rev B de Manuals 513 KB
S5-SG safetyphotocells manual rev B e Manuals 512 KB
S5-SG safetyphotocells manual rev B es Manuals 515 KB
S5-SG safetyphotocells manual rev B fr Manuals 577 KB
S5-SG safetyphotocells manual rev B i Manuals 565 KB



Safety - Photocells: SL5-SG-ST4

Info

The emitter-receiver photocells of the SL5-F/G-SG-ST4 series have been homologated to function with the control units of the SG-BWS series that together form Type 4 safety system conforming with the EN 954-1 and EN ISO 13849-1 Standards. The particular characteristics of these photocells, immediately identified by the yellow data label, mainly consist in the effective aperture beam angle and in the presence of the test input, according to the IEC 61496-2 Standard and Laser Class 1 emission reaching 40 m.

Features & Benefits

  • Wide range: suitable for all the industrial applications
  • Tubular versions : to improve installation capability and to adapt the sensor to the mechanical parts of the machine
  • Excellent operating distance: to guarantee high application flexibility

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Automatic warehouse
  • Machines for food packaging
  • Robots
  • Automatic assembling lines
  • Machines for PCB production

Models

The product series offers the following models:

Ordering Codes

Description
952501160 SL5-5-G-82-SG-ST4 LASER EMI 40m M12
952501170 SL5-5-F-92-SG-ST4 REC 40m PNP LIGHT M12

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
895000006 SWING-18
95ACC1370 SP-40 MOUNTING BRACKET TUBOLAR
95ACC1380 MICRO-18 M18 support w.micrometric adju
95ACC1900 SE-DM 150 deviating mirror h=150mm
95ACC5220 JOINT-18

Download

Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB



Safety - Photocells: S300-SG-ST2

Info

The emitter-receiver photocells of the S300-F/G-SG-ST series have been homologated to function with the control units of the SG-BWS series that together form a safety system of Type 2 conforming with the EN 954-1 and EN ISO 13849-1 Standards. S300 are MAXI format photocells with infrared emission and operating range reaching 50m. Together with standard models DEFOGGING MODELS with heated front glass are available for applications where sudden changes of the temperature in the nearby of the sensor are causing condensation.
All models are eqipped with M12 4-pole connector: no cable or terminal block
models are available. LEDs signal both the operating status and correct alignment of the safety photocells.

Features & Benefits

  • Wide range: suitable for all the industrial applications
  • Sensor housing in only one structure with fiber loading: to improve housing toughness and guarantee plant reliability
  • Excellent operating distance: to guarantee high application flexibility
  • Defogging system: to avoid lens condensation and to improve both the reliability and process production of the plant

Applications

Extreme reliability and simplicity make the sx -f/g-sg -st together with SG-BWS control units the ideal solution for the following applications:
  • Automatic warehouses
  • Machines for food packaging
  • Robots
  • Automatic assembling lines

Models

The product series offers the following models:

Ordering Codes

Description
951451320 S300-PR-5-G00-EX-SG-ST2
951451330 S300-PR-5-G00-EX-M-SG-ST2
951451340 S300-PR-5-f00-OC-SG-ST2
951451350 S300-PR-5-f00-OC-M-SG-ST2

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC2830 ST-5099
95ACC2840 ST-5100
95A901380 DataVS-MK-01
95ASE1120 CS-A1-02-U-03 4-pole M12 cable (axial) 3 m
95ASE1130 CS-A1-02-U-05 4-pole M12 cable (axial) 5 m
95ASE1140 CS-A1-02-U-10 4-pole M12 cable (axial) 5 m
95ASE1150 CS-A1-02-U-15 4-pole M12 cable (axial) 15 m
95ASE1160 CS-A1-02-U-25 4-pole M12 cable (axial) 25 m

Download

Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
S300FG-ST safetyphotocells manual rev B de Manuals 550 KB
S300FG-ST safetyphotocells manual rev B e Manuals 586 KB
S300FG-ST safetyphotocells manual rev B es Manuals 550 KB
S300FG-ST safetyphotocells manual rev B fr Manuals 550 KB
S300FG-ST safetyphotocells manual rev B i Manuals 557 KB
SX FG SG ST safetyphotocells datasheet e Datasheet 2 MB
SX FG SG ST safetyphotocells datasheet i Datasheet 2 MB



Safety - Photocells: S300-SG-ST4

Info

The emitter-receiver photocells of the S300-F/G-SG-ST series have been homologated to function with the control units of the SG-BWS series that together form a safety system of Type 4 conforming with the EN 954-1 and EN ISO 13849-1 Standards. S300 are MAXI format photocells with infrared emission and operating range reaching 40m. Together with standard models DEFOGGING MODELS with heated front glass are available for applications where sudden changes of the temperature in the nearby of the sensor are causing condensation.
All models are eqipped with M12 4-pole connector: no cable or terminal blockmodels are available. LEDs signal both the operating status and correct alignment of the safety photocells.

Features & Benefits

  • Wide range: suitable for all the industrial applications
  • Sensor housing in only one structure with fiber loading: to improve housing toughness and guarantee plant reliability
  • Excellent operating distance: to guarantee high application flexibility
  • Defogging system: to avoid lens condensation and to improve both the reliability and process production of the plant

Applications

Extreme reliability and simplicity make the sx -f/g-sg -st together with SG-BWS control units the ideal solution for the following applications:
  • Automatic warehouses
  • Machines for food packaging
  • Robots
  • Automatic assembling lines

Models

The product series offers the following models:

Ordering Codes

Description
951451360 S300-PR-5-G00-EX-SG-ST4
951451370 S300-PR-5-G00-EX-M-SG-ST4
951451380 S300-PR-5-f00-OC-SG-ST4
951451390 S300-PR-5-f00-OC-M-SG-ST4

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC2830 ST-5099
95ACC2840 ST-5100
95A901380 DataVS-MK-01
95ASE1120 CS-A1-02-U-03 4-pole M12 cable (axial) 3 m
95ASE1130 CS-A1-02-U-05 4-pole M12 cable (axial) 5 m
95ASE1140 CS-A1-02-U-10 4-pole M12 cable (axial) 5 m
95ASE1150 CS-A1-02-U-15 4-pole M12 cable (axial) 15 m
95ASE1160 CS-A1-02-U-25 4-pole M12 cable (axial) 25 m

Download

Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
SX FG SG ST safetyphotocells datasheet e Datasheet 2 MB
