E-Catalog > Safety Sensors > Light Curtains - Finger

PAGE VIEW : 13,057

Product Information :

Name :
Light Curtains - Finger
Category :
  1. ไฟฟ้าและอิเล็กทรอนิกส์
Sub - Category :
  1. Safety Sensors
Brand :
Datalogic
Model :

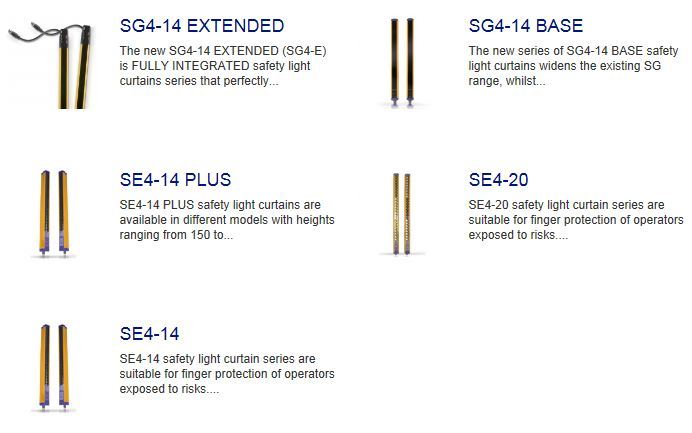

SG4-14 EXTENDED, SG4-14 BASE, SE4-14 PLUS, SE4-20, SE4-14
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
SG4-14 EXTENDED The new SG4-14 EXTENDED (SG4-E) is FULLY INTEGRATED safety light curtains series that perfectly... SG4-14 BASE The new series of SG4-14 BASE safety light curtains widens the existing SG range, whilst... SE4-14 PLUS SE4-14 PLUS safety light curtains are available in different models with heights ranging from 150 to... SE4-20 SE4-20 safety light curtain series are suitable for finger protection of operators exposed to risks.... SE4-14 SE4-14 safety light curtain series are suitable for finger protection of operators exposed to risks....

Product Detail :



Safety - Light Curtains - Finger: SG4-14 EXTENDED Info

The new SG4-14 EXTENDED (SG4-E) is FULLY INTEGRATED safety light curtains series that perfectly combine the SAFEasy concept with applicative flexibility, reliability and performance. TOTALLY ZERO DEAD ZONE is the distinctive characteristic of all the models from 300 mm to 1800 mm of controlled and overall height SG4-14 EXTENDED series guarantees full application coverage thanks its integrated and configurable Cascade, Muting and Blanking functions all in the same part number.
All functions are selectable and configurable in 2 different ways :
● Basic Configuration Mode (BCM) : push buttons located on both TX and RX allow the user to configure the device in a very easy and quick way;
● Advanced Configuration Mode (ACM) : a GUI interface on PC communicate to the barrier through Ethernet and lead the customer through the configuration process step by step.

Features & Benefits

• Type 4
• 14 mm Resolution
• Zero Dead Zone
• Up To 7 M Operating Distance
• 300…1800 Mm Controlled Height
• Basic Configuration Mode (BCM) Through Push-Buttons
• Advanced Configuration Mode (ACM) Through GUI
• CASCADE (No Differentiation Between Master And Slave Models)
• Integrated MUTING Function
• Integrated BLANKING Function
• Accessory Dongle For:
o Configuration Cloning
o Ethernet (Tcp/Ip connection)
o Remote Monitoring
o Remote Programming

Applications

• Automotive
• Packaging
• Metalworking
• Woodworking
• Electronics

Models



Ordering Codes

Description

957901240

SG4-14-030-OO-P 14mm res PROGRAMMABLE

957901250

SG4-14-045-OO-P 14mm res PROGRAMMABLE

957901260

SG4-14-060-OO-P 14mm res PROGRAMMABLE

957901270

SG4-14-075-OO-P 14mm res PROGRAMMABLE

957901280

SG4-14-090-OO-P 14mm res PROGRAMMABLE

957901290

SG4-14-105-OO-P 14mm res PROGRAMMABLE

957901300

SG4-14-120-OO-P 14mm res PROGRAMMABLE

957901310

SG4-14-135-OO-P 14mm res PROGRAMMABLE

957901320

SG4-14-150-OO-P 14mm res PROGRAMMABLE

957901330

SG4-14-165-OO-P 14mm res PROGRAMMABLE

957901340

SG4-14-180-OO-P 14mm res PROGRAMMABLE

Download

sg extended ds w de short Datasheet 2 MB
sg extended ds w e short version Datasheet 2 MB
sg extended ds w i Datasheet 7 MB
sg extended ds w i short version Datasheet 2 MB
SG EXTENDED GUI 1.0.1 MSI WITHOUT DOT NET SW & Utilities 21 MB
sg-extended datasheet en Datasheet 7 MB
SG4E DONGLE safetylightcurtains manual Rev00 deu Manuals 333 KB
SG4E DONGLE safetylightcurtains manual Rev00 eng Manuals 332 KB
SG4E DONGLE safetylightcurtains manual Rev00 esp Manuals 327 KB
SG4E DONGLE safetylightcurtains manual Rev00 fra Manuals 334 KB
SG4E DONGLE safetylightcurtains manual Rev00 ita Manuals 331 KB
SG4E safetylightcurtains manual Rev01 2012 deu Manuals 3 MB
SG4E safetylightcurtains manual Rev01 2012 eng Manuals 3 MB
SG4E safetylightcurtains manual Rev01 2012 esp Manuals 3 MB
SG4E safetylightcurtains manual Rev01 2012 fra Manuals 3 MB
SG4E safetylightcurtains manual Rev01 2012 ita Manuals 3 MB
SG4E safetylightcurtains quickguide Rev00 deu Quick Manuals 177 KB
SG4E safetylightcurtains quickguide Rev00 eng Quick Manuals 168 KB
SG4E safetylightcurtains quickguide Rev00 esp Quick Manuals 170 KB
SG4E safetylightcurtains quickguide Rev00 fra Quick Manuals 193 KB
SG4E safetylightcurtains quickguide Rev00 ita Quick Manuals 175 KB



Safety - Light Curtains - Finger: SG4-14 BASE

Info

The new series of SG4-14 BASE safety light curtains widens the existing SG range, whilst representing an evolution of the SE4-14 PLUS line, offering a Type 4 safety light device for hand protection with base functions. Ideal for applications that do not require complementary functions such as Muting, Cascade and Blanking. The new SG4-B series has been especially developed to simplify installation, connection, configuration and use.

Features & Benefits

  • 19m operating distance (30mm version): The increased operating distance allows to solve a wider application range, including those with deviating mirrors.
  • Reduced response time: The product can be installed very close to the dangerous area thanks to the extremely low response time and thus reducing the machine dimensions.
  • Rotating brackets: Installation in reduced spaces. The possibility of adjusting the rotation angle along the product axis facilitates the optic alignment also in extreme conditions.
  • EDM function: Allows the connection of the safety light curtain to a couple of forced-guided safety relays and thus guaranteeing economical advantage.
  • Compatibility with SE4-PLUS "EDM": Possible replacement with SG4-B in applications where SE4-PLUS "EDM" was previously installed without modifying the machine structure and the main electrical connections
  • 7 segment display: The 7 segment display present on both units facilitates the use of the product, improving the comprehension of the diagnostic messages through an alphanumeric 1 digit code.
  • Alignment aid function: The guided alignment procedure eases and speeds up product installation. The alignment degree of the two units is visualised on the RX display.

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Automatic machines;
  • Packaging and cutting machines;
  • Textile, wood-working and ceramic machines;
  • Automatic assembling lines;
  • Milling, lathe and shearing machines;
  • Bending and metal-working machines.

Models

The product series offers the following models:

Ordering Codes

Description
957901000 SG4-14-015-OO-E 14mm RES EDM
957901010 SG4-14-030-OO-E 14mm RES EDM
957901020 SG4-14-045-OO-E 14mm RES EDM
957901030 SG4-14-060-OO-E 14mm RES EDM
957901040 SG4-14-075-OO-E 14mm RES EDM
957901050 SG4-14-090-OO-E 14mm RES EDM
957901060 SG4-14-105-OO-E 14mm RES EDM
957901070 SG4-14-120-OO-E 14mm RES EDM
957901080 SG4-14-135-OO-E 14mm RES EDM
957901090 SG4-14-150-OO-E 14mm RES EDM
957901100 SG4-14-165-OO-E 14mm RES EDM
957901110 SG4-14-180-OO-E 14mm RES EDM

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC1630 TP-14 test piece Ø 14mm L = 300mm
95ACC1670 ST-KSTD kit 4pcs std mounting brackets
95ACC1680 ST-K4OR kit 4pcs orientable supports
95ACC1690 ST-K6OR kit 6pcs orientable supports
95ACC1700 ST-K4AV kit 4pcs anti vibration supports
95ACC1710 ST-K6AV kit 6pcs anti vibration supports
95ACC1730 SE-S 800 column and floor stand h=800mm
95ACC1740 SE-S 1000 column and floor stand h1000mm
95ACC1750 SE-S 1200 column and floor stand h1200mm
95ACC1760 SE-S 1500 column and floor stand h1500mm
95ACC1770 SE-S 1800 column and floor stand h1800mm
95ACC1780 SE-P 150 protective stand h=273mm
95ACC1790 SE-P 300 protective stand h=420mm
95ACC1800 SE-P 450 protective stand h=567mm
95ACC1810 SE-P 600 protective stand h=714mm
95ACC1820 SE-P 750 protective stand h=861mm
95ACC1830 SE-P 800 protective stand h=969mm
95ACC1840 SE-P 900 protective stand h=1069mm
95ACC1850 SE-P 1050 protective stand h=1155mm
95ACC1860 SE-P 1200 protective stand h=1302mm
95ACC1870 SE-P 1350 protective stand h=1449mm
95ACC1880 SE-P 1500 protective stand h=1596mm
95ACC1890 SE-P 1650 protective stand h=1743mm
95ACC1900 SE-DM 150 deviating mirror h=150mm
95ACC1910 SE-DM 500 deviating mirror h=550mm
95ACC1920 SE-DM 600 deviating mirror h=700mm
95ACC1930 SE-DM 800 deviating mirror h=900mm
95ACC1940 SE-DM 900 deviating mirror h=1000mm
95ACC1950 SE-DM 1200 deviating mirror h=1270mm
95ACC1960 SE-DM 1500 deviating mirror h=1600mm
95ACC1970 SE-DM 1650 deviating mirror h=1800mm
95ACC6170 SE-SR2 TYPE 4 SAFETY RELAY 3NO 1NC
95ASE1100 ST-KP4MP KIT 4 PCS. PLASTIC BRACKETS
95ASE1110 ST-KP6MP KIT 6 PCS. PLASTIC BRACKETS
95ASE1280 ST-K4ROT KIT 4pcs ROTATING BRACKETS

Download

Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
Safety Product SIL PL classification 4 0 Certifications 212 KB
SG4 FINGER safety light curtains Quick Manuals 120 KB
SG4 FINGER safety light curtains Quick Manuals 117 KB
SG4 FINGER safety light curtains Quick Manuals 116 KB
SG4 FINGER safety light curtains Quick Manuals 123 KB
SG4 finger safetylightcurtains datasheet e Datasheet 3 MB
SG4 FINGER safetylightcurtains datasheet f Datasheet 384 KB
SG4 FINGER safetylightcurtains datasheet g Datasheet 391 KB
SG4 finger safetylightcurtains datasheet i Datasheet 3 MB
SG4 FINGER safetylightcurtains leaflet e Leaflets 855 KB
SG4 FINGER safetylightcurtains leaflet f Leaflets 926 KB
SG4 FINGER safetylightcurtains leaflet g Leaflets 1,004 KB
SG4 FINGER safetylightcurtains leaflet i Leaflets 428 KB
SG4 FINGER safetylightcurtains leaflet s Leaflets 902 KB
SG4B safetylightcurtains manual rev D de Manuals 1 MB
SG4B safetylightcurtains manual rev D e Manuals 2 MB
SG4B safetylightcurtains manual rev D es Manuals 2 MB
SG4B safetylightcurtains manual rev D fr Manuals 2 MB
SG4B safetylightcurtains manual rev D i Manuals 2 MB



Safety - Light Curtains - Finger: SE4-14 PLUS

Info

SE4-14 PLUS safety light curtains are available in different models with heights ranging from 150 to 1200 mm, 14 mm resolution and operating distance reaching 6 m. Each model has one or more advanced functions: EDM, Blanking and Cascade.
Specific dip-switches, guarantee a rapid and safe configuration. The compact dimensions (35x40 mm), easy installation and excellent performances make the SAFEasy™ light curtains suitable to industrial applications requiring operator safety.

Applications

This product series has been developed to satisfy to requirements of the following reference applications:

  • Automatic machines
  • Wood working machines, glass working machines, ceramics working machines, etc.
  • Automatic and semi-automatic assembly lines
  • Presses, punching machines, benders and cutters

Models

The product series offers the following models:

Ordering Codes

Description
957202000 SE4-14-015-PP-B 14 mm res BLANKING
957202010 SE4-14-030-PP-B 14 mm res BLANKING
957202020 SE4-14-045-PP-B 14 mm res BLANKING
957202030 SE4-14-060-PP-B 14 mm res BLANKING
957202040 SE4-14-075-PP-B 14 mm res BLANKING
957202050 SE4-14-090-PP-B 14 mm res BLANKING
957202060 SE4-14-105-PP-B 14 mm res BLANKING
957202070 SE4-14-120-PP-B 14 mm res BLANKING
957202200 SE4-14-015-PP-M 14 mm res MASTER
957202210 SE4-14-030-PP-M 14 mm res MASTER
957202220 SE4-14-045-PP-M 14 mm res MASTER
957202230 SE4-14-060-PP-M 14 mm res MASTER
957202240 SE4-14-075-PP-M 14 mm res MASTER
957202250 SE4-14-090-PP-M 14 mm res MASTER
957202260 SE4-14-105-PP-M 14 mm res MASTER
957202270 SE4-14-120-PP-M 14 mm res MASTER
957202400 SE4-14-015-PP-N 14 mm res MASTER BLANKIN
957202410 SE4-14-030-PP-N 14 mm res MASTER BLANKIN
957202420 SE4-14-045-PP-N 14 mm res MASTER BLANKIN
957202430 SE4-14-060-PP-N 14 mm res MASTER BLANKIN
957202440 SE4-14-075-PP-N 14 mm res MASTER BLANKIN
957202450 SE4-14-090-PP-N 14 mm res MASTER BLANKIN
957202460 SE4-14-105-PP-N 14 mm res MASTER BLANKIN
957202470 SE4-14-120-PP-N 14 mm res MASTER BLANKIN
957202600 SE4-14-015-PP-S 14 mm res SLAVE
957202610 SE4-14-030-PP-S 14 mm res SLAVE
957202620 SE4-14-045-PP-S 14 mm res SLAVE
957202630 SE4-14-060-PP-S 14 mm res SLAVE
957202640 SE4-14-075-PP-S 14 mm res SLAVE
957202650 SE4-14-090-PP-S 14 mm res SLAVE
957202660 SE4-14-105-PP-S 14 mm res SLAVE
957202670 SE4-14-120-PP-S 14 mm res SLAVE

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC1630 TP-14 test piece Ø 14mm L = 300mm
95ACC1670 ST-KSTD kit 4pcs std mounting brackets
95ACC1680 ST-K4OR kit 4pcs orientable supports
95ACC1690 ST-K6OR kit 6pcs orientable supports
95ACC1700 ST-K4AV kit 4pcs anti vibration supports
95ACC1710 ST-K6AV kit 6pcs anti vibration supports
95ACC1730 SE-S 800 column and floor stand h=800mm
95ACC1740 SE-S 1000 column and floor stand h1000mm
95ACC1750 SE-S 1200 column and floor stand h1200mm
95ACC1760 SE-S 1500 column and floor stand h1500mm
95ACC1770 SE-S 1800 column and floor stand h1800mm
95ACC6170 SE-SR2 TYPE 4 SAFETY RELAY 3NO 1NC
95ASE1100 ST-KP4MP KIT 4 PCS. PLASTIC BRACKETS
95ASE1110 ST-KP6MP KIT 6 PCS. PLASTIC BRACKETS

Download

Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
SE4-PLUS FINGER safetylightcurtains datasheet e Datasheet 385 KB
SE4-PLUS FINGER safetylightcurtains datasheet f Datasheet 174 KB
SE4-PLUS FINGER safetylightcurtains datasheet g Datasheet 862 KB
SE4-PLUS FINGER safetylightcurtains datasheet i Datasheet 172 KB



Safety - Light Curtains - Finger: SE4-20

Info

SE4-20 safety light curtain series are suitable for finger protection of operators exposed to risks. Different models with six standard heights ranging from 150 to 1650 mm, with 20 mm resolution and operating distance reaching 6 m are available. Specific dip-switches, present on the receiver guarantee rapid and safe device setting. The operator is thus able to configure, according to the specific needs, the manual or automatic Restart, as well as the Muting and partial Muting functions.

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Automatic machines
  • Packaging machines, handling machines, storing machines
  • Wood working machines, glass working machines, ceramics working machines, etc.
  • Automatic and semi-automatic assembly lines
  • Automatic warehouses
  • Presses, punching machines, benders and cutters

Models

The product series offers the following models:

Ordering Codes

Description
957201250 SE4-20-060-PP-W 20mm RES PNP-PNP NO-NO
957201270 SE4-20-015-PP-W 20mm res pnp-pnp no-no
957201280 SE4-20-030-PP-W 20mm res pnp-pnp no-no
957201290 SE4-20-045-PP-W 20mm res pnp-pnp no-no
957201300 SE4-20-075-PP-W 20mm res pnp-pnp no-no
957201310 SE4-20-090-PP-W 20mm res pnp-pnp no-no
957201320 SE4-20-105-PP-W 20mm res pnp-pnp no-no
957201330 SE4-20-120-PP-W 20mm res pnp-pnp no-no
957201340 SE4-20-135-PP-W 20mm res pnp-pnp no-no
957201350 SE4-20-150-PP-W 20mm res pnp-pnp no-no
957201360 SE4-20-165-PP-W 20mm res pnp-pnp no-no

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC1640 TP-20 test piece Ø 20mm L = 300mm
95ACC1670 ST-KSTD kit 4pcs std mounting brackets
95ACC1680 ST-K4OR kit 4pcs orientable supports
95ACC1690 ST-K6OR kit 6pcs orientable supports
95ACC1700 ST-K4AV kit 4pcs anti vibration supports
95ACC1710 ST-K6AV kit 6pcs anti vibration supports
95ACC1730 SE-S 800 column and floor stand h=800mm
95ACC1740 SE-S 1000 column and floor stand h1000mm
95ACC1750 SE-S 1200 column and floor stand h1200mm
95ACC1760 SE-S 1500 column and floor stand h1500mm
95ACC1770 SE-S 1800 column and floor stand h1800mm
95ACC1780 SE-P 150 protective stand h=273mm
95ACC1790 SE-P 300 protective stand h=420mm
95ACC1800 SE-P 450 protective stand h=567mm
95ACC1810 SE-P 600 protective stand h=714mm
95ACC1820 SE-P 750 protective stand h=861mm
95ACC1830 SE-P 800 protective stand h=969mm
95ACC1840 SE-P 900 protective stand h=1069mm
95ACC1850 SE-P 1050 protective stand h=1155mm
95ACC1860 SE-P 1200 protective stand h=1302mm
95ACC1870 SE-P 1350 protective stand h=1449mm
95ACC1880 SE-P 1500 protective stand h=1596mm
95ACC1890 SE-P 1650 protective stand h=1743mm
95ACC1900 SE-DM 150 deviating mirror h=150mm
95ACC1910 SE-DM 500 deviating mirror h=550mm
95ACC1920 SE-DM 600 deviating mirror h=700mm
95ACC1930 SE-DM 800 deviating mirror h=900mm
95ACC1940 SE-DM 900 deviating mirror h=1000mm
95ACC1950 SE-DM 1200 deviating mirror h=1270mm
95ACC1960 SE-DM 1500 deviating mirror h=1600mm
95ACC1970 SE-DM 1650 deviating mirror h=1800mm
95ACC1990 LMS-1 modular muting lamp
95ACC2000 LMS-2 muting lamp horizontal fixing
95ACC2010 LMS-3 muting lamp vertical fixing
95ACC2020 SU-LMS-1A basic module for LMS-1
95ACC2030 SU-LMS-1B tower module for LMS-1
95ACC6170 SE-SR2 TYPE 4 SAFETY RELAY 3NO 1NC
95ASE1100 ST-KP4MP KIT 4 PCS. PLASTIC BRACKETS
95ASE1110 ST-KP6MP KIT 6 PCS. PLASTIC BRACKETS
95ASE1830 LMS MUTING SIGNAL DEVICE

Download

Product Guide Sensors Safet Measurement e Product Guides 3 MB
Product Guide Sensors Safet Measurement f Product Guides 2 MB
Product Guide Sensors Safet Measurement i Product Guides 2 MB
Product Guide Sensors Safet Measurement s Product Guides 3 MB
SE4-FINGER safetylightcurtains datasheet c Datasheet 781 KB
SE4-FINGER safetylightcurtains datasheet e Datasheet 764 KB
SE4-FINGER safetylightcurtains datasheet f Datasheet 765 KB
SE4-FINGER safetylightcurtains datasheet g Datasheet 805 KB
SE4-FINGER safetylightcurtains datasheet i Datasheet 780 KB



Safety - Light Curtains - Finger: SE4-14

Info

SE4-14 safety light curtain series are suitable for finger protection of operators exposed to risks. Different models with six standard heights ranging from 150 to 900mm, with 14mm resolution and operating distance reaching 6m are available. Specific dip-switches, present on the receiver guarantee rapid and safe device setting. The operator is thus able to configure, according to the specific needs, the manual or automatic Restart, as well as the Muting and partial Muting functions.

Applications

This product series has been developed to satisfy to requirements of the following reference applications:

  • Automatic machines
  • Packaging machines, handling machines, storing machines
  • Wood working machines, glass working machines, ceramics working machines, etc.
  • Automatic and semi-automatic assembly lines
  • Automatic warehouses
  • Presses, punching machines, benders and cutters

Models

The product series offers the following models:

Ordering Codes

Description
957201150 SE4-14-015-PP-W 14mm res pnp-pnp no-no
957201160 SE4-14-030-PP-W 14mm res pnp-pnp no-no
957201170 SE4-14-045-PP-W 14mm res pnp-pnp no-no
957201180 SE4-14-060-PP-W 14mm res pnp-pnp no-no
957201190 SE4-14-075-PP-W 14mm res pnp-pnp no-no
957201370 SE4-14-090-PP-W 14mm res pnp-pnp no-no

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description
95ACC1630 TP-14 test piece Ø 14mm L = 300mm
95ACC1670 ST-KSTD kit 4pcs std mounting brackets
95ACC1680 ST-K4OR kit 4pcs orientable supports
95ACC1690 ST-K6OR kit 6pcs orientable supports
95ACC1700 ST-K4AV kit 4pcs anti vibration supports
95ACC1710 ST-K6AV kit 6pcs anti vibration supports
95ACC1730 SE-S 800 column and floor stand h=800mm
95ACC1740 SE-S 1000 column and floor stand h1000mm
95ACC1750 SE-S 1200 column and floor stand h1200mm
95ACC1760 SE-S 1500 column and floor stand h1500mm
95ACC1770 SE-S 1800 column and floor stand h1800mm
95ACC1990 LMS-1 modular muting lamp
95ACC2000 LMS-2 muting lamp horizontal fixing
95ACC2010 LMS-3 muting lamp vertical fixing
95ACC2020 SU-LMS-1A basic module for LMS-1
95ACC2030 SU-LMS-1B tower module for LMS-1
95ACC6170 SE-SR2 TYPE 4 SAFETY RELAY 3NO 1NC
95ASE1100 ST-KP4MP KIT 4 PCS. PLASTIC BRACKETS
95ASE1110 ST-KP6MP KIT 6 PCS. PLASTIC BRACKETS
95ASE1830 LMS MUTING SIGNAL DEVICE

Download




Other Product In Group "Safety Sensors (6)"

Safety Accessories
Safety - Photocells
Light Curtains - Presence
Light Curtains - Hand
Light Curtains - Body
Control Unit
View All
