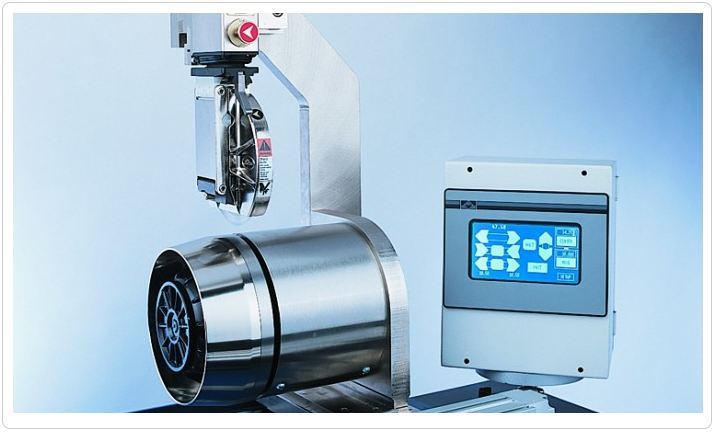

Reduce waste and increase productivity with Tidlands Edge-Trim, a self-contained shear slitting unit for continuously moving flexible webs. Blade setup time is virtually eliminated during trim changes by quickly repositioning the knife pair (upper and lower blades) simultaneously, without disturbing the slit geometry to maintain the highest level of trim quality.
The Edge-Trim is available in manual or automated configurations.
Key Features:
-
Advanced design allows for trim changes and blade replacement on the fly, reducing downtime and waste
Built tough for reliable operations in rugged environments
Automatically maintains critical blade-to-anvil relationship, greatly reducing setup time while ensuring trimming accuracy
C-Frame allows trim up to 167.6 mm (6.6 inches), with maximum possible trim of 381 mm (15 inches)
Modular and flexible for a wide range of operations
Compact and rugged control console enables many mounting options
Can be configured to run from PC via stand-alone program or existing Human Machine Interface (HMI)
Trim cut-off option
Manual to automatic upgrade available
Specifications:
-
�
Automated Version
Simplified Connections Requires only 110 (or 220) VAC single-phase power and two easy-to-wire interconnect lines between the touchscreen control and edge trim units. Input air connections are (also) required for the knife control and pneumatic brakes RS-485 communication and 24 VDC power cables Touch Screen Industrial touch screen PC Actuator Lead screw actuator with stepper motor Control Console Compact and rugged control console enables many mounting options Anvil Motors Ziehl-Abegg 3-phase External-Rotor-AC dust sealed motors enable a wide range of operating speeds and torque values. Gear reducers are available for slow speed applications Additional Options Available Integration Can be configured to run from customers PC via stand-alone program or an existing Human Machine Interface (i.e. RsView32, Wonderware) Automated Controls User-friendly, intuitive operations and touch-screen controls Highly accurate absolute web width patterns Incremental positioning Position accuracy of ± 0.2 mm (0.008 inch) Automated or Manual Version Construction Heavy duty steel construction with non-corrosive nickel plated finish Knifeholders Performance Series Class II and Class III Carriage Design Modular mounts (bottom and back mount available), linear bearings, critical blade geometry is maintained as the unit is positioned Trim Widths Standard trim support 142.2 mm (5.6 inches) (narrower and wider supports are available) Maximum trim of 381 mm (15 inches) possible Remote Positioning Optional lead screw and handwheel with mechanical readout (manual version only) �
