E-Catalog > Automatic Slitting Systems > Slitter Model SP-500
Product Detail :

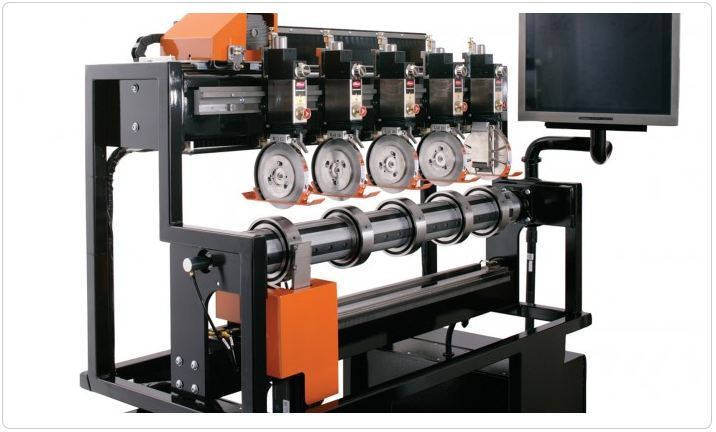

The Tidland Slitter Model SP-500 will help operators run more efficiently by increasing the speed and accuracy of knife positioning and minimizing the frequency and complexity of maintenance -- two of the main factors in realizing a quick return on investment. This slitter provides the best mix of new technology and proven performance as it is designed to improve profitability and production efficiency by increasing positioning speed, accuracy, and consistency.
Key Features:
Highly accurate, consistent operation
Increased operator safety by reducing contact with blades
Improve blade life, delivering higher quality edges and noticeable dust reduction
Easy-to-use interface via a PC or existing HMI
The most effective mix of new technology and the proven Performance Series Knifeholder
Specifications:
| Minimum Slit Width | Maximum Designated Speed* |
Pneumatic Requirement |
Electrical Requirement |
Knifeholder Positioning Speed | Knife Positioning Accuracy | |
| Class II Standard | 50.8 mm (2 inches) |
1,676 mpm (5,000 fpm) |
80-100 psi (nominal) |
20 AMP, 220 VAC |
10 knives in approx. 2 minutes |
0.2 mm (+/- 0.008 inch) |
| Class III Standard | 76.2 mm (3 inches) |
3,048 mpm (10,000 fpm) |
