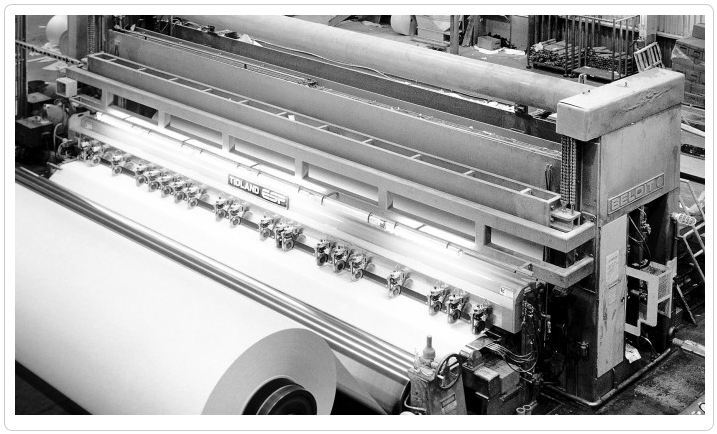

Designed to save downtime and increase productivity, Tidlands ESP - Electronic Slitter Positioning System allows an operator to move 10 knives in under one minute with the web in place with accuracy of +/- 0.1 mm (0.004 inch) deviation.
Created for use in mill finishing and other large-scale converting operations, the ESP delivers intuitive, easy-to-use touch screen interfaces and can retrofit to most winders regardless of web path. Typical materials include: coated and uncoated boards, tissue, newsprint and fine papers. This robust system has been specifically designed to perform reliably in the most demanding environments.
The ESPs modular design allows for easy upgrade from the manual version, and easy retrofitting into numerous brands of winders, offering the benefits of standardized parts. Converting to ESPs automatic system affords the benefits of trim management, unlimited set pattern memory and computer software that is easy-to-use, and can be integrated into your mill-wide systems.
Specifications:
| Knifeholder | Minimum Slit Width | Maximum Designated Speed* | Pneumatic Instrument Grade Air | Electrical 3-Phase Standard |
| Class III Standard | 152.4 mm (6 inches) |
3,048 mpm (10,000 fpm) |
80-100 psi, nominal | 460 VAC standard |
*Dependent on material and application
| System Features | Automatic | Manual |
|
ESP Channels |
x | x |
| Carriages Interchangeable and easy to remove from the front of the system from any position in the channel. |
x | x |
| Encoder Package The electronics package mounted on each carriage contains an absolute encoder that is addressable and interchangeable. RS-422 interface to PC. |
x | � |
| Performance Series Knifeholders Class III with Swing Cartridge for shear slitting. D2 steel blade with 200 mm (7.9 inches) diameter. |
x | x |
| Link Pin Manual linking mechanism used for manual positioning and calibration. |
x | x |
| Anvil Motor Assembly Ziehl-Abegg 3-phase External-Rotor-AC dust sealed motor, 0.65KW. D2 Steel or Carbide Anvil Rings. |
x | x |
| Servo Motors Allen-Bradley AC brushless servo motors with lifetime lubricated bearings. |
x | � |
| Cabinets Rittal cabinets feature nine fold frame steel construction, are free-standing and meet NEMA 12 standards. |
� | � |
| Servo Drive Cabinet Houses Allen-Bradley Ultra 3000i Servo Drives with RS-422 Interface to PC. |
x | � |
| AC Drive Cabinet Houses the Allen-Bradley AC Drive and Motor Starters. |
x | x |
| Computer Console Microsoft Windows ESP Control Software Dell PC and Industrial Grade Monitor |
x | � |
| Cables | � | � |
| Shielded twisted pair control cables up to 100 feet | x | � |
| Allen Bradley shielded servo cables up to 80 feet | x | � |
| AC Motor power cables up to 80 feet | x | x |
Additional Products Available:
Special considerations such as: Touch Screen Monitor, other AC Drives, other PC brands available upon request Class II configuration capable of 114.3 mm (4.5 inches) minimum slit width
Additional Services Available:
Integration into existing Mill computer
Interface with Mill Systems, i.e. interface to PLC for core chuck position, roll handling systems, order management, and trim optimization systems
Material slit testing by Tidland engineers
