E-Catalog > Mono Spiral Pump > MONO SPIRAL PUMP JN-TOA TYPE

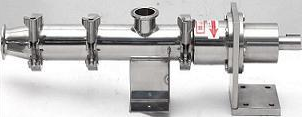

MONO SPIRAL PUMP JN-TOA TYPE JIN NONG MONO SPIRAL PUMP APPLICATION

Medium viscosity,low viscosity,containing granules,flowing liquid.

◆FOOD STUFFS
Jams, chocolate, syrups, sauces, tomato ketchup, batters, stews,sausage meats, eggs, fats, gelatin, soup, liquid sugar, molasses,honey, vinegar, preserves, soya sauce, peanut butter, jelly,chutney, mincemeat, olive oil, palm oil, chicken paste, coconut oil,cod oil, ketchup, maple syrup, marmalade, salad dressing, flavoring, pulp.

◆DAIRY PRODUCTS
Milk, curdled milk, yogurt, whey, cheese, curd, butter, margarine,oils, creams, cheese whey, mousse, custard cream cheese, pudding.

◆PAPER & CHEMICALS
Acids, alkaline, soaps, paints, dyes, lacquers, resins, lubricants,solvents, black liquors, adhesives, latex, waxes, coatings, pastes,nail polish, mascara


MONO SPIRAL PUMP JN-TOA TYPE THEORETICAL PUMP-OUT

MONO SPIRAL PUMP JN-TOA TYPE FEATURES

◆To deliver semi-solid, low water containment, high density and high viscosity liquid.
◆3-sectional universal joint allows better flexibility.
◆To deliver liquid containing air bubbles, granules, solids, and fibers.
◆The flow volume could be widely controlled.
◆With high pressure, with super self-sucking.
◆Purging with water, easy disassembly for flushing.
◆Cylinder type of shaft connection, free of risks of broken pins.
◆Precision ceramic used for shaft seal.

MONO SPIRAL PUMP JN-UF TYPE FEATURES

MONO SPIRAL PUMP JN-TOA TYPE INTERIOR WEAVE



NO	Name	Materials	NO	Name	Materials
1	Rotor	SUS #304	6	Bearing	SUJ2
2	Stator	SILICONE, VITON, NBR	7	Outlet	SUS #304, FC20
3	Connector	SUS #304	8	Inlet	SUS #304, FC20
4	Connect Rod	SUS #304	9	Shafting	SUS #304
5	Sealing	Precision Ceramic	10	Bearing Seat	FC20

1. Taiwan Patent No:105163, 111543, 119310. U.S.A. Patent No:5562360, 5685340. Germany Patent No:29605905.6  2. Cylinder type of shaft connection,free of risks of broken pins.  3. 3.sectional universal joint allow better flexibiliey.  4. Precision ceramic used for shaft seal.  5. Stainless steel material,allowing health rated.  6. Purging with water,easy disassembly for flushing.

MONO SPIRAL PUMP JN-TOA TYPE EXAMPLES     Conveying liquid into the larger capacity Bean Paste Conveyed Conveying liquid from the capacity to the  packing machine Conveying for muddy brick, sand pulp   Allowing direct pump from the storage tank for volumetric filling.
