Product Detail :

Application

◆FOOD STUFFS

Jams, chocolate, syrups, sauces, tomato ketchup, batters, stews,sausage meats, eggs, fats, gelatin, soup, liquid sugar, molasses,honey, vinegar, preserves, soya sauce, peanut butter, jelly,chutney, mincemeat, olive oil, palm oil, chicken paste, coconut oil,cod oil, ketchup, maple syrup, marmalade, salad dressing, flavoring, pulp.

◆DAIRY PRODUCTS
Milk, curdled milk, yogurt, whey, cheese, curd, butter, margarine,oils, creams, cheese whey, mousse, custard cream cheese, pudding.

◆Beverages
Beer, wines, alcohol, syrups, yeast, wort, spirits, juices, cordials,minerals, tea, water, coffee liquor, cordials, cranberry juice.

◆PAPER & CHEMICALS
Acids, alkaline, soaps, paints, dyes, lacquers, resins, lubricants,solvents, black liquors, adhesives, latex, waxes, coatings, pastes,nail polish, mascara

◆PHARMACEUTICALS
Cream, gels, serums, disinfectants, lotions, shampoos, perfumes,soaps, toothpaste, vaccines, Vaseline, antibiotics, glucose,lodine ointment, perfumes.

JN-TO TYPE THEORETICAL PUMP-OUT

Model	TO-150	TO-200	TO-300	TO-400	TO-500
Granularity (mm)	8.5	10	15	18	22
Theoretical pump-out (cc/1R)	58.7	115.4	423.6	666	1017.3

MONO SPIRAL PUMP JN-TO TYPE DIMENSIONS

Unit:mm

Model	A	B	C	D	E	F	G	H	J	ØdxN	IN	OUT	KG
TO-150	588			Ø20xW6	33	66	90	100	145	11x4	2"	1½"	19.5
TO-200	832	542	114	Ø25xW8	45	110	145	105	186	11x4	2½"	2"	30
TO-300	992	693	150	Ø30xW10	60	150	180	125	217	11x4	3"	2½"	50
TO-400	1160	790	176	Ø35xW10	65	180	220	150	260	13x4	4"	3"	74
TO-500	1350	940	196	Ø40xW12	75	220	260	160	293	13x4	4"	4"	99

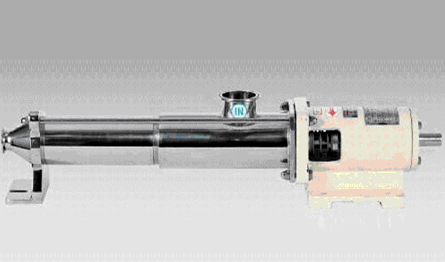

MONO SPIRAL PUMP JN-TO TYPE FEATURES

◆To deliver semi-solid, low water containment, high density and high viscosity liquid.
◆3-sectional universal joint allows better flexibility.
◆To deliver liquid containing air bubbles, granules, solids, and fibers.
◆The flow volume could be widely controlled.
◆With high pressure, with super self-sucking.
◆Purging with water, easy disassembly for flushing.
◆Cylinder type of shaft connection, free of risks of broken pins.
◆Precision ceramic used for shaft seal.

MONO SPIRAL PUMP JN-TO TYPE FEATURES

MONO SPIRAL PUMP JN-TO TYPE INTERIOR WEAVE

NO	Name	Materials	NO	Name	Materials
1	Rotor	SUS #304	6	Bearing	SUJ2
2	Stator	SILICONE, VITON, NBR	7	Outlet	SUS #304, FC20
3	Connector	SUS #304	8	Inlet	SUS #304, FC20
4	Connect Rod	SUS #304	9	Shafting	SUS #304
5	Sealing	Precision Ceramic	10	Bearing Seat	FC20

1. Taiwan Patent No:105163, 111543, 119310. U.S.A. Patent No:5562360, 5685340. Germany Patent No:29605905.6
2. Cylinder type of shaft connection,free of risks of broken pins.
3. 3.sectional universal joint allow better flexibiliey.
4. Precision ceramic used for shaft seal.
5. Stainless steel material,allowing health rated.
6. Purging with water,easy disassembly for flushing.

MONO SPIRAL PUMP JN-TO TYPE DETAILED SKETCH FOR FIXED UNIT
