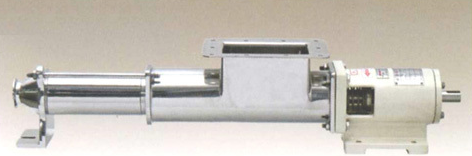

MONO SPIRAL PUMP JN-SLF TYPE JIN NONG MONO SPIRAL PUMP APPLICATION
Medium viscosity,low viscosity,containing granules,flowing liquid.
◆FOOD STUFFS
Jams, chocolate, syrups, sauces, tomato ketchup, batters, stews,sausage meats, eggs, fats, gelatin, soup, liquid sugar, molasses,honey, vinegar, preserves, soya sauce, peanut butter, jelly,chutney, mincemeat, olive oil, palm oil, chicken paste, coconut oil,cod oil, ketchup, maple syrup, marmalade, salad dressing, flavoring, pulp.
◆DAIRY PRODUCTS
Milk, curdled milk, yogurt, whey, cheese, curd, butter, margarine,oils, creams, cheese whey, mousse, custard cream cheese, pudding.
◆Beverages
Beer, wines, alcohol, syrups, yeast, wort, spirits, juices, cordials,minerals, tea, water, coffee liquor, cordials, cranberry juice.
◆PAPER & CHEMICALS
Acids, alkaline, soaps, paints, dyes, lacquers, resins, lubricants,solvents, black liquors, adhesives, latex, waxes, coatings, pastes,nail polish, mascara
◆PHARMACEUTICALS
Cream, gels, serums, disinfectants, lotions, shampoos, perfumes,soaps, toothpaste, vaccines, Vaseline, antibiotics, glucose,lodine ointment, perfumes.
MONO SPIRAL PUMP JN-SLF TYPE THEORETICAL PUMP-OUT
|
Model |
SLF-200 | SLF-300 | SLF-400 | SLF-500 |
| Granularity (mm) | 10 | 15 | 18 | 22 |
| Theoretical pump-out (cc/1R) | 115.4 | 423.6 | 666 | 1017.3 |
MONO SPIRAL PUMP JN-SLF TYPE DIMENSIONS
| Model | A | B | C | D | E | F | G | H | ØdxN | P | L | Q | ØU | R | T | S | KG |
| SLF-200 | 940 | 697 | 114 | Ø25xW8 | 45 | 110 | 145 | 105 | 11x4 | 20.5x2 | 73x3 | 21x2 | 9 | 75x2 | 175 | 106 | 33 |
| SLF-300 | 1213 | 898 | 150 | Ø30xW10 | 60 | 150 | 180 | 125 | 11x4 | 23x2 | 90x3 | 21x2 | 9 | 75x2 | 234 | 106 | 67 |
| SLF-400 | 1356 | 987 | 176 | Ø35xW10 | 65 | 180 | 220 | 150 | 13x4 | 23x2 | 66x4 | 19x2 | 10 | 88x2 | 228 | 134 | 81 |
| SLF-500 | 1570 | 1168 | 196 | Ø40xW12 | 75 | 220 | 260 | 160 | 13x4 | 23x2 | 70x5 | 22x2 | 10 | 94x2 | 305 | 146 |
108
|
MONO SPIRAL PUMP JN-SLF TYPE FEATURES
◆To deliver semi-solid, low water containment, high density and high viscosity liquid.
◆3-sectional universal joint allows better flexibility.
◆To deliver liquid containing air bubbles, granules, solids, and fibers.
◆The flow volume could be widely controlled.
◆With high pressure, with super self-sucking.
◆Purging with water, easy disassembly for flushing.
◆Cylinder type of shaft connection, free of risks of broken pins.
◆Precision ceramic used for shaft seal.
MONO SPIRAL PUMP JN-UF TYPE FEATURES
MONO SPIRAL PUMP JN-SLF TYPE INTERIOR WEAVE
|
NO |
Name | Materials |
NO |
Name | Materials |
| 1 | Rotor | SUS #304 | 6 | Bearing | SUJ2 |
| 2 | Stator | SILICONE, VITON, NBR | 7 | Outlet | SUS #304, FC20 |
| 3 | Connector | SUS #304 | 8 | Inlet | SUS #304, FC20 |
| 4 | Connect Rod | SUS #304 | 9 | Shafting | SUS #304 |
| 5 | Sealing | Precision Ceramic | 10 | Bearing Seat | FC20 |
 |
1. Taiwan Patent No:105163, 111543, 119310. U.S.A. Patent No:5562360, 5685340. Germany Patent No:29605905.6 2. Cylinder type of shaft connection,free of risks of broken pins. 3. 3.sectional universal joint allow better flexibiliey. 4. Precision ceramic used for shaft seal. 5. Stainless steel material,allowing health rated. 6. Purging with water,easy disassembly for flushing. |
MONO SPIRAL PUMP JN-SLF TYPE DETAILED SKETCH FOR FIXED UNIT
MONO SPIRAL PUMP JN-SLF TYPE EXAMPLES
 |
 |
| Conveying liquid into the larger capacity | Bean Paste Conveyed |
 |
 |
| Conveying liquid from the capacity to the packing machine |
Conveying for muddy brick, sand pulp |
 |
 |
 |
 |
| Allowing direct pump from the storage tank for volumetric filling. |
|
 |
 |
 |
 |
