E-Catalog > Knife Holder for Slitters > Blade Sharpening System
Product Detail :

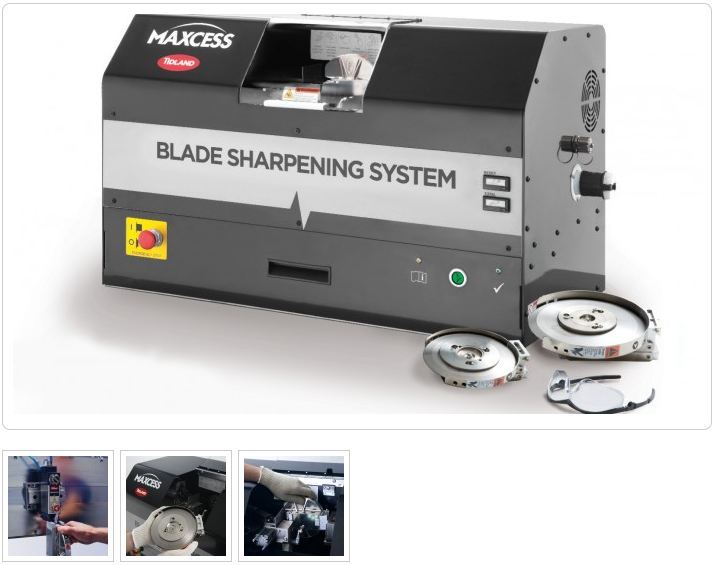

Introducing the industry’s first Blade Sharpening System. This unit sharpens blades from Tidland’s Performance Series, Series ‘C’ Swing Cartridge or e-Knifeholders in 90 seconds, without removing the blade from the cartridge or sending the blades out to be reground.
Because it’s a Tidland product, the Blade Sharpening System is easy to use. Simply remove the lower knife cartridge from a Knifeholder and place it directly into the Blade Sharpening System. Push a button, wait 60-75 seconds, and you have a freshly sharpened blade. Just one more way we are working to improve your business and your bottom line.
Key Features:
-
Sharpens blades while still on the Tidland blade cartridges
Accepts Tidland Performance Series, Series ‘C’ Swing Cartridge and e-Knifeholder Class II and Class III blade cartridges
Easy push button operation
Safely removes blade shavings
Access to Tidland’s convenient blade re-order service
Produces a freshly sharpened blade in less than 90 seconds
Specifications:
-
Machine Operation Time: 60 to 75 seconds
Dimensions: 97 cm wide x 58 cm tall x 62 cm deep (38 inches wide x 23 inches tall x 24 inches deep)
Blade Characteristics: Class II and Class III, 150 mm and 200 mm diameter
Electrical Requirement: 110 VAC, 20 A (North America), 230 VAC (Europe)
Grind Angles: 5 degrees to 50 degrees (25 degrees standard)
Safety Features: Auto shut-off, cover must be closed for operation, shockproof
Videos:
-
Tidland Blade Sharpening System
