E-Catalog > Tension Detector > Tension Detector (AB,B,C,D,E Type)

PAGE VIEW : 12,575

Product Information :

Name :

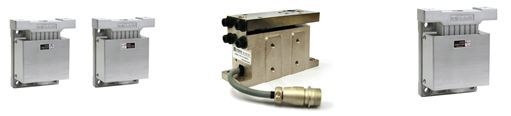

Tension Detector (AB,B,C,D,E Type)
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Tension Detector
Brand :
Pora
Model :
Model PRTL-AB,B,C,D,E type
Product Type :
  1. สินค้า, ผลิตภัณฑ์

Product Detail :



PRTL-AB,B,C,D,E type




This is an AB Type Tension Detector

※UCP bearing bracket is an option item.



COMPATIBLE CONTROLLERS

PTC-305D PTC-303D PT-104L PT-LM106D PT-LM107D

SPECIFICATIONS
Model PRTL-50AB PRTL-100AB

Rated load 50kg 100kg

Output 2.9542mV/V

Weight 1.8kg




This is a B Type Tension Detector

※UCP bearing bracket is an option item.



COMPATIBLE CONTROLLERS

PTC-305D PTC-303D PT-104L PT-LM106D PT-LM107D

SPECIFICATIONS
Model PRTL-100B

Rated load 200kg

Output 2.9542mV/V

Weight 5.25kg




This is a C Type Tension Detector

※UCP bearing bracket is an option item.



COMPATIBLE CONTROLLERS

PTC-305D PTC-303D PT-104L PT-LM106D PT-LM107D

SPECIFICATIONS
Model PRTL-500C PRTL-1000C

Rated load 500kg 1000kg

Output 2.9542mV/V

Weight 6.5kg



This is a D Type Tension Detector

※UCP bearing bracket is an option item.



COMPATIBLE CONTROLLERS

PTC-305D PTC-303D PT-104L PT-LM106D PT-LM107D

SPECIFICATIONS
Model PRTL-2000D

Rated load 2000kg

Output 2.9542mV/V

Weight 7kg









This is an E Type Tension Detector



COMPATIBLE CONTROLLERS

PTC-305D PTC-303D PT-104L PT-LM106D PT-LM107D

SPECIFICATIONS
Model PRTL-3000E PRTL-5000E

Rated load 3000kg 5000kg

Output 2.9542mV/V

Weight 8kg
