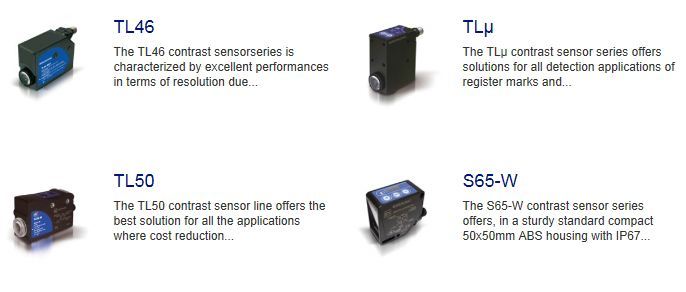

TL46 The TL46 contrast sensorseries is characterized by excellent performances in terms of resolution due... TLµ The TLµ contrast sensor series offers solutions for all detection applications of register marks and... TL50 The TL50 contrast sensor line offers the best solution for all the applications where cost reduction... S65-W The S65-W contrast sensor series offers, in a sturdy standard compact 50x50mm ABS housing with IP67...

Product Detail :

TL 46

Info

The TL46 contrast sensorseries is characterized by excellent performances in terms of resolution due to a RGB LEDs emission, low response time and high switching speed. The sensor, developed in a sturdy metal housing with standard fixing, is available in 3 different version. TL46-W basic version with 2 set push-buttons and 2 LEDs indicator, TL46-WL standard version has set 3 push-buttons, 4 LEDs indicator and bar graph is also available for manual setting of the threshold and TL46-WLF enhanced version presents a 4-digit display for the setting of the most advanced functions, such as dynamic acquisition of the contrast mark. The sensor reaches the maximum market performances at 30kHz switching frequency.

Features & Benefits

  • RGB emission: high detection reliability and resolution
  • Teach-in push-button and bar graph or display 4 digits indicator: fast and easy setting
  • 30KHz switching frequency: precise and repeatability reading
  • Rotatable M12 5-pole connector: adaptability to the mechanical part of the plant

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Packaging lines
  • Paper and Printing machines
  • Automatic filling machines

Models

The product series offers the following models:

Ordering Codes

Description

954601000 TL46-W-815 BASIC 9MM M12 VERT.SPOT
954601010 TL46-W-815L BASIC 9MM M12 HOR.SPOT
954601020 TL46-WL-815 STANDARD 9MM M12 VERT.SPOT
954601030 TL46-WL-815L STANDARD 9MM M12 HOR.SPOT
954601040 TL46-WLF-815 ENH. 9MM M12 VERT.SPOT
954601050 TL46-WLF-815L ENH. 9MM M12 HOR.SPOT

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description

890000194 LENS No.28 glass
95ACC1020 LENS No.9 glass
95ACC1030 LENS No.18 glass
95ACC1050 LENS HI-RES glass
95ACC1100 LENS No.22 glass
95ACC1220 LENS No.40-60 glass
S73030511 LENS No.50 BOC-511 OBJECTIVE NO.50
95ACC2540 LENS No.9 PMMA

TLµ

Info

The TLµ contrast sensor series offers solutions for all detection applications of register marks and other neutral or colored references. The microprocessor-based setting can be either 'Teach-in' using two push-buttons or 'Remote' by cable. The LED emission can be red/green with automatic selection, or white offering the possibility of operating on all contrasts. Models with interchangeable 9mm or 18mm lenses are available. Whereas 22, 28 and 50mm lenses are supplied as accessories. Many different fiber optic models are available. The output is NPN or PNP according to the model, but can always be selected using an internal switch. An analog output proportional to the received light is also present.

Features & Benefits

  • Red/Green or White emission: high detection reliability and resolution
  • Teach-in push-button: fast and easy setting
  • 20KHz switching frequency: precise and repeatability reading
  • Cable or rotatable M12 5-pole connector: adaptability to the mechanical part of the plant

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Packaging lines
  • Paper and Printing machines
  • Automatic filling machines

Models

The product series offers the following models:

Ordering Codes

Description

954151330 TLu-415C 9MM M12CONN.VERSPOT PUNTIFORME
954151340 TLu-417C 9MM M12CONN.VER.SPOT P.AUTOSET
954151350 TLu-445 F.O.M12CONN.VER.SPOT
954151360 TLu-515C 9MM M12CONN.VER.SPOT PUNTIFORME
954151370 TLu-517C 9MM M12CONN.VER.SPOT P.AUTOSET
954151380 TLu-545 F.O.M12CONN.VER.SPOT
954151410 TLu-411C WHITE EM.CONTRAST.9MM NPN CABLE
954151420 TLu-511C WHITE EM.CONTRAST.9MM PNP CABLE
954151440 TLu-541 WHITE EM.CONT.FIBRE PNP CABLE
964401000 TLu-011 COLOR MARK
964401010 TLu-011L 9MM CABLE HOR.SPOT
964401020 TLu-015 9MM M12 CONN.VER.SPOT
964401030 TLu-015L 9M M12 CONN.HOR.SPOT
964401040 TLu-061 18MM CABLE VER.SPOT
964401060 TLu-065 18MM M12 CONN.VER.
964401080 TLu-111 9MM CABLE VER.SPOT
964401090 TLu-111L 9MM CABLE HOR.SPOT
964401100 TLu-115 9MM M12 CONN.VER.SPOT
964401110 TLu-115L 9MM M12 CONN.HOR.SPOT
964401120 TLu-161 18MM CABLE VER. SPOT
964401140 TLu-165 18MM M12 CONN. VER.

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description

890000194 LENS No.28 glass
95ACC1020 LENS No.9 glass
95ACC1030 LENS No.18 glass
95ACC1050 LENS HI-RES glass
95ACC1100 LENS No.22 glass
95ACC1220 LENS No.40-60 glass
S73030511 LENS No.50 BOC-511 OBJECTIVE NO.50
95ACC2540 LENS No.9 PMMA

TL50

Info

The TL50 contrast sensor line offers the best solution for all the applications where cost reduction is requested, without compromising the excellent detection performances. The optimized optics of these sensors, the RGB LED emission with automatic color selection and the very fine resolution, allow the detection of the weakest contrast of colors or grayscale between mark and background, or between different objects or surfaces. The high resolution is not a limit for the detection speed, reaching 33ms response time and 15kHz switching frequency.

Features & Benefits

  • RGB emission: high detection reliability and resolution
  • Teach-in push-button: fast and easy setting
  • 15KHz switching frequency: precise and repeatability reading

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Packaging lines
  • Paper and Printing machines
  • Automatic filling machines

Models

The product series offers the following models:

Ordering Codes

Description

954651000 TL50-W-815 10-20MM,v-SPOT,m12-4, NPN/PNP

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description

890000194 LENS No.28 glass
95ACC1020 LENS No.9 glass
95ACC1030 LENS No.18 glass
95ACC1050 LENS HI-RES glass
95ACC1100 LENS No.22 glass
95ACC1220 LENS No.40-60 glass
S73030511 LENS No.50 BOC-511 OBJECTIVE NO.50
95ACC2540 LENS No.9 PMMA

S65-W

Info

The S65-W contrast sensor series offers, in a sturdy standard compact 50x50mm ABS housing with IP67 mechanical protection, an advanced contrast sensor for the detection of register marks and other neutral or colored targets. The state-of-the-art technology with wide-spectrum white LED emission guarantees the detection of all contrasts. The control panel presents three push-buttons for easy and immediate setting and a 4-digit display that indicates the configuration parameters and the level of received signal without the need of connecting external devices. Models with only one NPN or PNP switching output are available, or with RS485 serial interface for data transmission as well as an analog monitoring output proportional to the received light intensity.

Features & Benefits

  • White emission: high detection reliability and resolution
  • Teach-in push-button and display 4 digits indicator: fast and easy setting
  • 30KHz switching frequency: precise and repeatability reading
  • RS485 serial interface: data transmission and remote setting

Applications

This product series has been developed to satisfy to requirements of the following reference applications:
  • Packaging lines
  • Paper and Printing machines
  • Automatic filling machines

Models

The product series offers the following models:

Ordering Codes

Description

954201000 S65-PA-5-W09-NH CONTRAST NPN M12
954201010 S65-PA-5-W09-NHZ CONTRAST NPN RS485 M12
954201020 S65-PA-5-W09-PH CONTRAST PNP M12
954201030 S65-PA-5-W09-PHZ CONTRAST PNP RS485 M12

Accessories

The following accessories are available to simplify installation and optimize product performances:

Ordering Codes

Description

95ACC1320 ST-504 fixing bracket
95ACC5330 ST-5020 fixing bracket
95ACC5340 ST-5021 fixing bracket
