Product Information :

Name :
Eight conductor Model 830
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. 7 Mercotac Rotary Electrical Connector
Brand :
Mercotac
Model :
830
Product Type :
  1. สินค้า, ผลิตภัณฑ์

Product Detail :

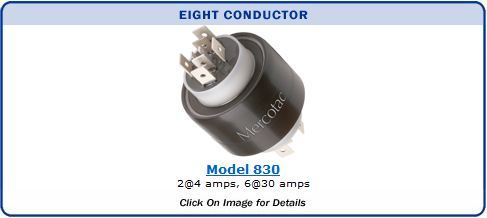

Model 830
Eight Conductors,
2@4amps, 6@30amps

Disconnects included
(4 sm., 12 lg.)
Boot Kit available
Available with stainless steel ball bearing (830-SS)


Model No. Terminals Voltage
AC/DC
Amp
Rating
@240VAC
Max.
Freq.
MHz
Contact
Resistance
Max.
RPM
Temp
Max. F (C) /
Min. F (C)
Rotation
Torque (gm-cm)
Circuit
Separation
830 8 0-250 2@4/6@30 100

<1m

200 140 (60) /-20(-29) 1000

>25M

830-SS 8 0-250 2@4/6@30 100

<1m

200 140 (60) /-20(-29) 1000

>25M

"SS" designator indicates stainless steel ball bearing (recommended for wet or corrosive environments)

Model 830 Accessories
55110
22 - 18 AWG (qty. 4 included)
55253
Shrink Tube (qty. 6 included)
55252
Terminal 16 - 14 AWG
(qty. 6 included)
55251
Terminal 16 - 14 AWG
(qty. 6 included)
57830
Boot Kit for dust or splash protection
IP51


Terminals for other wire gauges available.
(22-18 AWG and 12-10 AWG)


Model 830 Standard Wire Connections

Model 830 Wire Connections With Optional Boot Kit
Model 830 Suggested Mounting Methods
Model 830 is typically mounted by either the black body or the white plastic bushing on either end using a set screw. When mounting horizontally, mount the Mercotac so the body of the connector rotates.

Typical Body Mount Hole Dimensions

MODEL HOLE DIAMETER (Ø) * DEPTH
830, et al 1.772" (45.00) .80" (20)

Typical Bushing Mount Hole Dimensions
830, et al 1.125" (28.57) .40" (10)
*Inch (mm) Tolerance Ø +.001" (+.025)
  -.000" (-.000)












Installation Notes:
  • the up arrow should not point below horizontal
  • do not solder to or bend connector tabs
  • avoid lateral forces and mechanical loads (overly stiff or tight wires)
  • do not rigid mount both ends of connector
  • limit mounting eccentricity (runout / wobble) to .005" (.13mm)
  • provide overload protection within the circuit
  • avoid vibration and bumping motions
