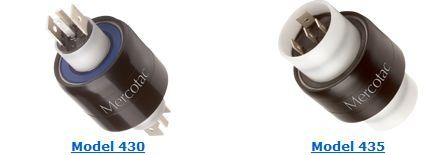

Model 435
Four Conductors,
4@30amps & 500V




Disconnects included
(8 lg.)
Boot Kit available
Available with stainless steel ball bearing (435-SS)

Model No. Terminals Voltage
AC/DC
Amp
Rating
@500VAC
Max.
Freq.
MHz
Contact
Resistance
Max.
RPM
Temp
Max. F (C) /
Min. F (C)
Rotation
Torque (gm-cm)
Circuit
Separation
435 4 0-500 30 100

<1m

300 140 (60) /-20(-29) 850

>50M

435-SS 4 0-500 30 100

<1m

300 140 (60) /-20(-29) 850

>50M

"SS" designator indicates stainless steel ball bearing (recommended for wet or corrosive environments)

Model 435 Accessories
55250
16 - 14 AWG (qty. 4 included)
55251
Terminal 16 - 14 AWG
(qty. 4 included)
57435
Boot Kit for dust or splash protection
IP51

Terminals for other wire gauges available.
(22-18 AWG and 12-10 AWG)

Model 435 Standard Wire Connections

Model 435 Wire Connections With Optional Boot Kit
Model 435 Suggested Mounting Methods
Model 435 is typically mounted by either the black body or the white plastic bushing on either end using a set screw. When mounting horizontally, mount the Mercotac so the body of the connector rotates.

Typical Body Mount Hole Dimensions

MODEL HOLE DIAMETER (Ø) * DEPTH
435, et al 1.772" (45.00) .80" (20)


Typical Bushing Mount Hole Dimensions

435, et al 1.250" (31.75) .80" (20)
*Inch (mm) Tolerance Ø +.001" (+.025)
  -.000" (-.000)











Installation Notes:
  • the up arrow should not point below horizontal
  • do not solder to or bend connector tabs
  • avoid lateral forces and mechanical loads (overly stiff or tight wires)
  • do not rigid mount both ends of connector
  • limit mounting eccentricity (runout / wobble) to .005" (.13mm)
  • provide overload protection within the circuit
  • avoid vibration and bumping motions
