Four conductor Model 430
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. 7 Mercotac Rotary Electrical Connector
Brand :
Mercotac
Model :
430
Product Type :
  1. เครื่องมือ, เครื่องจักรและอุปกรณ์
  2. สินค้า, ผลิตภัณฑ์

Product Detail :

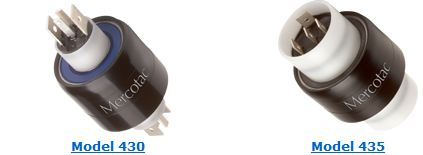

Model 430
Four Conductors,
2@4amps, 2@30amps




Disconnects included
(4 sm., 4 lg.)
Boot Kit available
Available with stainless steel ball bearing (430-SS)
Mercotac model 430 is ideal for heated roller applications, where connecting to senstive thermocouple signals and simultaneously powering the heater are required.

Model No. Terminals Voltage
AC/DC
Amp
Rating
@240VAC
Max.
Freq.
MHz
Contact
Resistance
Max.
RPM
Temp
Max. F (C) /
Min. F (C)
Rotation
Torque (gm-cm)
Circuit
Separation
430 4 0-250 2@4/2@30 100

<1m

1200 140 (60) /-20(-29) 400

>25M

430-SS 4 0-250 2@4/2@30 100

<1m

1200 140 (60) /-20(-29) 400

>25M

"SS" designator indicates stainless steel ball bearing (recommended for wet or corrosive environments)

Model 430 Accessories
50431
Plug Assembly 12 in. wires
14 AWG & 18 AWG
Suitable for up to 20 Amps
50430
Plug Kit - No wires, terminals for wire gauges
20 - 16 AWG & 16 - 14 AWG
Suitable for up to 20 Amps
Also order 5030-T
57430
Boot Kit for dust or splash protection
IP51
55251
Terminal 16 - 14 AWG
(qty. 2 included)
5030-T
Plug Terminal Crimping Tool
For Use With 50430 Kit
55250
16 - 14 AWG (qty. 2 included)

  55110
22 - 18 AWG (qty. 4 included)

Terminals for other wire gauges available.
(22-18 AWG and 12-10 AWG)

Model 430 Standard Wire Connections

Model 430 Wire Connections With Optional Boot
Model 430 Suggested Mounting Methods
Model 430 is typically mounted by either the black body or the white plastic bushing on either end using a set screw. When mounting horizontally, mount the Mercotac so the body of the connector rotates.

Typical Body Mount Hole Dimensions

MODEL HOLE DIAMETER (Ø) * DEPTH
430, et al 1.248" (31.70) .80" (20)


Typical Bushing Mount Hole Dimensions

430, et al .625" (15.88) .40" (10)
With Plug Connector .625" (15.88) 1.40" (36)
*Inch (mm) Tolerance Ø +.001" (+.025)
  -.000" (-.000)











Installation Notes:
  • the up arrow should not point below horizontal
  • do not solder to or bend connector tabs
  • avoid lateral forces and mechanical loads (overly stiff or tight wires)
  • do not rigid mount both ends of connector
  • limit mounting eccentricity (runout / wobble) to .005" (.13mm)
  • provide overload protection within the circuit
  • avoid vibration and bumping motions
