Product Information :

Name :

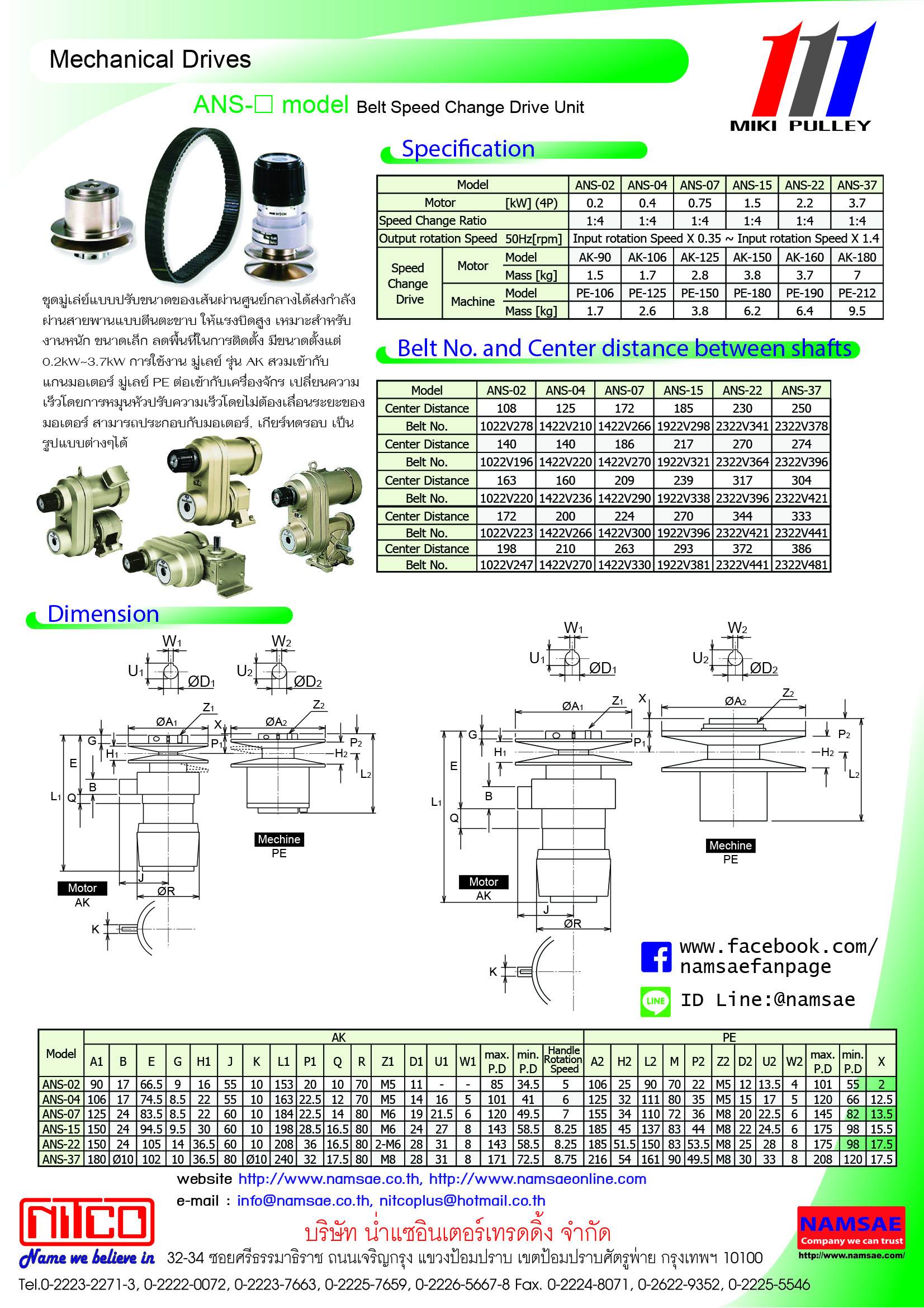

ANS Belt-type Stepless Speed Changer Unit
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. 12 Miki Pulley Belt Speed Change Drive
Brand :
Miki Pulley
Model :
ANS models (AK series + PE series)
Product Type :
  1. เครื่องมือ, เครื่องจักรและอุปกรณ์
  2. สินค้า, ผลิตภัณฑ์
Short Description :
ANS ชุดปรับรอบฉบับต้นตำรับ อันประกอบด้วย มู่เล่ย์ AK, PE และ สายพาน ที่รู้จักกันเป็นวงกว้างในฐานะจุดเริ่มต้นแห่งการปรับรอบ คิดค้นโดย Miki Pulley จากญี่ปุ่น หมุนปรับความเร็วได้ง่ายๆ หายห่วงเรื่องความแม่นยำ มุ่งเน้นการส่งผ่านกำลังชั้นเลิศ นำไปใช้กับงานปรับความเร็วรอบได้ในอุตสาหกรรมทุกประเภท อีกหนึ่งผลิตภัณฑ์คุณภาพจาก NITCO

Product Detail :







ANS เป็นชุดปรับความเร็วรอบ ที่สามารถปรับหรือควบคุมความเร็วรอบได้โดยไม่มีการเปลี่ยนแปลงระยะห่างระหว่างเพลา เนื่องจาก เมื่อมีการปรับความเร็วรอบ มู่เล่ย์ทั้ง 2 ตัว จะปรับเส้นผ่านศูนย์กลาง pitch ทั้ง 2 ด้านของสายพานให้เหมาะสม ชุดปรับรอบ ANS ยี่ห้อ Miki Pulley นี้ มีดีไซน์กะทัดรัด ติดตั้งง่าย และใช้งานได้กับหลากหลายแอพพลิเคชั่น



หลักการของชุดปรับรอบ ANS

การปรับความเร็วรอบสามารถทำได้โดย หมุนแป้นหมุนฝั่งมอเตอร์ เพื่อเปลี่ยนความกว้างของมู่เล่ย์ AK series ส่งผลให้เส้นผ่านศูนย์กลาง pitch ของสายพานที่ติดกับมู่เล่ย์ AK series ฝั่งมอเตอร์เปลี่ยน ทำให้เส้นผ่านศูนย์กลาง pitch ของสายพานที่ติดกับมู่เล่ย์ PE series ฝั่งเครื่องจักร เปลี่ยนตามไปโดยอัตโนมัติ ด้วยกลไลดังกล่าว ทำให้ ANS สามารถช่วยให้เกิดการปรับความเร็วรอบได้อย่างสะดวก กว้างขวางและ เป็นไปตามความต้องการ

โดยพื้นฐานแล้ว ชุดปรับรอบจะใช้ coil spring ในการปรับเส้นผ่านศูนย์กลาง pitch ทั้ง 2 ด้านของสายพานให้เหมาะสม แต่ ชุดปรับรอบ ANS นี้ จะใช้ constant-pressure load disc spring เพื่อปรับเส้นผ่านศูนย์กลาง pitch ทั้ง 2 ด้านของสายพาน ด้วยการใช้ disc spring นี้ จะช่วยเพิ่มประสิทธิภาพของการส่งผ่านกำลังให้สูงขึ้น อีกทั้ง ช่วยให้ การปรับความเร็วรอบ มีเสถียรภาพมากขึ้น



คุณลักษณะของ ชุดปรับรอบ ANS

(Belt-type Stepless Speed Changer Unit, Belt-type Stepless Speed Changer Changing Rotation Speed Freely)

1. ประหยัดพื้นที่ : ชุดปรับรอบ ANS สามารถติดตั้งโดยตรงเข้ากับเครื่องจักรได้เลย จึงเป็นการประหยัดพื้นที่

2. การออกแบบเพื่อประสิทธิภาพใช้งานสูงสุด : การใช้ disc spring เพื่อช่วยเพิ่มประสิทธิภาพของการส่งผ่านกำลังให้สูงขึ้น อีกทั้ง ช่วยให้ การปรับความเร็วรอบ มีเสถียรภาพมากขึ้น



กำลังมอเตอร์ขาออก: 0.2kW to 3.7kW (4 pole)

อัตราทด: 1:4



อีกหนึ่งผลิตภัณฑ์คุณภาพจาก NITCO










ANS units change speeds without changing the distance between shafts by making the belt pitch diameter of one variable-speed pulley track the belt pitch diameter of another variable-speed pulley when its belt pitch diameter is changed. Since speed can be changed without changing the distance between shafts, more compact designs are possible, mounting is simple, and ease of use is exceptional.


ANS principle

Rotate the handle of the speed changer on the motor side to change the width of the speed-change pulley. When you change the pitch diameter of the speed-change belt hanging from it, the pitch diameter of the speed-change pulley on the machinery side tracks it, for a belt-type stepless speed changer that can freely change the rotation speed.

Instead of the coil spring that traditionally tracks the machinery-side pulley, the ANS models use a constant-pressure load disc spring to track the pitch diameter changes of the motor-side pulley. Use of a disc spring increases transmission efficiency and enables stable speed change operation.



ANS Features

(Belt-type Stepless Speed Changer Unit, Belt-type Stepless Speed Changer Changing Rotation Speed Freely)

1. Saving space : The model can be mounted directly to the machine, so you can save space.

2. High efficiency design : The use of a disc spring increases power transmission efficiency.



Motor output: 0.2kW to 3.7kW (4 pole)

Speed change ratio: 1:4



Carefully select for you by NITCO
