E-Catalog > Liquid Filling Machine > C3-R60 TYPE

APPLICATIONS :
For filling fluid liquid, low viscosity/density liquid, medium viscosity/density liquid and liquid containing granule

FEATURES：

◆Self-sucking without hopper.

◆Feeding pump and manual feeding are no more needed, the time of product contacting air will be shortened

◆Types of Pump : Rotary Lobe Pump for C3-R60

◆Volume type filling range : 25cc~5000cc/per filling

◆Weight type filling range : 25g~5000g (including weight of container)

◆Filling amount and filling speed can be set according to the requirements

◆Driven by servo motor and controlled by PLC for high accuracy

◆Liquid might contain max. 10mm granule

◆Weight type filling accuracy : the actual filling accuracy also depends on property of product

◆Volume type filling accuracy : ±2% (but also depends on property of products)Volume type filling accuracy : ±2% (but also depends on property of products)

◆With touchscreen for easy operation

◆Can be set at manual filling or automatic sensor filling

◆Total 99 settings of weight and volume memorized

◆Machine body made of SS304, parts contacting with filling products made of SS316

◆High temperature resistible : max 90℃

◆Filling speed also depends on the viscosity, density and property of filling products

◆Air-Compressor : 2HP (prepared by user)

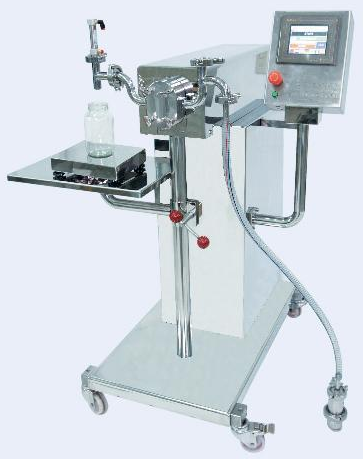

EXAMPLE:
