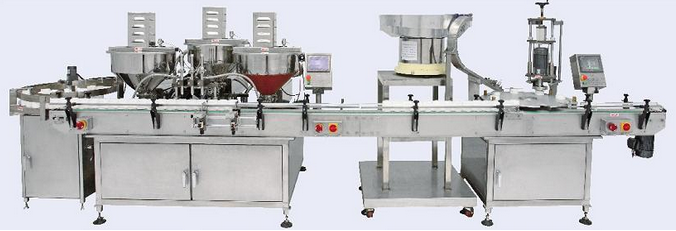

E-Catalog > Liquid Filling Machine > AUTOMATIC FILLING-CAPPING MACHINE

APPLICATIONS :

Examples of application : Juice, Milk, Soya Milk, Soya Sauce, Thick Soya Sauce, Liquid Egg, Edible Oils, Honey, Puree, Syrup, Jam (High Temp.), Ketchup, Chili Sauce, Pasta Sauce, Facial Toner, Lotion, Shampoo, Conductive Silver Paste, Aluminum Conductor Paste...etc.

FEATURES :

◆Mechanical Function : Automatic filling and automatic capping

◆Mechanical Working Process:
Automatic bottle in → Automatic filling → Automatic placing cap → Automatic capping → Bottle out

◆Filling Accuracy : ±2% (Also depends on specific gravity, concentration and evenness of products)

◆Filling Capacity : for example, its around 39bottles/min for cream of 250cc/bott

◆Bottle Size : Wide mouth bottle between Ø50mm and Ø100mm (one size applicable only)

◆Bottle Height : Between 50mm and 150mm (one height applicable only)

◆Types of Cap : Screw Cap or Twist-Off Cap

◆Dimension of (In-Feed or Out-Feed) Turning Table : Ø800mm x H1000mm, 108kg

◆Air Consumption : 6kg/㎝², air-compressor prepared by users.

◆Spiral pump also applicable to high viscosity/density liquid, semi-solid liquid and liquid containing granules

◆Hopper Size : 50 Liter

◆Resists high temperature liquids up to 150℃

◆Automatically shut-down while no bottle or no cap to be detected by electric eye

◆PLC system for easy opeartion and simple maintenance

◆Torsion of Capper is adjustable

EXAMPLE
