E-Catalog > Rotary Joint > Rotary Joint Series 3500

PAGE VIEW : 10,398

Product Information :

Name :
Rotary Joint Series 3500
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Rotary Joint
Brand :
KJC
Model :
Series 3500
Product Type :
  1. เครื่องมือ, เครื่องจักรและอุปกรณ์
  2. สินค้า, ผลิตภัณฑ์
Short Description :
The Series 3500 rotary joint uses two carbon bearings and is self-supporting. Using alloyed steel, it is corrosion resistant and suitable for use in high heat and pressure settings. In particular, its reduced length and weight relieves the load on the carbon bearings and increases its durability.

Product Detail :








The Series 3500 rotary joint uses two carbon bearings and is self-supporting. Using alloyed steel, it is corrosion resistant and suitable for use in high heat and pressure settings. In particular, its reduced length and weight relieves the load on the carbon bearings and increases its durability.








Max pressure 15kgf/งฒG

Max speed 300rpm

Max temperature 220กฦC

Media Steam, Hot oil, Water, Hot water, Oil

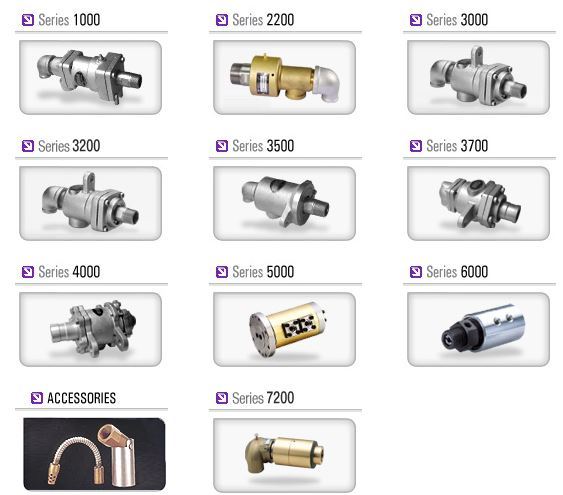

Other Product In Group "Rotary Joint (10)"
