E-Catalog > Unwind/Rewind Stands > Shifta-Roll Positioning Stands

PAGE VIEW : 10,882

Product Information :

Name :
Shifta-Roll Positioning Stands
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Unwind/Rewind Stands
Brand :
Fife
Model :
Shifta-Roll Positioning Stands
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
Unwind/Rewind Stands Fife developed the Shifta-Roll stand to accommodate or replace many existing roll stands that would not lend themselves to the application of automatic guiding equipment. All Fife Shifta-Roll stands are easily adaptable to existing or new machinery to accurately position the unwind or rewind roll. Unwind guiding ensures the correct edge alignment to a predetermined guide point. Depending on the sensor selected, unwind guiding sometimes requires a direct mounted or slave idler or idlers for proper operation. The idlers are required when using a sensor with a narrow gap or a line guide sensor. The idler maintains a constant plane for the material being guided. The unwind stand is generally positioned so there is less than one web width to the first fixed idler in the machine. Basic operation of an unwind guide (as illustrated in figure 1): The operator positions a roll of material on the unwind stand. The operator then positions the sensor where he wishes the edge of the web to be positioned. In automatic mode, the unwind stand then shifts laterally, keeping the edge of the web at the guide point of the sensor. The ideal location for the sensor is as close as possible to the shifting unwind. This will give the best dynamic performance and accuracy. Systems are available that allow the sensor to be located after the first fixed idler. These systems will guide the web, but at a reduced performance. Rewind guiding is not truly lateral control of a web. Rewind guiding is actually a chasing control system. The rewinding roll is positioned to align the edge of the rewind roll to the edge of the approaching web. The sensor is located just ahead of the last fixed idler in the machine and is typically attached to the rewind stand with a mechanical arm. The sensor chases the edge of the web and, as a result, the rewind is laterally positioned directly downstream of the incoming web. Systems are available that do not require the sensor to be mounted to an arm attached to the rewind stand. The sensor is electronically connected to the rewind stand. The rewind stand is generally positioned so there is approximately one web width from the last fixed idler. Basic operation of a rewind guide (as illustrated in figure 2): The operator either manually or automatically positions the sensor at the edge of the web being chased. The rewind control system then causes the rewind stand to shift laterally as the web tracks laterally, resulting in a roll of material with a straight edge.In rewind guiding, if the sensor is located downstream of the last fixed idler or the web does not have sufficient frictional engagement with the last fixed idler, a roll with a ragged edge will be wound. Another problem often seen in rewound rolls are telescoped wraps. The guiding system is often blamed for this defect, when in reality, the roll was not wound with sufficient tension to prevent lateral slippage of one or more layers in the wound roll. This defect often occurs many wraps inside of the wrap being applied, during winding or up to days after the roll is removed.

Product Detail :



Unwind/Rewind Stands





Fife developed the Shifta-Roll stand to accommodate or replace many existing roll stands that would not lend themselves to the application of automatic guiding equipment. All Fife Shifta-Roll stands are easily adaptable to existing or new machinery to accurately position the unwind or rewind roll.

Unwind guiding ensures the correct edge alignment to a predetermined guide point. Depending on the sensor selected, unwind guiding sometimes requires a direct mounted or slave idler or idlers for proper operation. The idlers are required when using a sensor with a narrow gap or a line guide sensor. The idler maintains a constant plane for the material being guided. The unwind stand is generally positioned so there is less than one web width to the first fixed idler in the machine.

Basic operation of an unwind guide (as illustrated in figure 1): The operator positions a roll of material on the unwind stand. The operator then positions the sensor where he wishes the edge of the web to be positioned. In automatic mode, the unwind stand then shifts laterally, keeping the edge of the web at the guide point of the sensor. The ideal location for the sensor is as close as possible to the shifting unwind. This will give the best dynamic performance and accuracy. Systems are available that allow the sensor to be located after the first fixed idler. These systems will guide the web, but at a reduced performance.

Rewind guiding is not truly lateral control of a web. Rewind guiding is actually a chasing control system. The rewinding roll is positioned to align the edge of the rewind roll to the edge of the approaching web. The sensor is located just ahead of the last fixed idler in the machine and is typically attached to the rewind stand with a mechanical arm. The sensor chases the edge of the web and, as a result, the rewind is laterally positioned directly downstream of the incoming web. Systems are available that do not require the sensor to be mounted to an arm attached to the rewind stand. The sensor is electronically connected to the rewind stand. The rewind stand is generally positioned so there is approximately one web width from the last fixed idler.

Basic operation of a rewind guide (as illustrated in figure 2): The operator either manually or automatically positions the sensor at the edge of the web being chased. The rewind control system then causes the rewind stand to shift laterally as the web tracks laterally, resulting in a roll of material with a straight edge.In rewind guiding, if the sensor is located downstream of the last fixed idler or the web does not have sufficient frictional engagement with the last fixed idler, a roll with a ragged edge will be wound.

Another problem often seen in rewound rolls are telescoped wraps. The guiding system is often blamed for this defect, when in reality, the roll was not wound with sufficient tension to prevent lateral slippage of one or more layers in the wound roll. This defect often occurs many wraps inside of the wrap being applied, during winding or up to days after the roll is removed.




Shifta-Roll Positioning Stands provide accurate edge alignment for Unwind and Rewind guiding. Powered by electromechanical actuators or hydraulic cylinders, these stands were developed to accommodate or replace existing roll stands that would not otherwise lend themselves to automatic guiding applications.

Capable of handling loads up to 5,200 lbs (2359 Kg), these durable stands feature two raceway bases, hardened racerod supports, and carrier blocks with ball bushings or Teflon bushings. Available with or without uprights, or as raceway base assemblies, the Shifta-Roll Positioning Stand easily adapts to new or existing machinery.

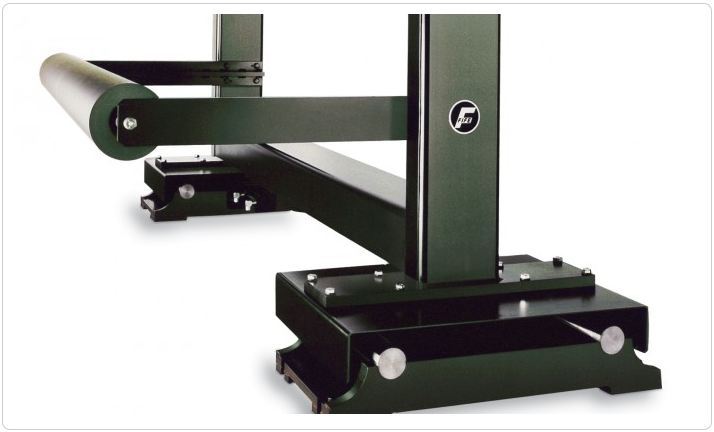

Fife Shifta-Roll stands consist of two raceway bases which have carrier blocks with ball bushings or Teflon bushings riding on race-rods. The Shifta-Roll stand can be supplied as bases only, bases with a crossmember connecting the carrier blocks, or bases with a crossmember and uprights for mounting the customer roll shaft chucks. A 2-high, light-duty version is available which includes roll shafts and drag brakes. A hydraulic cylinder or electromechanical actuator provides the lateral force for movement.

Shifta-Roll stands are designed such that the mechanical stiffness gives a mechanical natural frequency approximately 2-3 times the natural frequency of the control system. The crossmember, uprights, and actuator mounting are checked for stiffness. If a hydraulic cylinder is used, the hydraulic natural frequency is designed such that it is high enough to avoid interference with the control system natural frequency. If the mechanical or hydraulic natural frequency are not high enough, then a resonance condition may exist that does not allow the control system gain to be high enough to give good performance. All Fife Shifta-Roll stands are designed to avoid this condition.



Key Features:

  • Standard widths available to suit webs from 126 mm (5 inches) to 228 mm (9 inches)
    Reliable, accurate edge alignment for unwind and rewind guiding
    Electromechanical or hydraulic system operation
    Fast, accurate web positioning
    Easily adapts to new or existing machinery
    Durable construction for low maintenance and long-lasting reliability
    Compatible with all standard Fife sensors and web guide controllers
    Optional Servo-Center available to speed setup and threading
