Product Detail :

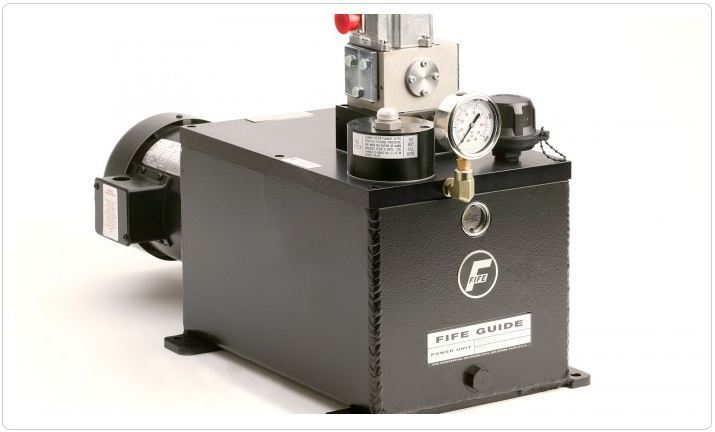

Specifically designed for web guiding, Electrohydraulic Power Units are ideal for use with Fife’s full line of electronic sensors and signal controllers. These power units incorporate our exclusive 2-stage, high-resolution, spool-type servo valve to provide precise, proportional control regardless of material or load requirements.
Equipped with their own hydraulic reservoir, pump, filter, and relief valve, all standard models can be used for single, double, or triple guiding installations. By utilizing one or more servo valves, a single power unit simultaneously, yet independently, is capable of handling up to three separate guiding operations. For more than three, a combination of power units may be used
Key Features:
-
Provides superior response and control for any web guiding application
Exclusive spool-type servo valve for unexcelled sensitivity and stability
For use with Fife electronic sensors and signal controllers
Compact, modular construction minimizes exterior tubing and provides maximum ease of servicing
Totally enclosed, or explosion proof motors are both available
Additional hydraulic ports are supplied on all units for use with optional Fife equipment
Units are furnished complete with hydraulic fittings and cables. Electrical cables are multiconductor shielded cables. They are encased in polyvinyl chloride to withstand acids, alkalis, oil, flame, moisture, solvents, and fungus
Specifications:
-
MODEL & NUMBER OF SERVO VALVES MOTOR RATING RESERVOIR CAPACITY HYDRAULIC PUMP OPERATING PRESSURE PRESSURE AT CYLINDER kw / HP l / qts l/min / GPM bar / psi bar / psi E25B-1 0.19 6.6 3 20.7 200 0.25 7 0.8 300 13.8 E50B-1 0.37 13.3 6.0 22.4 215 0.5 14 1.6 325 14.8 E50B-2 0.37 13.3 6.0 22.4 215 0.5 14 1.6 325 14.8 E100B-1 0.75 20 8.7 36.2 350 1 18.9 2.3 525 24.1 E300B-1 2.24 56.8 18.2 60.3 580 3 60 4.8 875 40.0 MODEL CYLINDER THRUST AND SPEED RELATIONS 51 mm/sec 2 inch/sec 38 mm/sec 1.5 inch/sec 25 mm/sec 1 inch/sec 15 mm/sec 0.6 inch/sec E25B-1 38 mm bore 1.5 inch bore 51 mm bore 2 inch bore 1,299 N 191 lbf 2,095 N 471 lbf E50B-1 51 mm bore 2 inch bore 64 mm bore 2.5 inch bore 83 mm bore 3.25 inch bore 2,251 N 506 lbf 3,941 N 886 lbf 6,512 N 1,464 lbf E50B-2 38 mm bore 1.5 inch bore 51 mm bore 2 inch bore 64 mm bore 2.5 inch bore 1,397 N 314 lbf 2,251 N 506 lbf 3,941 N 886 lbf E100B-1 64 mm bore 2.5 inch bore 83 mm bore 3.25 inch bore 102 mm bore 4 inch bore 6,419 N 1,443 lbf 10,605 N 2,384 lbf 15,818 N 3556 lbf E300B-1 83 mm bore 3.25 inch bore 102 mm bore 4 inch bore 127 mm bore 5 inch bore 152 mm bore 6 inch bore 17,570 N 3,950 lbf 26,213 N 5,893 lbf 42,570 N 9,570 lbf 60,273 N 13,550 lbf
