E-Catalog > Magnetic Particle Clutches and Brakes > 90 VDC Power Supply for Clutches and Brakes

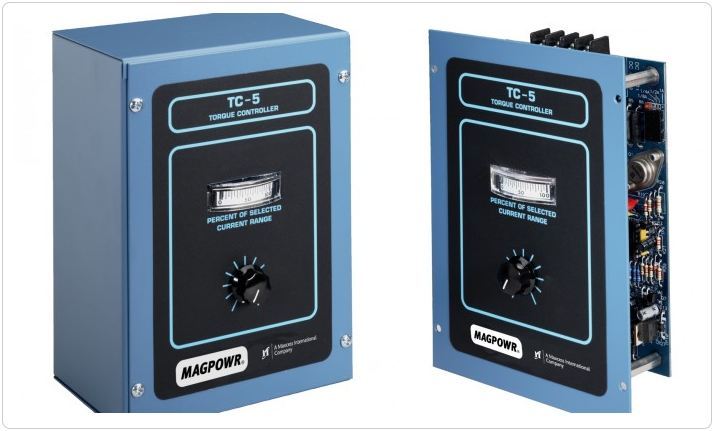

Dependable current-regulated power supplies are imperative for the proper operation of all clutches and brakes, and MAGPOWR’s are no different. The MAGPOWR TC-5 is a solid state current regulated 90 VDC power supply. It has four current ranges of 1/8, 1/4, 1/2 and 1 amp, selected by a simple jumper on the circuit board. This unit also includes reverse current circuitry as a standard feature, thus allowing greater controllability in the lowest torque range of the clutch or brake being operated.
The TC-5 is easy to work with, as the front panel meter indicates the current output and automatically reads full scale for each current range selected. The operator controls the output by rotating the front panel potentiometer.
