BAUMANN MINI FLEX The ZG and LM models are available. The allowable torque is relatively low, yet it has an excellent flexibility. Especially for the LM model full-length long type (LM-1 type), maximum angular misalignment 14deg. is allowed. The hub and coil spring of ZG model are made of zinc alloy and spring steel. Those of LM model are made of aluminum alloy and stainless steel. It is selectable according to the use environment.

BAUMANN FLEX MM Model By applying a trilaminar structure to the coil spring part, high torque transmission with compact body is possible. The MM-K type uses material corresponding to S35C for the hub and piano wire for the coil spring. The MM-K-S type uses stainless steel for the hub and coil spring. It is selectable according to the use environment.

HELI-CAL A Model It is an integral-structured metal coupling with a single spiral slit in the round material. A perfect integrated construction eliminates backlash. Maximum parallel offset 0.25mm and maximum angular misalignment 5deg. are allowed. The high-strength aluminum alloy material and alumite treated surface ensure a high-corrosion resistance. Two fastening methods can be selected, the set screw method (ARM model) and clamp method (ACRM model).

CENTA FLEX A Model Motive power is transmitted though a high elastic rubber. It is excellent in absorbing vibrations and shocks. Noise of machinery is also reduced. The rubber part is composed of a polygon rubber and aluminum insert inserted at the top, and each part is tightly attached by vulcanizing. Power transmission is accomplished by fixing the rubber body in the hub and flange hub in a radial direction and axial direction respectively by bolts. Especially for a radial directional coupling, a precompressed construction of deformed rubber body enables a power transmission excellent in flexibility and absorbing vibrations and shocks. Rubber parts are available in two types, bolt mounted type (O0) and bayonet mounted type (S0).

CENTA FLEX H Model Motive power is transmitted through a polyester resin (Hytrel) that has elasticity like that of rubber. It is excellent in absorbing vibrations and shocks. It also excels in resistance to heat, low temperature and oil. Input and output can be connected and disconnected easily merely by moving axially. By using a unique claming mechanism (CENTA-LOCK), mounting in a spline shaft is possible. Hub and spline shafts are completely fixed by using a clamping hub of the CENTA-LOCK mechanism. No fretting wear is caused. (Clamping hub of the CENTA-LOC mechanism is available by special order.)

CENTA FLEX X Model High-quality special plastic material (Zeitel) is used for the cushioning material. It is hard in a torsional direction and has excellent flexibility in bending and axial directions. The O2 type consisting of an element (cushioning material), cylindrical hub, flange hub and fixing bolts and OG type with two elements connected by a floating shaft are available. The OG type can be detached without moving the drive by removing axial bolts.

Limit switch for elevator DI-101 enables elevator car not to exceed the top floor or the ground floor automatically and reduce the speed or stop operation toward that direction. As a limit switch that limits the location of elevator car, it is a detection switch converting mechanical signal to electric signal. If contact of switch touches the part to be detected in elevator control switch, this elevator limit switch ? mechanic sensor- makes the point of contact open and close by moving contactor.

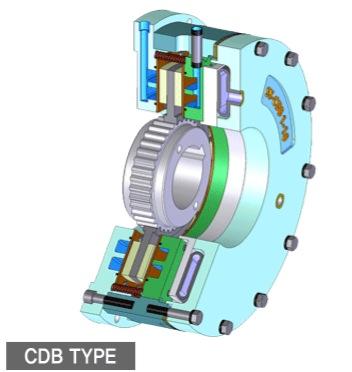

COPPER & WATER COOLING DISC BRAKE.
